Waveshare 4inch (720x720) IPS Capacitive Touch Display

Waveshare 4inch (720x720) IPS Capacitive Touch Display

In stock

$41.00 AUD
$41.00 AUD
Sale Sold out
Shipping calculated at checkout.
4inch IPS Capacitive Touch Display, 720×720 Pixels, RGB Communication Interface, Compatible With Luckfox Pico Ultra Development Board

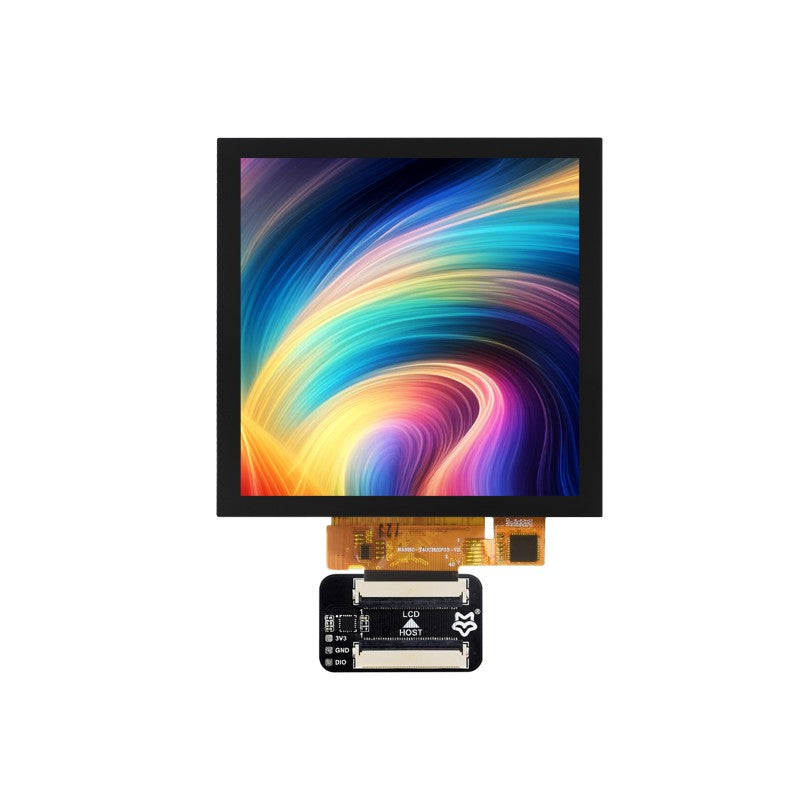

LF40 720720 ARK, front view LF40 720720 ARK, features

Product Specifications

Size 4" Resolution 720×720
Display Panel IPS Viewing Angle 170°
Touch Type Capacitive Touch Chip GT911
Brightness 400cd/m² Contrast ratio 1000:1
Outline Dimension 84.0×84.0mm (H×V) Display area 71.93×71.93mm (H×V)
Pixel pitch 0.0999×0.0999mm (H×V) Operation temperature -20~70°C
Communication Interface RGB666 Display colour gamut 68% NTSC

Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

LF40 720720 ARK, capacitive touch

Usage example

* for reference only, the Luckfox Pico Ultra W is NOT included

LF40 720720 ARK, usage example

Outline dimensions

LF40 720720 ARK, dimensions

Resources & Services


Wiki: https://wiki.luckfox.com/Luckfox-Pico-Ultra/RGB-Screen/

Weight: 0.045 kg

LF40-720720-ARK ×1

LF40 720720 ARK
