Luckfox Pico Ultra ARM + RISC-V SBC, Optional Wi-Fi & PoE PRE-ORDER

Luckfox Pico Ultra ARM + RISC-V SBC, Optional Wi-Fi & PoE PRE-ORDER

Regular price $27.95 AUD
Regular price $23.95 AUD Sale price $27.95 AUD
Sale Sold out
Shipping calculated at checkout.
Variant

Overview

Luckfox Pico Ultra is a cost-effective Linux micro development board, based on the Rockchip RV1106G3 chip to provide a simple and efficient development platform for developers; Supports a variety of interfaces including MIPI CSI, RGB LED, GPIO, UART, SPI, I2C, USB, etc., which is convenient for developing and debugging quickly.

Over the non-Ultra models, this adds:

  • USB Type-A connector
  • Onboard microphone
  • Speaker connection
  • RGB LCD connection
  • 8GB eMMC onboard
  • Optional WiFi + BT
  • Optional PoE via HAT

Specifications

  • Processor: Rockchip RV1106G3
  • Architecture: Cortex-A7
  • NPU: 0.5 TOPS
  • ISP: 5M @ 30fps
  • RAM: 256MB DDR3L
  • Camera: MIPI CSI 2-lane
  • Audio In: Onboard
  • Audio Out: MX1.25 2P Connector (Supports 8Ω 1W Speaker)
  • Display: RGB LCD Interface
  • USB: 2.0 Host/Device
  • GPIO: 30 Pins
  • Ethernet: 10/100 Controller & PHY with RJ45 Interface
  • RTC: 2-pin JST Connection for RTC Battery
  • WiFi + BT: Optional 2.4G WiFi 6, BT5.2/BLE
  • PoE: Optional 80.3af via HAT
  • Storage: 8GB eMMC On-board

Wifi Variants come with 1x IPX 2.4G 2DB antenna.

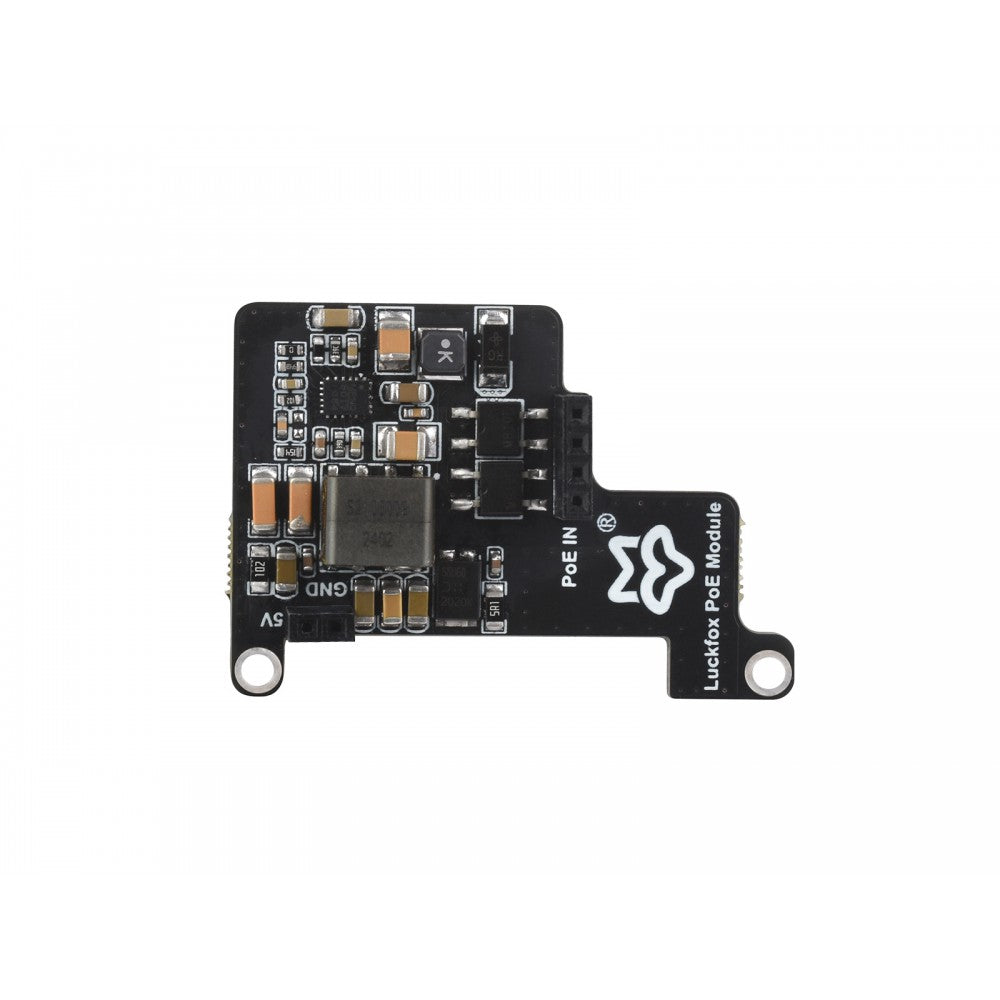

PoE Kit comes with Pico Ultra, PoE module, and screw & stand-off pack.

Note: No SD card slot.




  1. USB Type-C Connector: For power supply and program burning.
  2. User LED: For indicating system operation status in the default image, programmable indicator.
  3. BOOT Button: Press it when powering on or resetting to enter download mode.
  4. RESET Button.
  5. GPIO Header.
  6. On-board Microphone.
  7. Antenna Connector.
  8. Wi-Fi / Bluetooth Module: 2.4GHz Wi-Fi 6, BT5.2/BLE Bluetooth.
  9. USB-A Interface: Switching with USB Type-C by chip, enabled automatically for USB communication when USB-C is not connected.
  10. RJ45 100Mbps Ethernet Port.
  11. Speaker Header: MX1.25 2P connector, supports 8Ω 1W speaker.
  12. RGB LCD Interface.
  13. CSI Camera Interface: MIPI CSI 2-Lane.
  14. RV1106G3: Vision Processor SoC with built-in ARM Cortex-A7 Core.
  15. KLM8G1GETF-B041: 8GB eMMC.
  16. RTC Battery Connector.
  17. PoE Module Header.
  18. PoE Module / External Power Supply: Header for connecting external 5V power supply or PoE module power supply.

Wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-quick-start
