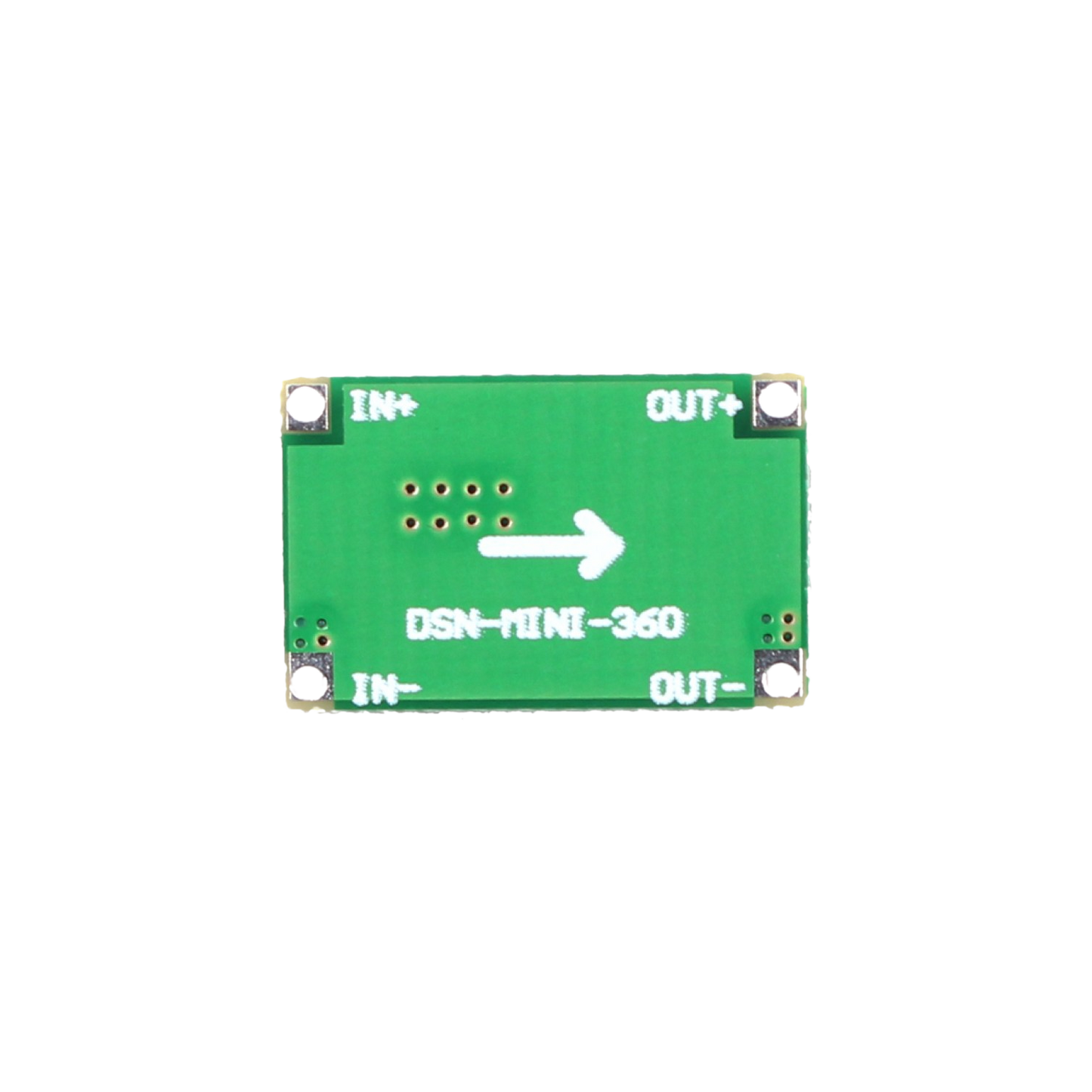

Mini-360 DC Buck Converter

Overview

The infamous 'mini 360' as seen... everywhere. This step-down module is perfect for lower power application, especially those that are fixed voltage like the LiPo Charge Module we have.

Long story short; put larger voltage in one end, lower voltage will come out the other end. Does not work in reverse! Turn the pot until you get the desired output voltage.

Specifications

• Type: Non-isolated buck
• Rectification: Synchronous
• Input Voltage: 4.75V - 23V
• Output Voltage: 1.0V - 17V
• Output Current (Maximum): 3A
• Output Current (Continuous): 1.8A
• Conversion Efficiency: Up to 96%
• Switching Frequency: 340KHz
• Output Ripple: 30mV (no-load)
• Load Regulation: 0.5%
• Voltage Regulation: 2.5%
• Working Temperature: -40℃ to +85℃
• Dimensions: 17mm L * 11mm W * 3.8mm W
