LiPo Charger Module (Basic)

LiPo Charger Module (Basic)

45 in stock

Regular price $0.95 AUD
Regular price Sale price $0.95 AUD
Sale Sold out
Shipping calculated at checkout.

Overview

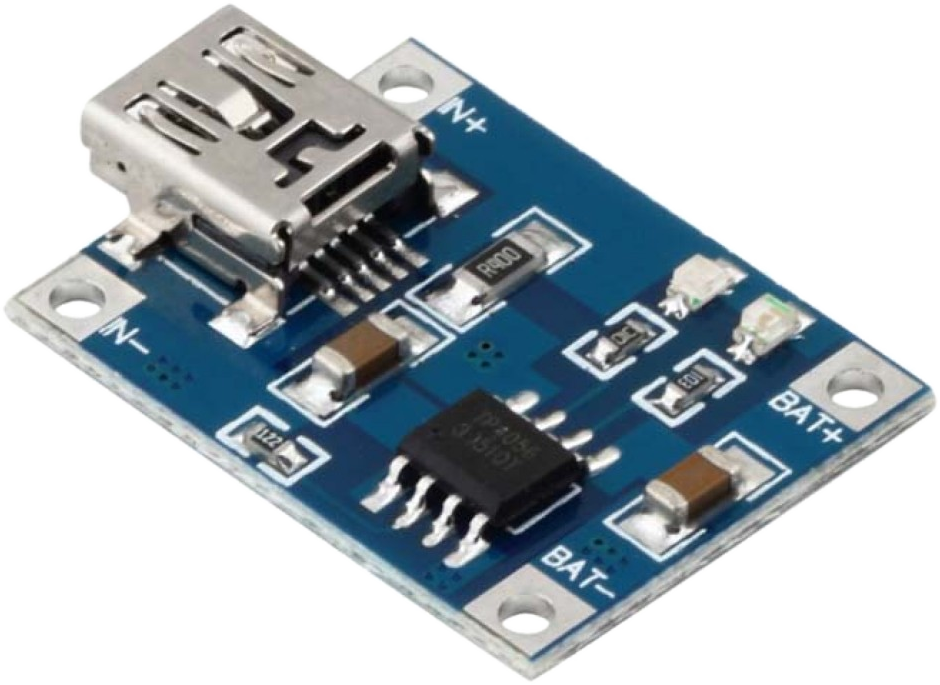

This module is based around the TP4056  and made for charging lithium polymer batteries using the constant-current/constant-voltage (CC/CV) charging method.

Does not include discharge protection such as a DW01.

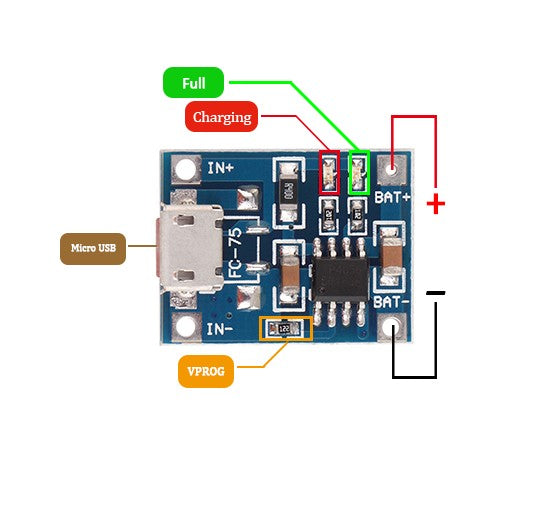

The PCB features a Mini USB port so you can directly connect to the computer USB port for battery charging. There are also direct IN +/- pads on the PCB to solder or wire directly to a power supply.

The charging current can be adjusted by changing the on-board “VPROG” resistors:

VPROG

30 kOhm
20 kOhm
10 kOhm
5 kOhm
4 kOhm
3 kOhm
2 kOhm
1.66 kOhm
1.5 kOhm
1.33 kOhm
1.2 kOhm

IBAT

50 mA
70 mA
130 mA
250 mA
300 mA
400 mA
580 mA
690 mA
780 mA
900 mA
1,000 (default, mounted on PCB)



Chip Datasheet: https://dlnmh9ip6v2uc.cloudfront.net/datasheets/Prototyping/TP4056.pdf

Features

  • Chipset: TP4056
  • Trickle Charge Threshold: 2.9V
  • Input Voltage: 4.5V~5.5V
  • Fully Charged Voltage: 4.2V
  • Charging Current: 1A, adjustable (see above)
  • Max Discharge: 1.2A peak
  • Working Temperature: -10℃ ~ 85℃
  • Charging Method: Linear charging 1%
  • Charging Precision: 1.5%
  • Charging Indicator: Red LED for charging, green LED fully charged
  • Interface: Mini USB
  •

    Notes:

    • Does not come with Mini USB cable. Get one here.
    • For single cell batteries only.
    • Does not feature discharge protection.
    • Can theoretically support up to 8V input, but this voids warranty.
    • Charging and discharging at the same time is untested.
