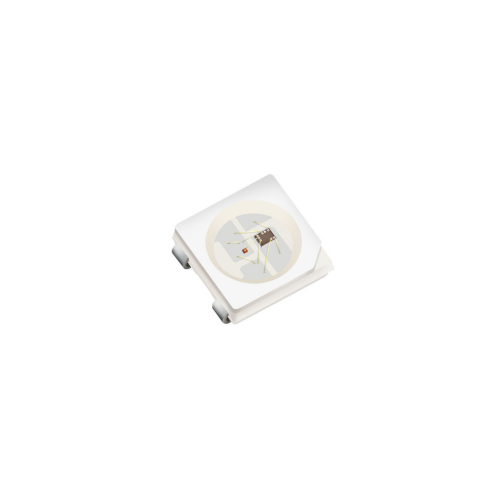

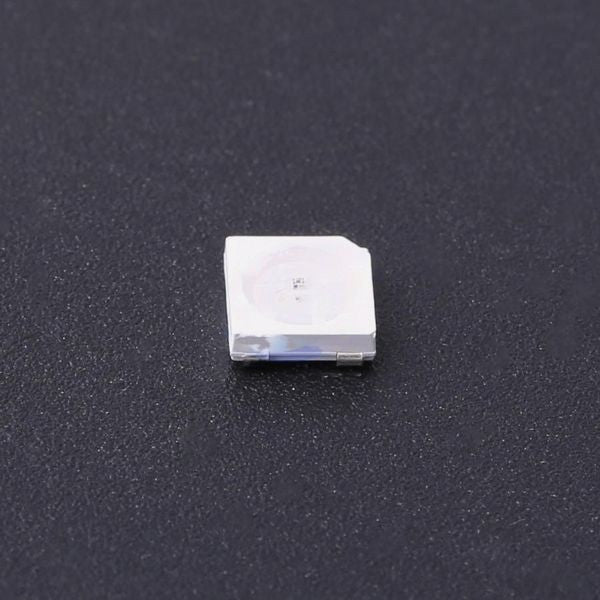

Xinglight RGBC SMD LEDs (WS2812B Compatible)

Name: Xinglight RGBC SMD LEDs (WS2812B Compatible)
Brand: Generic
SKU: XL-5050RGBC-WS2812B-1
Price: 2.08 AUD
Availability: InStock

In stock

$2.08 AUD

Sale Sold out

Shipping calculated at checkout.

Quantity 1 6 12 24 48

Quantity

This intelligent LED with inbuilt control chip offers advanced single-wire transmission for RGB LED applications, great for use in Arduino and AVR projects!

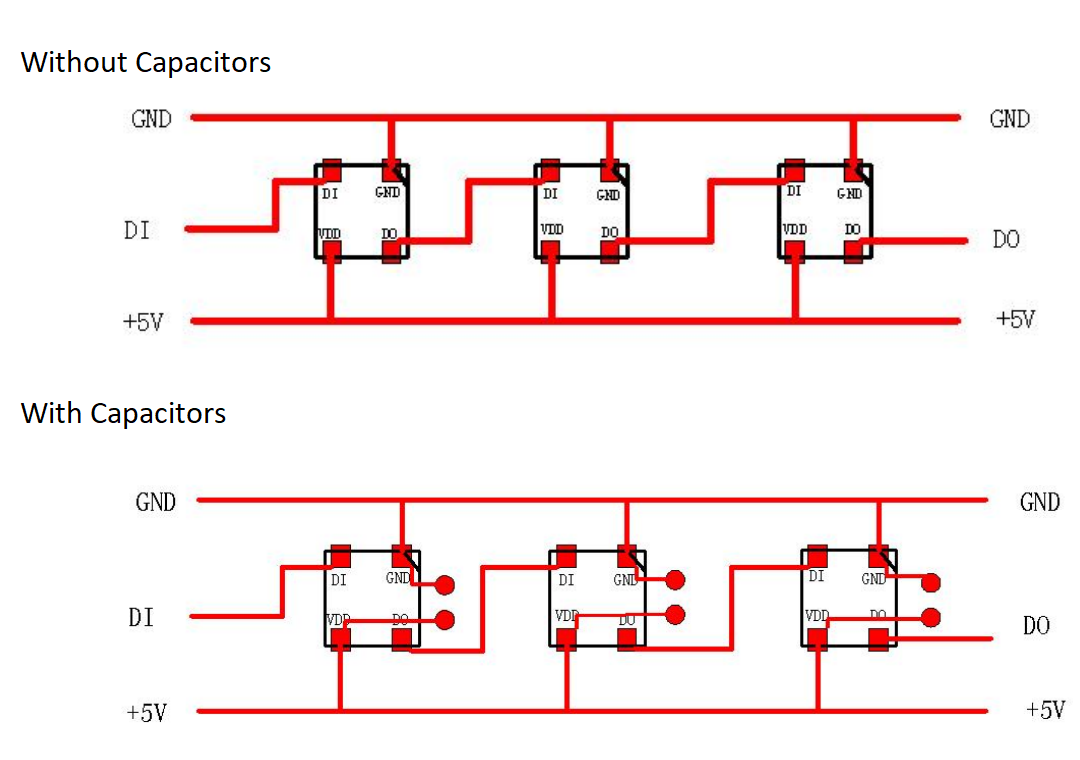

Whilst not exactly identical, this RGB LED module is usually a suitable drop-in replacement for the WS2812B, and can be used with or without decoupling capacitors, however, for high brightness or fast transitions, they are recommended.

Key Features

Three-channel LED driver with integrated control functionality
Single-wire data transmission using zero-return protocol
Built-in current control with 12mA output for RGB ports
Compatible with standard SMD5050 LED components
Comprehensive internal modules for power management, signal decoding, and data regeneration
Automatic data reshaping capability for reliable cascaded connections
Pixel-level control - each component functions as an individual pixel

Perfect for LED strip lighting projects, digital displays, and programmable lighting installations where precise RGB control is required. Each chip integrates both control and luminous functions, making it an ideal choice for smart lighting applications.

NOTE: These are individual LEDs, cut to quantity from a tape, meant for SMD use. Not an "RGB strip" ready to go. For higher quantities please send an email. For ready-to-use RGB products please see

https://shop.plati.ma/products/ws2812-rgb-led-ring

https://shop.plati.ma/products/platima-8x8-ws2812b-mcu-soc-array-leds-and-components-no-chip-v0-1

Specifications
