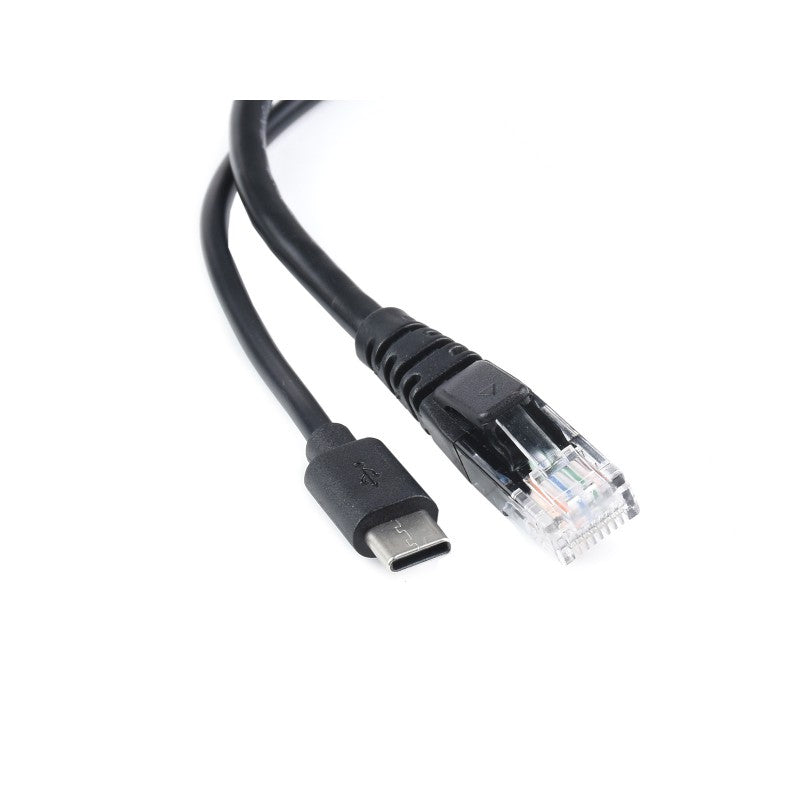

USB Type-C PoE Splitter (Gigabit, 5V 2.5A)

USB Type-C PoE Splitter (Gigabit, 5V 2.5A)

In stock

$26.95 AUD
$26.95 AUD
Sale Sold out
Shipping calculated at checkout.

Features

  • Incorporates SD4950 chip, high-efficiency, high-safety, stable-performance

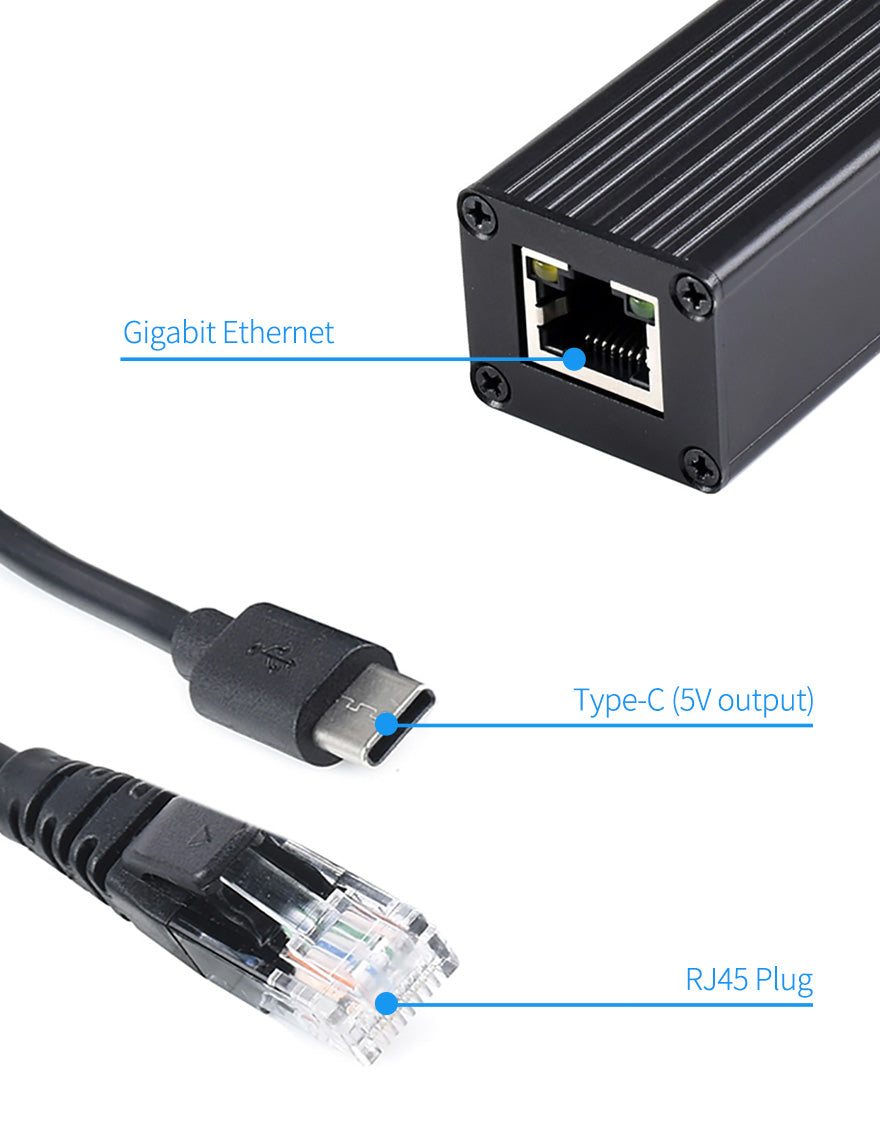

  • 10/100/1000Mbps auto-negotiation Ethernet port
  • 802.3af/at-compliant PoE (Power over Ethernet) standard
  • Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device

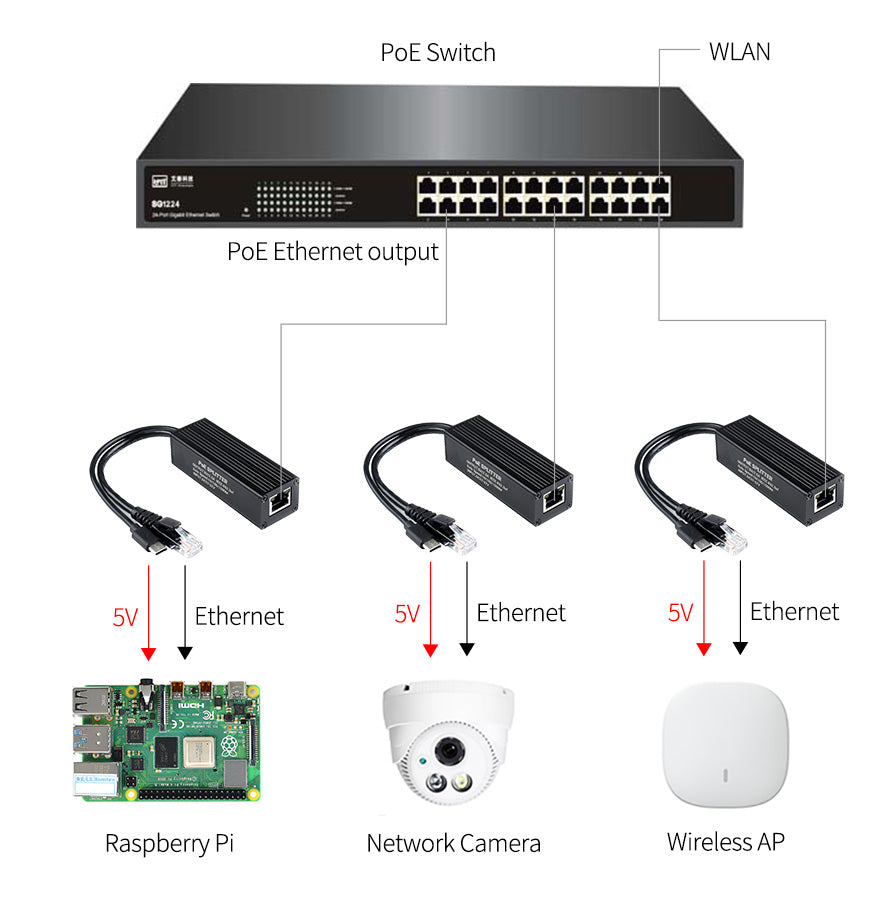

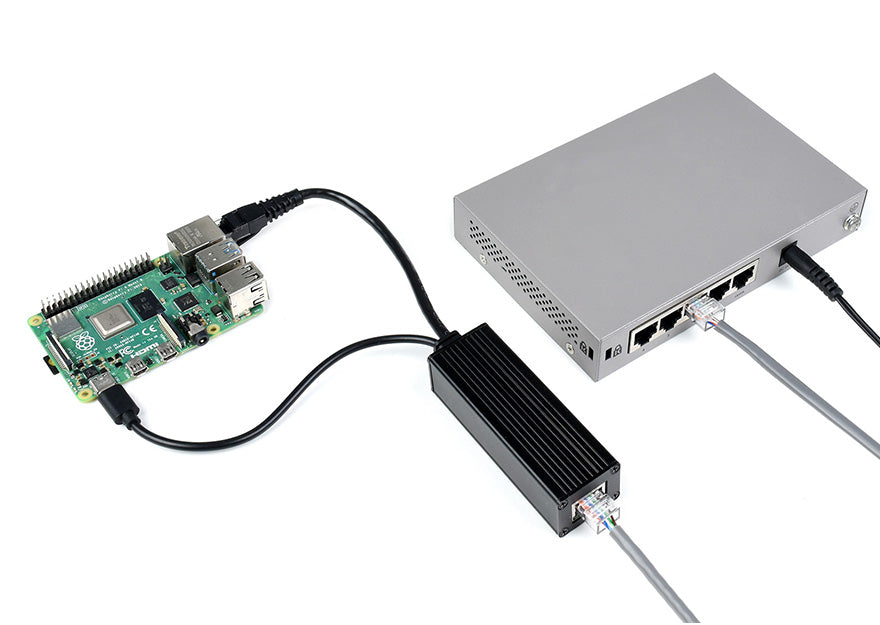

  • 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices

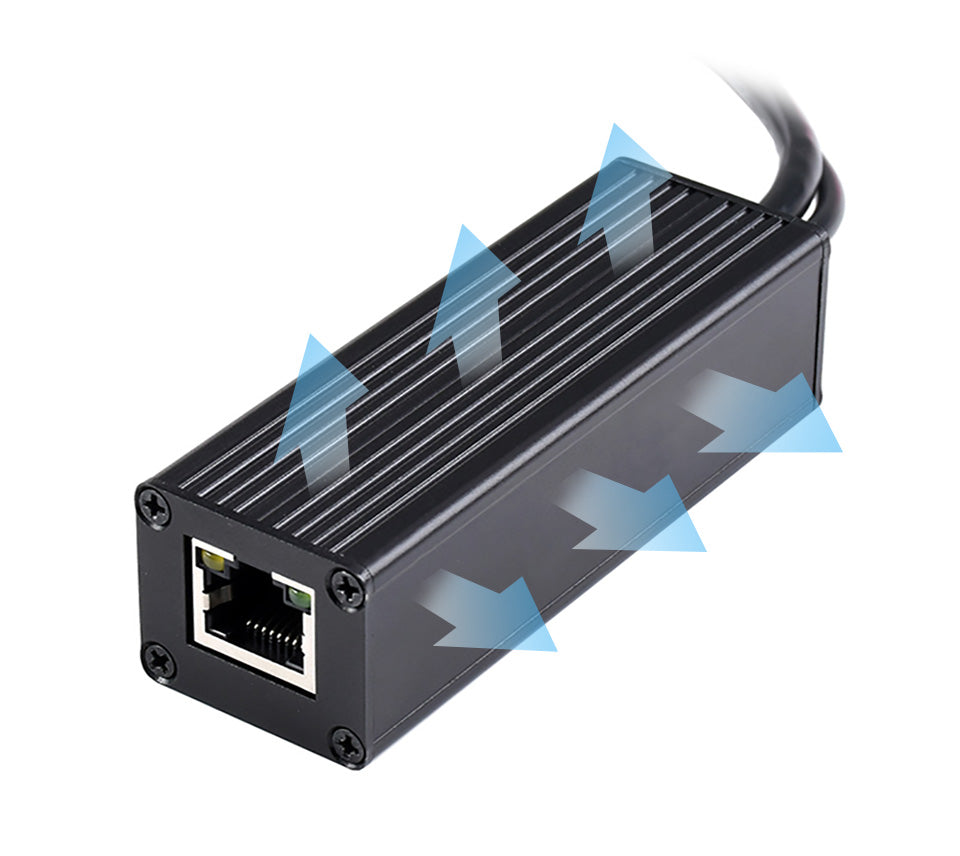

  • Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation

Specifications

POWER SUPPLY Supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
POE INPUT VOLTAGE 37V ~ 57V
TYPE-C OUTPUT 5V 2.5A (MAX)
CABLE Cat-5 UTP
STANDARD IEEE 802.3 af/at PoE Ethernet
DATA RATE 10/100/1000Mbps
LED INDICATOR PoE power input indicator

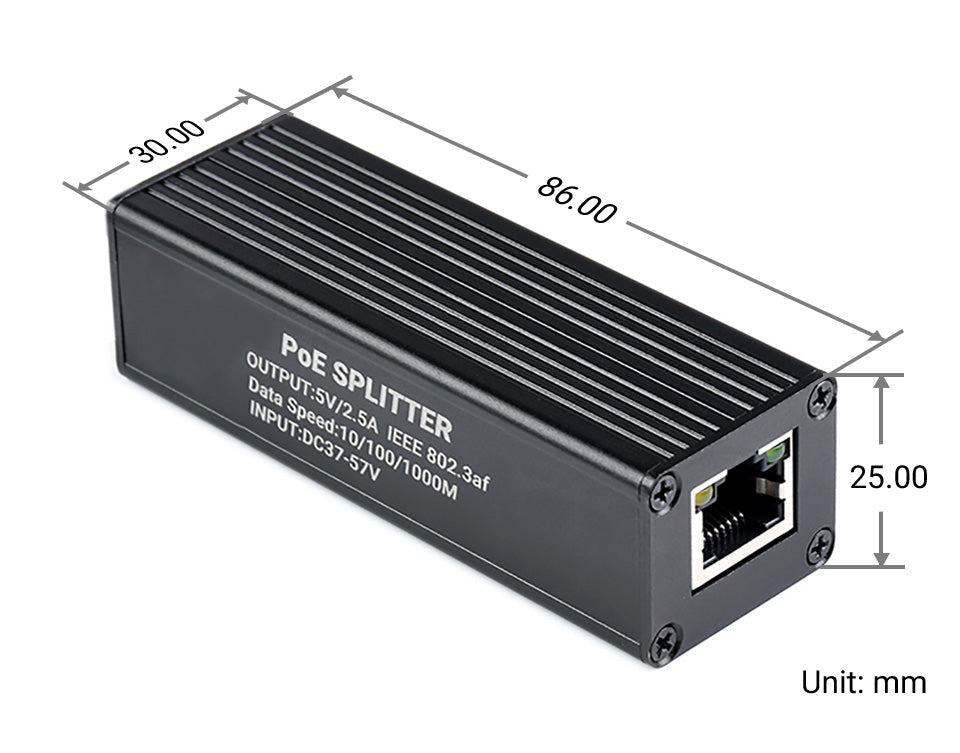

DIMENSIONS 86 × 30 × 25mm (l × w × h)
OPERATING TEMPERATURE -40℃ ~ 85℃
Wiki / Docs: http://www.waveshare.com/wiki/POE-SPLITTER-TYPE-C
