Sipeed LicheeRV Nano WE (Beta)

Sipeed LicheeRV Nano WE (Beta)

Low stock: 10 left

Regular price $34.95 AUD
Regular price $39.95 AUD Sale price $34.95 AUD
Sale Sold out
Shipping calculated at checkout.

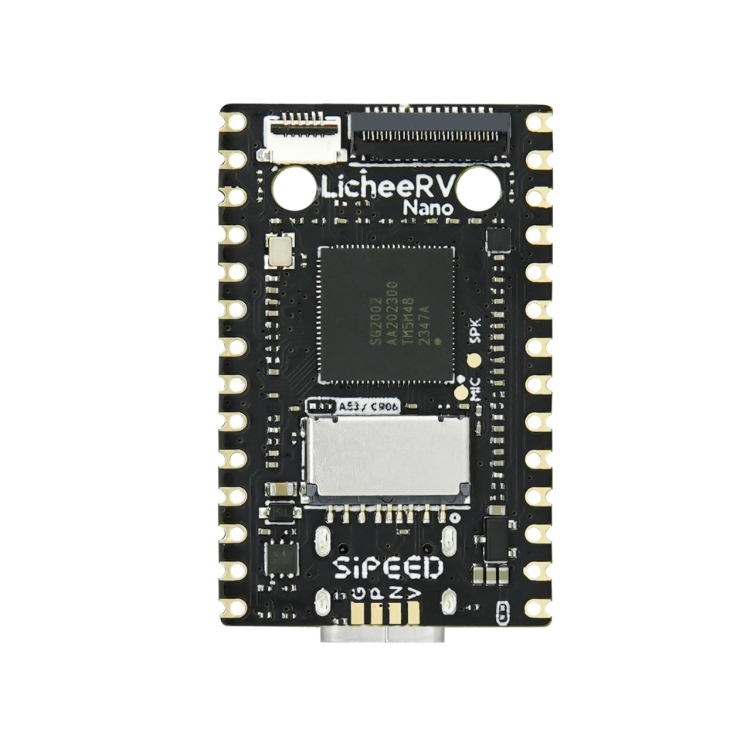

The LicheeRV Nano is a mini-sized development board (measuring only 22.86*35.56mm), equipped with the SG2002 processor the same as the Milk-V Duo 256M. This variant includes wired and wireless connectivity

It features a powerful core running at 1GHz (RISC-V/ARM options available) and a smaller core at 700MHz RISC-V, along with 256MB DDR3 memory, and an integrated 1Tops NPU. The board includes a wealth of interfaces such as MIPI-CSI, MIPI-DSI, SDIO, ETH, USB, SPI, UART, I2C, etc., allowing for the expansion of a wide variety of applications.

Its through-hole/half-hole design facilitates easy mass production and soldering.

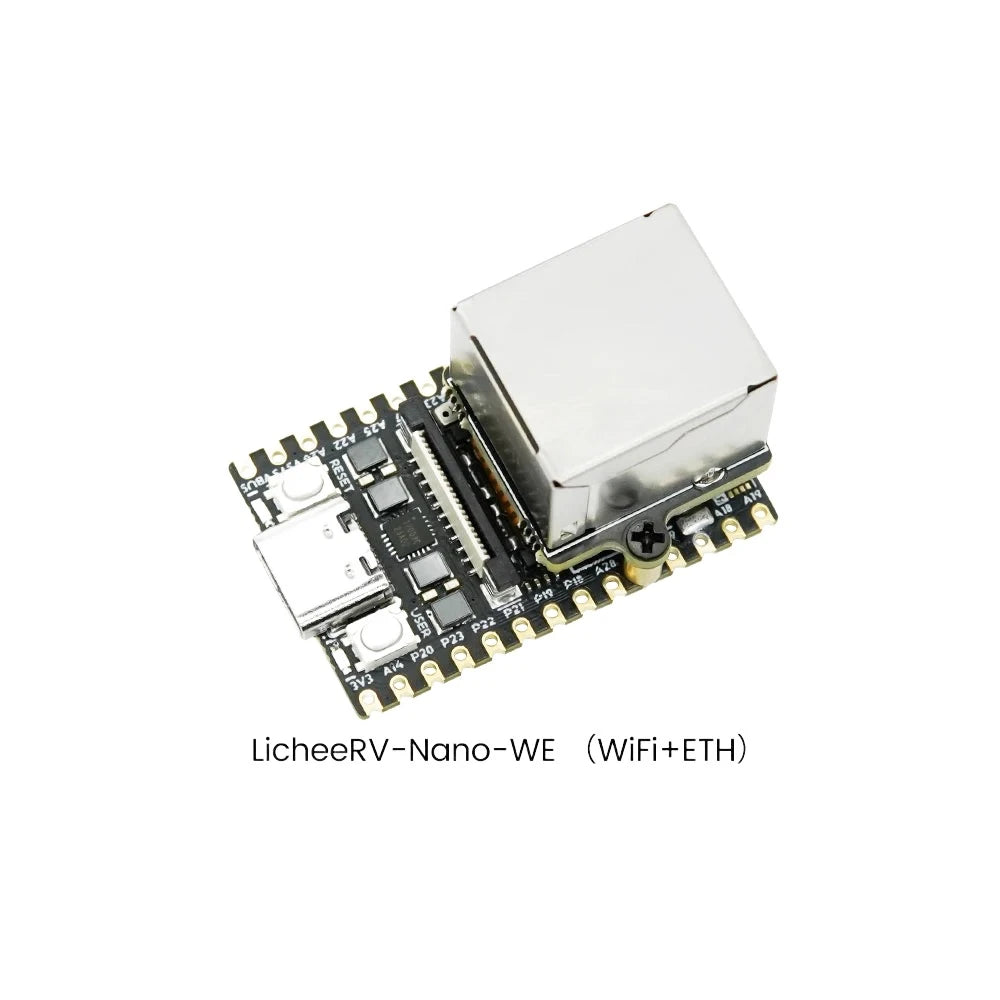

NOTE: This variant includes wifi and ethernet. The wifi module is soldered on, the ethernet module can be attached if desired.

All Documentation: https://wiki.sipeed.com/hardware/en/lichee/RV_Nano/1_intro.html

CPU SOPHGO SG2002;
Major core: 1GHz RISC-V C906 / ARM A53 (selectable);
Minor core: 700MHz RISC-V C906;
Low-power core: 25~300M 8051
NPU 1TOPS INT8, supports BF16
Memory Integrated 2Gbit (256MByte) DDR3
Storage Bootable from either TF card / SD NAND (SD NAND pads under TF card slot)
Video Interface Video Output: 2 lane MIPI DSI output, standard 31pin interface, supports 6pin capacitive touchscreen
Video Input: 4 lane MIPI CSI input, 22Pin interface, supports dual CSI split
Audio Interface Audio Output: Onboard PA amplifier, can directly connect speakers under 1W
Audio Input: Onboard analog silicon microphone, capable of direct sound reception
Wired Connection E suffix version supports 100M RJ45 connector
Wireless Connection W suffix version supports 2.4G / 5.8G dual-band WiFi6 + BLE5.4
USB 1 x USB2.0 OTG Type-C

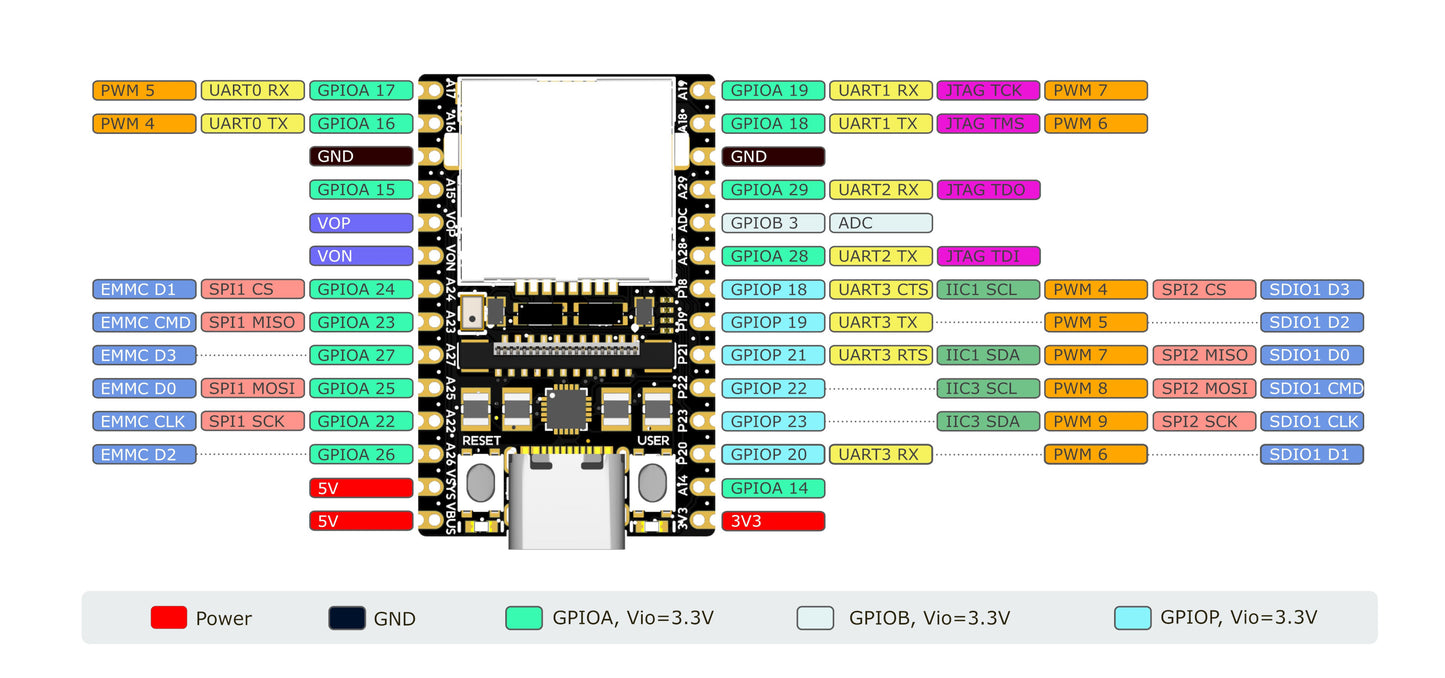

IO Interface 2 x 14pin 2.54 pin headers, 800mil spacing, breadboard-friendly
Buttons 1 x RST button + 1 x BOOT button
LEDs 1 x Power LED, 1 x User LED
Operating System Buildroot Linux / Debian
Dimensions 22.86 x 35.56mm
