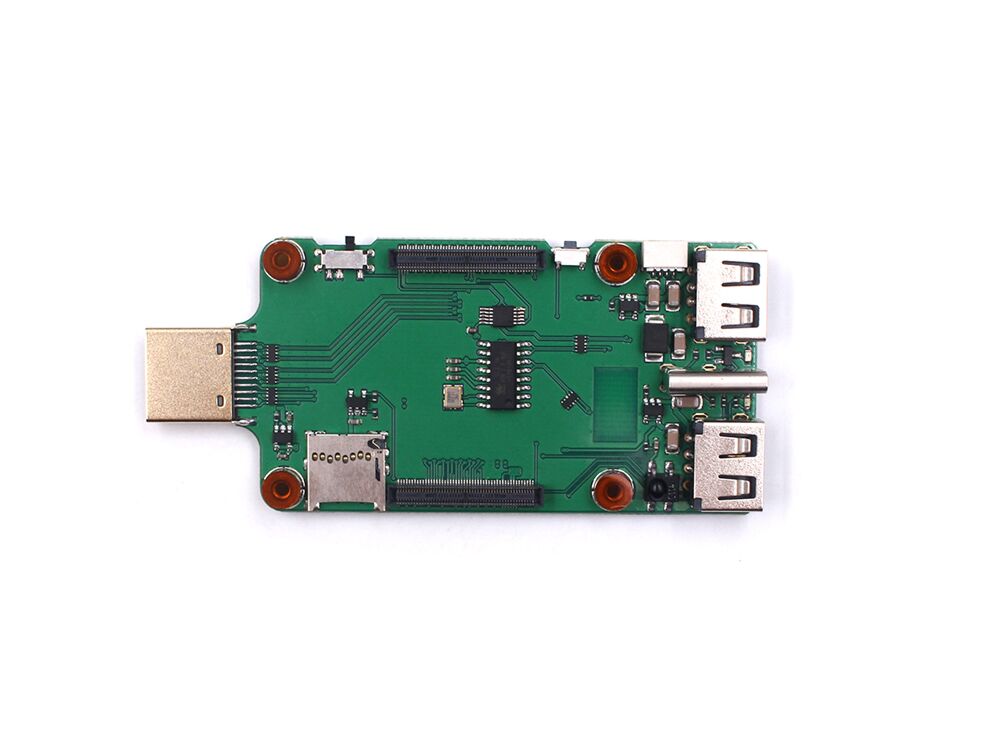

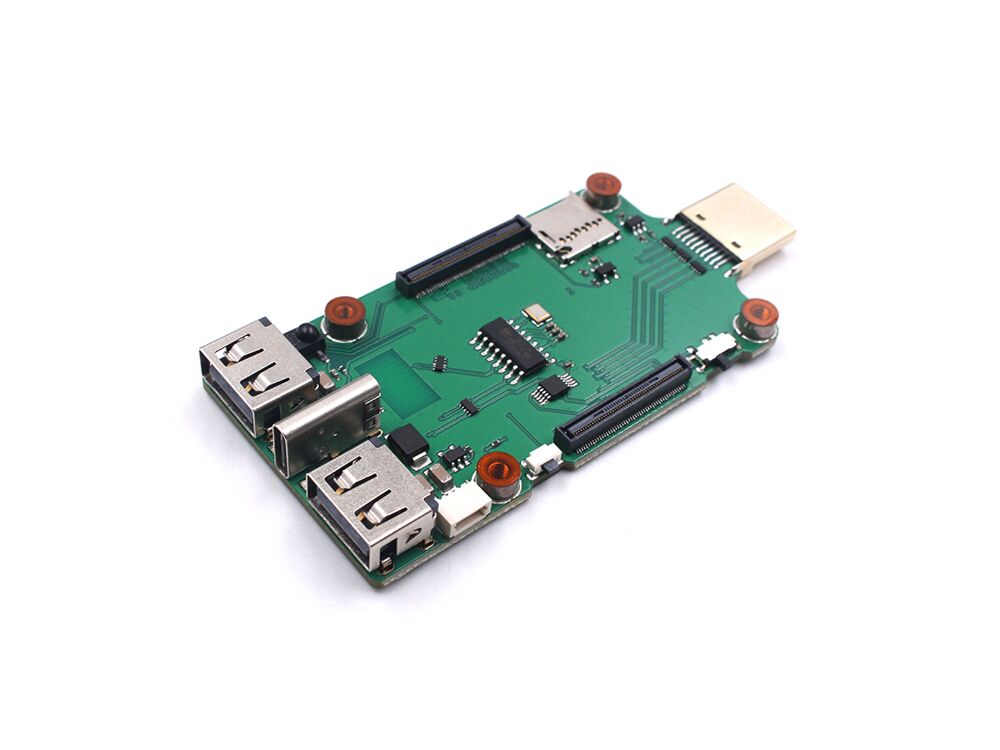

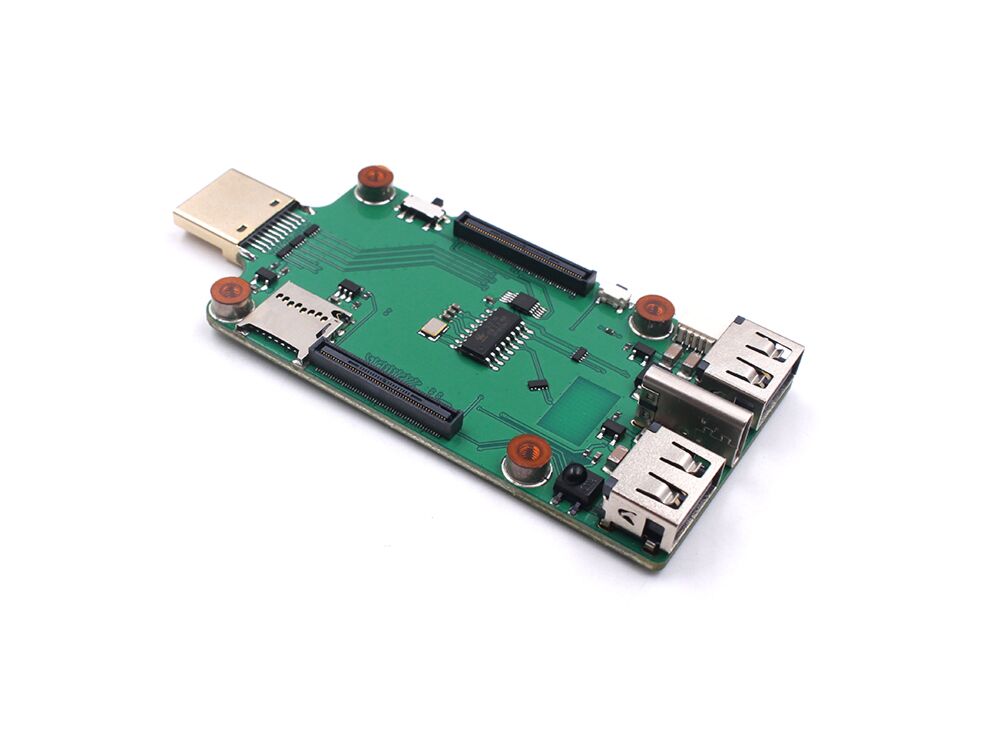

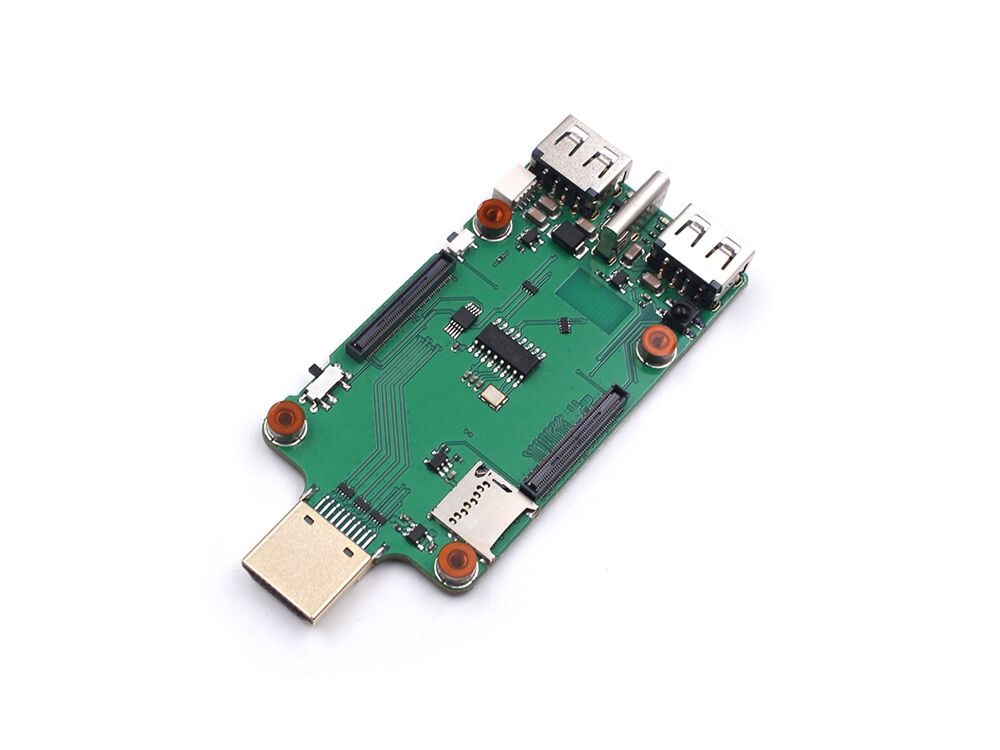

Raspberry Pi CM4 TV Stick

Raspberry Pi CM4 TV Stick plugs directly to HDMI port of your TV/monitor and needs only power via USB-C to let you:

• Play retro games with RetroPie!
• Turn your monitor or TV into a Smart TV with Kodi!
• Take your Pi anywhere, no need to carry HDMI cable!

Specs

• Compatible with Raspberry Pi CM4 eMMC and no-eMMC
• HDMI plug
• Micro SD card connector
• USB-C connector for data/power
• Two USB2.0 USB-A connectors
• USB2.0 as solder pads on reverse side
• IR receiver
• User button
• USB multiplexer selector switch: enable 2xUSB-A ports or CM4 USB device mode
• Power and Act LEDs

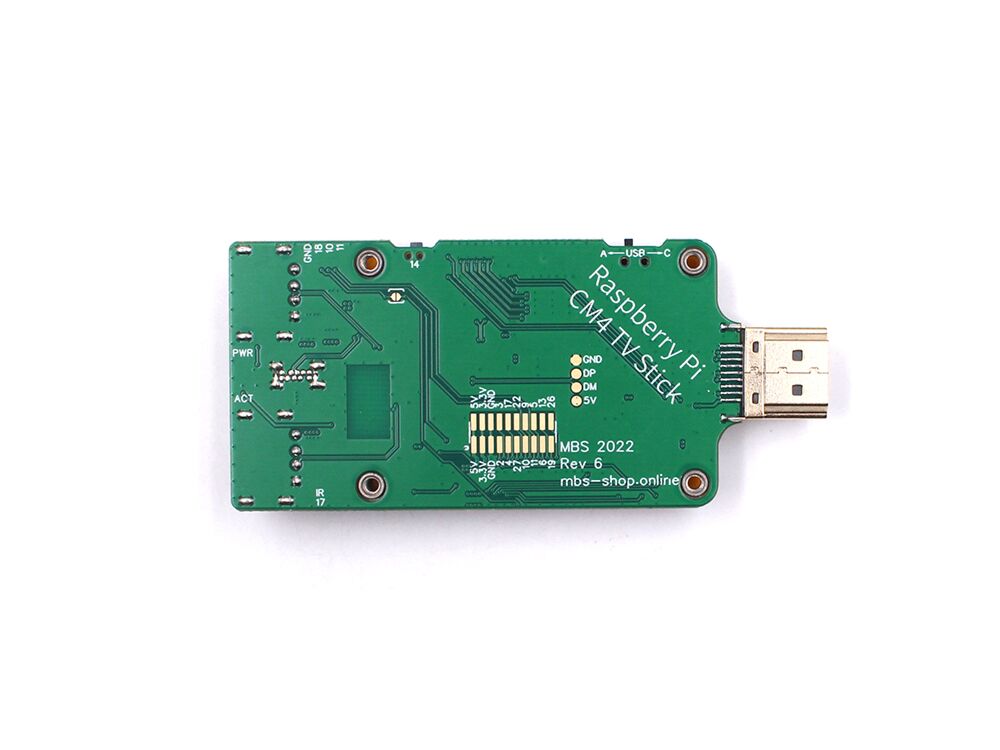

• 14 GPIOs, as well as GND, 5V and 3.3V solder pads on reverse side of PCB for hacking
• Connector for Ambilight-like lightning with WS2812 or WS2801 LEDs (GND, GPIO18, GPIO10 and GPIO11)

Notes

• Raspberry Pi CM4 is not included.
• There has been reports that the connectors on this corrode easily. This is not verified, but I would rather people know in advance!

Source Repo: https://github.com/magic-blue-smoke/Raspberry-Pi-CM4-TV-Stick
