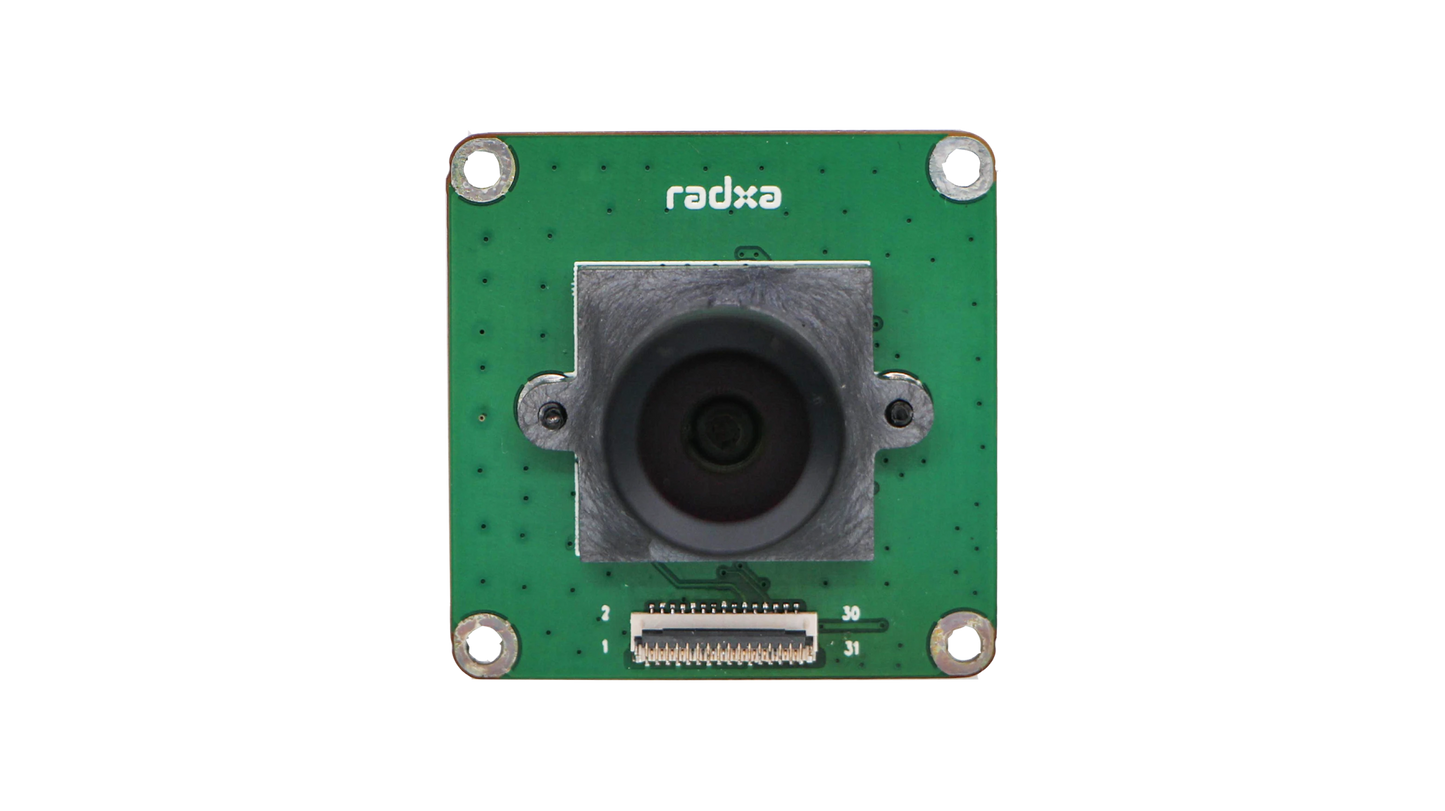

Radxa Camera 4K (IMX415, 8MP - Meant for Rock 3A, 5A, 5B)

Radxa Camera 4K (IMX415, 8MP - Meant for Rock 3A, 5A, 5B)

Low stock

Regular price $44.95 AUD
Regular price Sale price $44.95 AUD
Sale Sold out
Shipping calculated at checkout.

Whilst meant for the Rock 3A, 5A, 5B, this will work with a number of other SBCs as long as you have the device tree setup correctly and the relevant drivers installed.

You can see relevant connector types for cameras and boards at https://github.com/platima/sbc-cameras/blob/main/readme.md

Specifications

  • Sensor
    • SONY IMX415
    • Diagonal 6.43 mm (Type 1/2.8)
    • 8.29M pixel
    • Unit cell size: 1.45 µm (H) × 1.45 µm (V)
  • Output
    • MIPI CSI‑2 4‑Lanes serial data output
    • RAW10 / RAW12 output
  • Lens Specification
    • Interface Type M12XP0.5
    • Focal Length(EFL): 2.95±5%mm
    • Back Focal Length(BFL): 4.64mm
    • Flange Back Length(FBL): 4.00mm
    • Single lens operating temperature:‑40°C ~ +85°C
    • FOV
  • Cable: 31P 0.3mm to 31P 0.3mm FPC cable 150mm

Product Page: https://radxa.com/products/accessories/camera4k/
