PineTime Open Source Smart Watch by Pine64 (Sealed)

The PineTime is a free and open source smartwatch capable of running custom-built open operating systems. Some of the notable features include a heart rate monitor, a week-long battery as well as a capacitive touch IPS display that is legible in direct sunlight. It is a fully community driven side-project, which means that it will ultimately be up to the developers and end-users to determine when they deem the PineTime ready to ship.

We envision the PineTime as a companion for not only your PinePhone but also for your favourite devices - any phone, tablet, or even PC.

Please keep in mind that doing development on a sealed device is more difficult, mostly because there is no access to the low-level debug interface that allows you to recover from mistakes. Read the wiki and join the chat if you have more questions about the limitations imposed.

Platima brand, Pine64 and Pine Store are not responsible for any bricked devices due to flashed firmware.

Features

BODY

• Dimensions: 37.5mm x 40mm x 11mm
• Weight: 38 grams
• Build: Zinc Alloy and Plastic

DISPLAY

• Type: IPS capacitive touchscreen, RGB 65K colors
• Size: 1.3 inches
• Resolution: 240×240 pixels, 1:1 ratio

PLATFORM

• SoC: NORDIC Semiconductor nRF52832
• CPU: 64MHz ARM Cortex-M4F

MEMORY

• Internal: 512KB Flash, 64KB RAM
• Additional: SPI NOR 4 MB Flash

COMMUNICATION

• Bluetooth 5 (including Low Energy)
• FEATURES
• Sensors: Accelerometer, PPG Heart Rate Sensor
• Actuator: Vibrator

POWER

• Battery: Built-in LiPo 170-180mAh battery
• Charging: Proprietary 2pin 5V 500mA, USB type A plug

PACKAGE

• 1x PineTime Smart Watch
• 1x User Manual

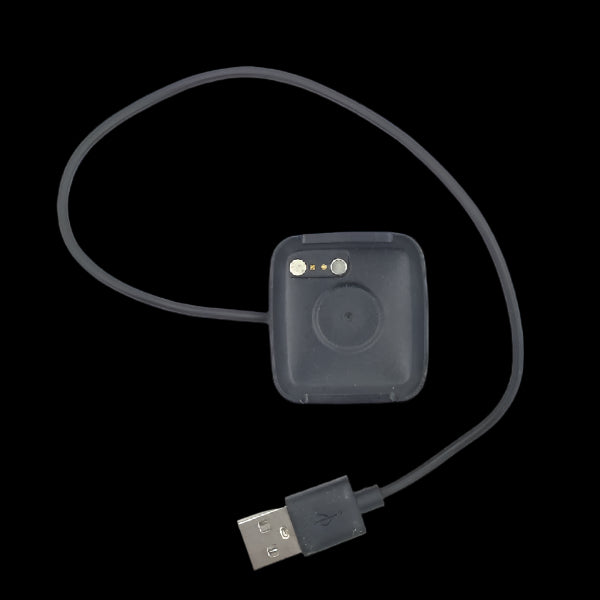

• 1x USB Charging Cradle/Cable

For more PineTime info, please visit wiki page at https://wiki.pine64.org/index.php/PineTime.
