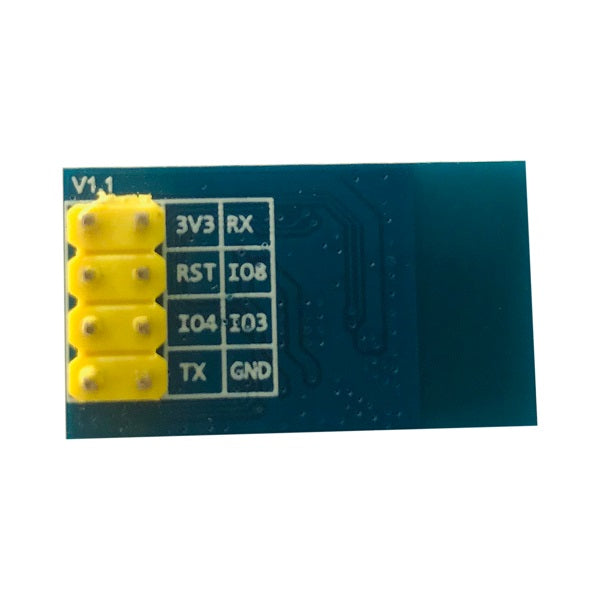

Pinenut Model-01S Wifi/BLE5 Module

The Pinenut-01S module offers a complete and self-contained Wi-Fi and BLE networking solution, allowing it to either host the application or to offload all Wi-Fi and Bluetooth networking functions to another application processor.

Features

• Built-in antenna
• Powered by Pineseed BL602 SoC
• 2MBytes Flash Size
• Serial/UART baud rate: 115200 bps
• Input power: 3.3V
• I/O voltage tolerance: 3.6V Max
• Eight pins interface, VCC-3V3, GND, RST TXD and RXD. Three extra GPIOs can be used for ADC, PWM, i2C, or UART functions
• Build in three LEDs output and one push button switch input
• Dimension: 14.3 x 24.8mm

Resources

Wiki: https://wiki.pine64.org/wiki/PineCone

GPIO Pins: https://files.pine64.org/doc/Pinenut/Pinenut-01S%20V1.01%20SCH.pdf

Schematic: https://files.pine64.org/doc/Pinenut/Pinenut-01S%20V1.01%20SCH.pdf

Arduino Core: https://github.com/pine64/ArduinoCore-bouffalo
