Pinecil - Smart Mini Portable Soldering Iron (Version 2)

PACKAGE

• Dimensions: 15cm x 9cm x 2.2cm
• Weight: 80 grams

BODY

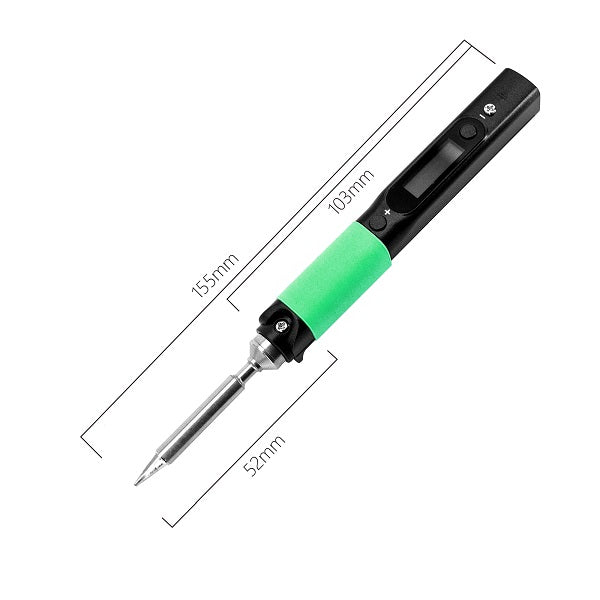

• Dimensions:  155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm
• Weight: 28g with solder tip / 18g without solder tip
• Build:  Plastic with metal clip (Handle)
• Color: Black (case)/ Green (Sleeve)

PLATFORM

• OS: Ralim’s IronOS build
• Chipset: Bouffalo BL-706
• CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz

DISPLAY

• Type: OLED White Colour Monochrome Display
• Size: 0.69 inches
• Resolution: 96x16pixels

MEMORY

• Internal Flash Memory: 192KB
• System Memory: 132KB SRAM
• Expansion: None

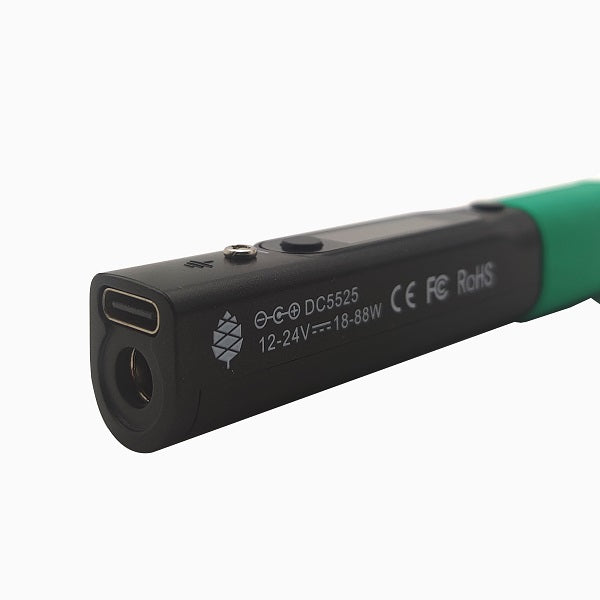

POWER PORTS

• USB type C: PD and QC 3.0 12V-20V 3A
• Barrel Jack: DC5525, 12V-24V DC 3A

TIP

• Type B2
• Length: 86mm
• Weight: 8.2g

FEATURES

• Capable received power from either USB-C port or barrel jack.
• GPIO break-out thru USB-C port

CERTIFICATION

• FCC
• CE RED
• ROHS

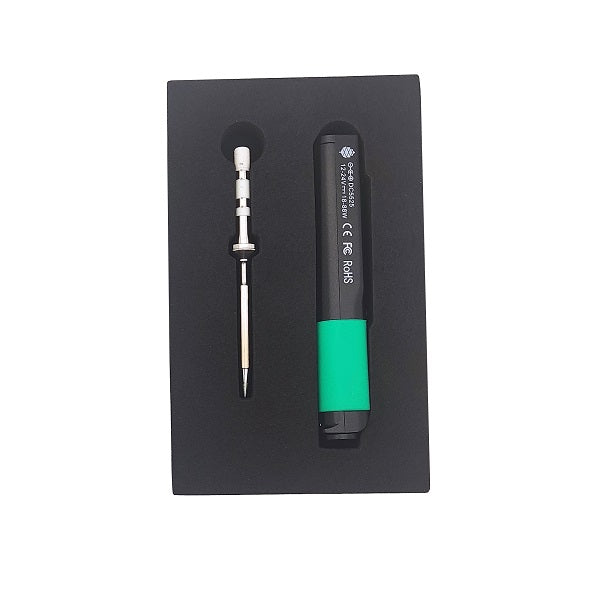

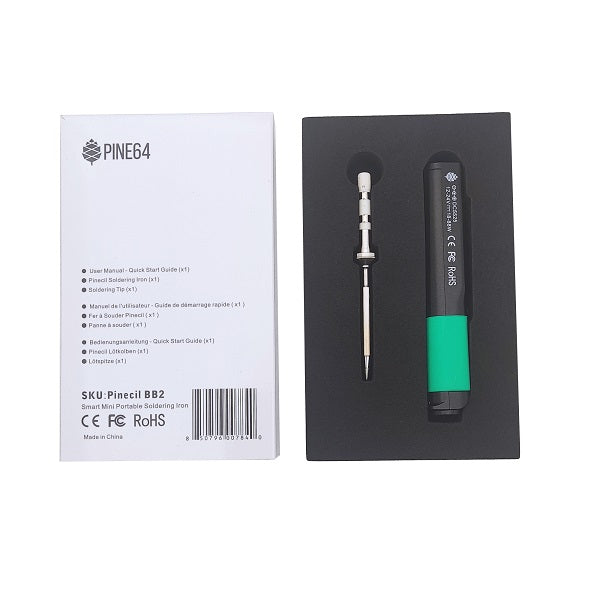

PACKAGE CONTENTS

• Pinecil Soldering Iron version 2
• ST (Short Tip)-B2 Soldering Tip

WARRANTY

• 30 Days
