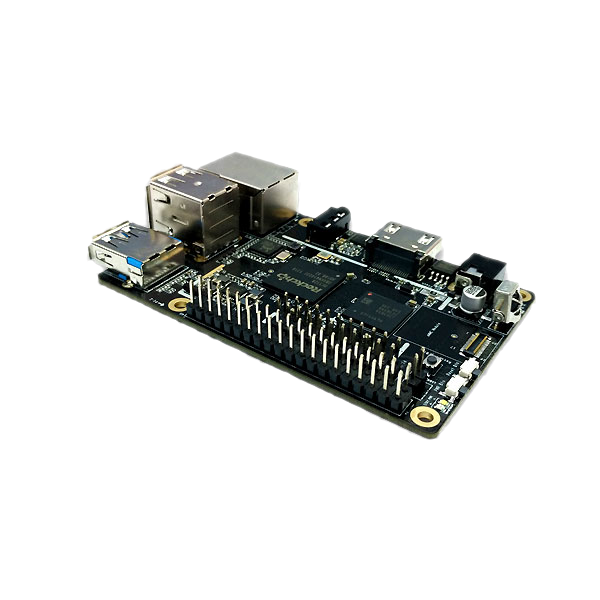

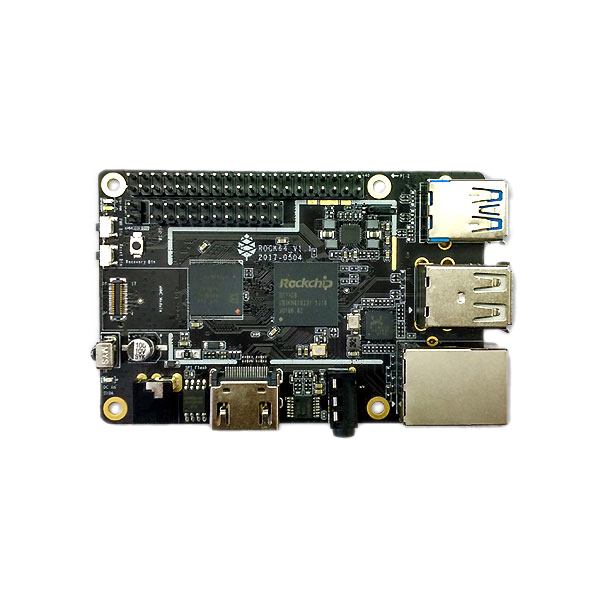

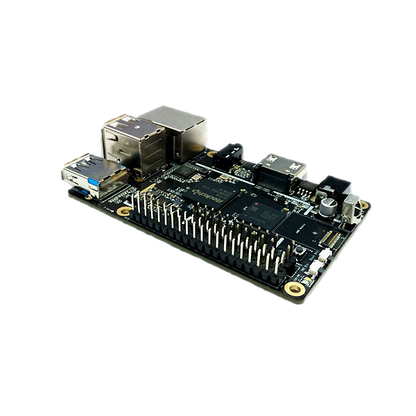

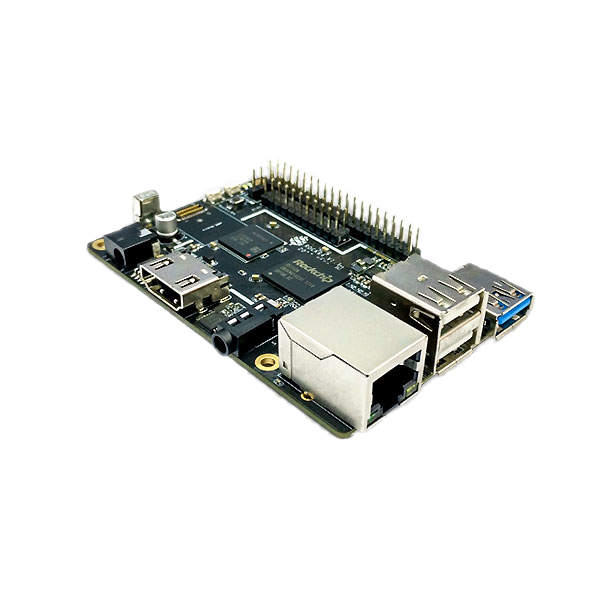

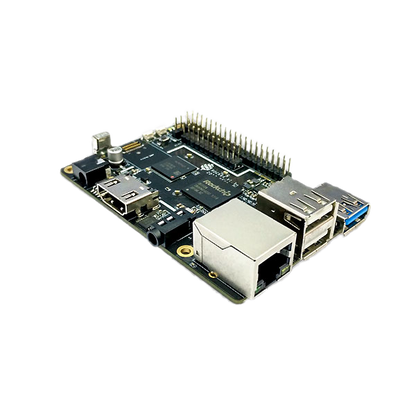

Pine64 ROCK64 2GB Single Board Computer
Pine64 ROCK64 2GB Single Board Computer
In stock
Couldn't load pickup availability
Overview
ROCK64 is a credit card size 4K60P HDR10 Single Board Computer powered by Rockchip RK3328 Quad-Core ARM Cortex A53 64-Bit Processor and supports 2GB 1600MHz LPDDR3 memory. It provides eMMC module socket, MicroSD Card slot, Pi-2 Bus, Pi-P5+ Bus, USB 3.0 and many others peripheral devices interface for makers to integrate with sensors and devices. Various Operating System (OS) are made available by open source community such Android 7.1, Debian, and many more to come.
Note: ROCK64 SBC no longer includes SPI Flash chip.
Note: ROCK64 require +5V 3A power supply with Type H 3.5mm OD/1.35mm ID barrel jack type plug.
Features and Specifications
| SoC | 4 x ARM Cortex A53 cores @ 1.5 GHz |
| GPU | ARM Mali 450 MP2 GPU |
| Memory | LPDDR3 RAM (up to 4GB) |
| Networking | Gigabit Ethernet |
| Storage | Micro SD Slot eMMC module slot SPI Flash 128Mbit |
| Connections | 4K digital video out 2x USB 2.0 Host 1x USB 3.0 Host PI-2 bus PI-P5+ bus IR R/X port Real Time Clock (RTC) port Power Over Ethernet (POE) (when using optional HAT module) A/V jack Power, Reset and Recovery buttons 3.5mm barrel power (5V 3A) port |
Note: Model may or may not come with JTAG headers attached; appears to depend on product revision.
Documentation: https://pine64.org/documentation/ROCK64/_full/
