Pinenut Model-12S Wifi/BLE5 Stamp

Pinenut Model-12S Wifi/BLE5 Stamp

Low stock

Regular price $4.45 AUD
Regular price Sale price $4.45 AUD
Sale Sold out
Shipping calculated at checkout.

The Pinenut-12S module offers a complete and self-contained Wi-Fi and BLE networking solution, allowing it to either host the application or to offload all Wi-Fi and Bluetooth networking functions to another application processor.

This version, as opposed to the 01S, is castellated so it can be soldered directly onto a carrier board.

Features

  • LEDs: 1 Onboard
  • Antenna: Built-in
  • MCU: BL602
  • Flash: 2MBytes
  • GPIOs: 11 (ADC, PWM, I2C, UART and SPI)
  • Input power: 3.3V
  • I/O Tolerance: 3.6V Max

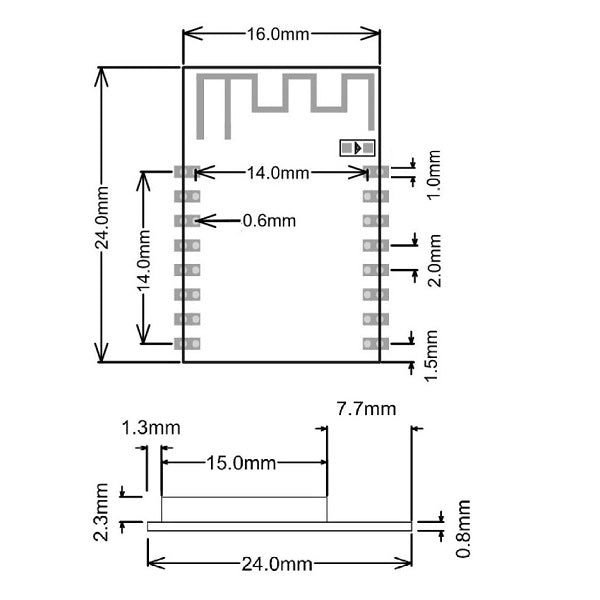

  • Dimension: 16 x 24×3.1mm

Resources

Wikihttps://wiki.pine64.org/wiki/PineCone

GPIO Pins: https://files.pine64.org/doc/Pinenut/NUT-12S%20GPIO%20Definition%20ver%201.0.pdf

Arduino Core: https://github.com/pine64/ArduinoCore-bouffalo
