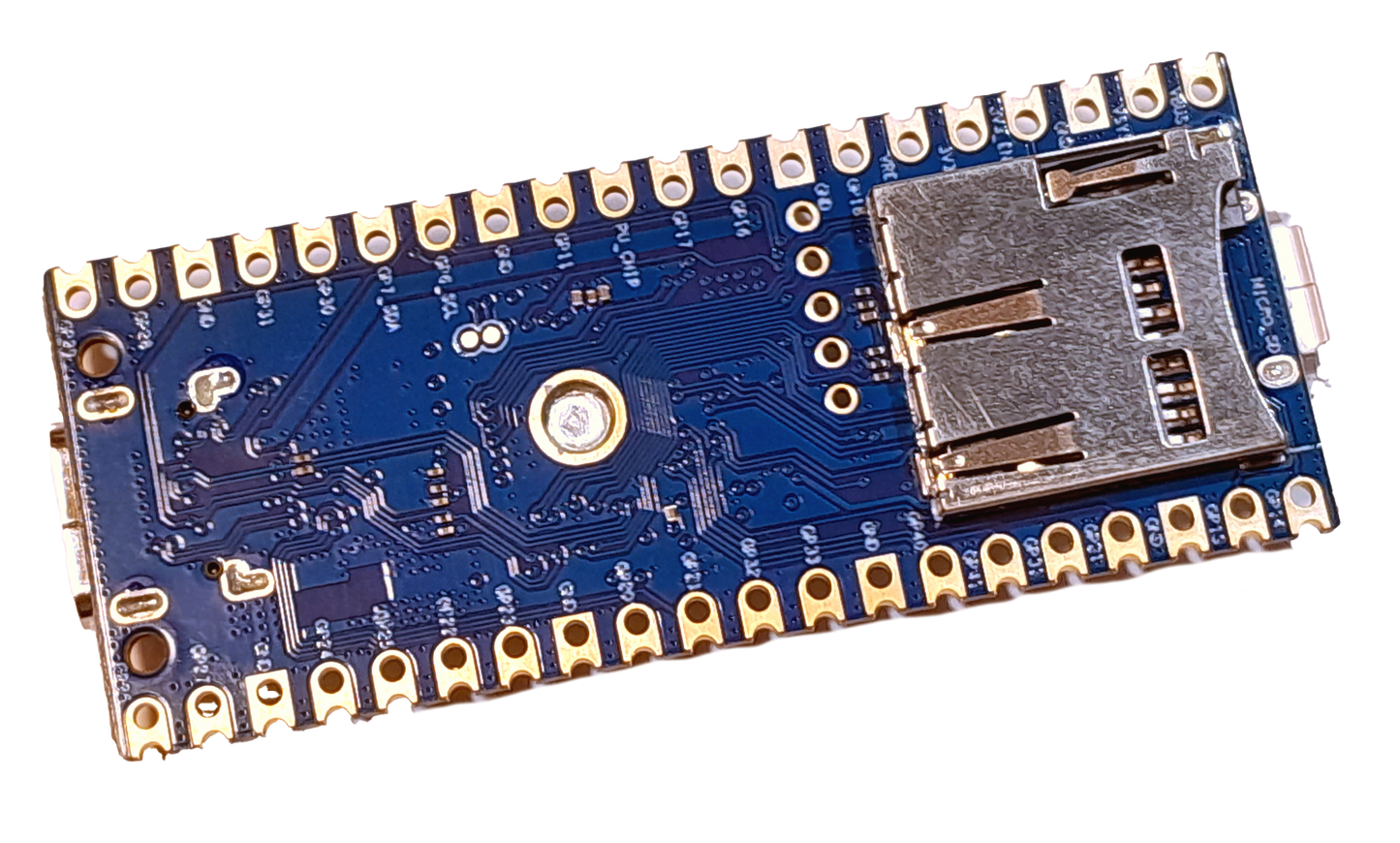

Ox64 - 128Mb (16MB) Variant

Overview

The Ox64 is an affordable, simple, and versatile platform that will serve Pine64 community for years to come, also as a basis for maker type Pine64 devices support endless possible DIY applications.

I am stocking and shipping these from Australia with only minimal markup (less than $2) to cover handling due to some shipping costs being exorbitant from the main store.

My first review video: https://youtu.be/czRtF-UNiEY

NOTE: The bootable images for this are work in progress by Pine64, Bouffalo Labs, and the community as a whole. Not all functionality is guaranteed to work out of the box, and this is aimed at developers and hobbyists with experience and patience. See the Wiki link below for more information.

For flashing I recommend a CP2104 module, as it requires a baud setting (bitrate) of 2,000,000! I will list these to sell eventually too (ordered some, waiting on them to arrive).

Specifications

• Bouffalo Lab BL808 RISC-V SoC
• 1x 64-bit 480MHz RV64 C906 Core (D0)
• 2x 32-bit 320MHz RV32 E907 Cores (M0)
• 1x 150MHz E902 Core (LP)
• BLAI-100 (Bouffalo Lab AI engine) NPU
• Embedded 64MB PSRAM
• 728KB internal SRAM
• 64MB internal PSRAM
• 128Mb (16MB) XSPI Flash
• microSD Card Slot (SDHC SDXC)
• 5V 500mA Power (measured 90mA idle running Linux, 57mA with RTOS SDK image)
• 51mm x 21mm x 3.5mm
• ~7 grams

IO

• 26 GPIO Pins
• UART, I2C, SPI, I2S
• USB-C (Power + Camera)
• microUSB (Power + USB 2.0 OTG)

A/V

• Optional Camera Module (TBC)
• Dual lane MiPi CSI via USB-C Port
• Microphone (Optional, on Camera Module)
• Speaker (Optional, on Camera Module)

Comms

• 802.11b/g/n 2.4GHz Wi-Fi
• Bluetooth 5.x Dual-Mode (BT+BLE)
• ZigBee
• USB 2.0
• 10/100Mbps Ethernet via add-on board (in development)

Expansion

• Ethernet PHY coming soon
• 40 pin breadboard-friendly headers

Links

• Video: https://www.youtube.com/watch?v=czRtF-UNiEY
• Original Vendor: https://pine64.com/product/128mb-ox64-sbc-available-on-december-2-2022/
• Wiki: https://wiki.pine64.org/wiki/Ox64

Note: Model may or may not come with JTAG headers attached; appears to depend on product revision
