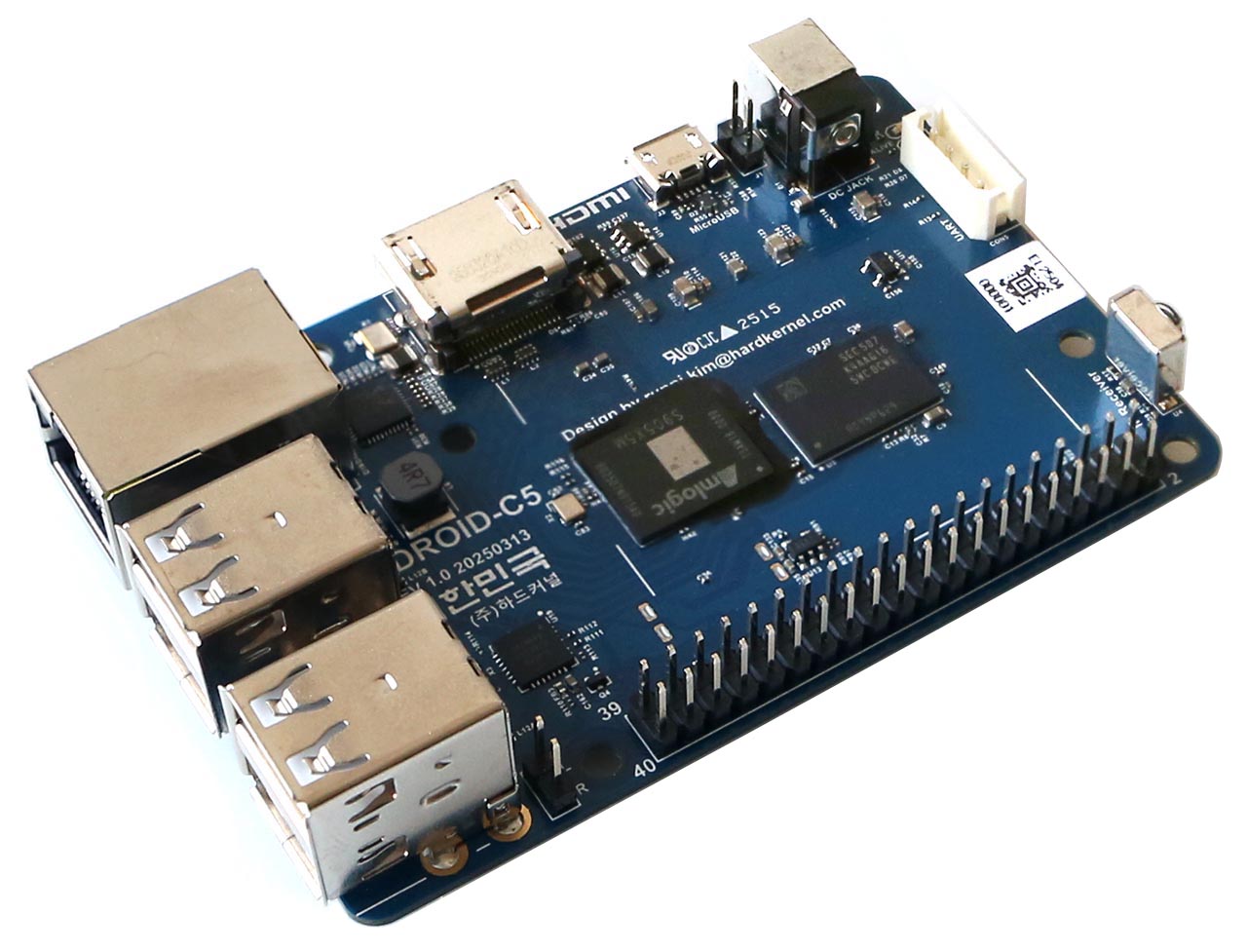

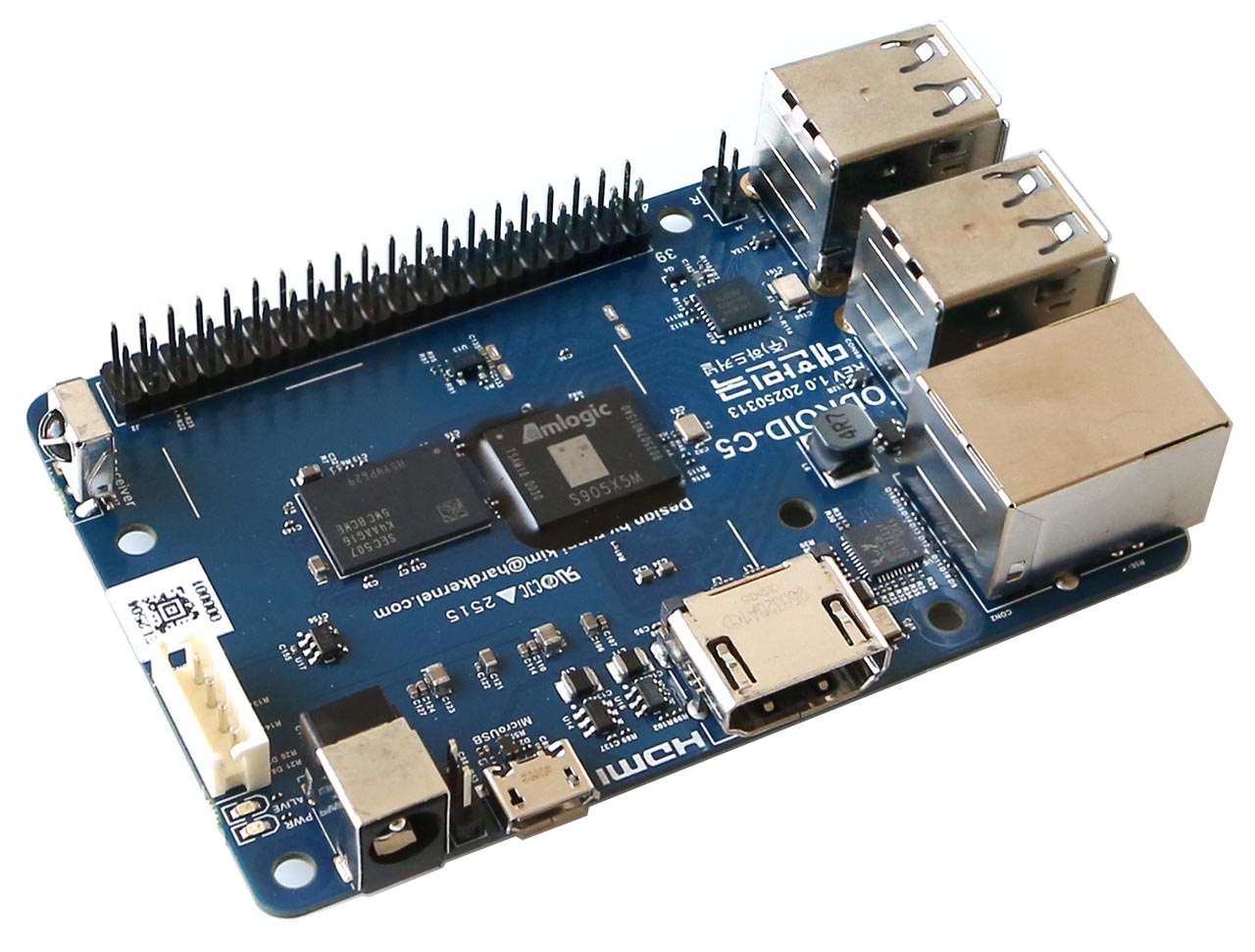

ODROID-C5 is powered by the Amlogic S905X5M application processor, manufactured in an advanced low-power semiconductor fab, featuring a quad-core Cortex-A55 CPU running at 2.5GHz and a modern Mali G310 GPU running at 0.85GHz.
| A | CPU (Amlogic S905X5M) | H | 2 x System LED indicators |
| B | DDR4 memory (4GiB) | I | 1 x UART for system console |
| C | 4 x USB 2.0 host ports | J | 1 x IR receiver |
| D | 1 x RJ45 Ethernet port (10/100/1000) | K | 40 x GPIO pins |
| E | 1 x HDMI 2.0 | L, O | Stereo audio output 2 pins, Alternative power input 2 pins |
| F | 1 x Micro USB 2.0 port (OTG) | M | 1 x eMMC module socket |
| G | 1 x DC power jack (Outer diameter : 5.5mm, inner diameter : 2.1mm) | N | 1 x Micro SD slot |
Specifications

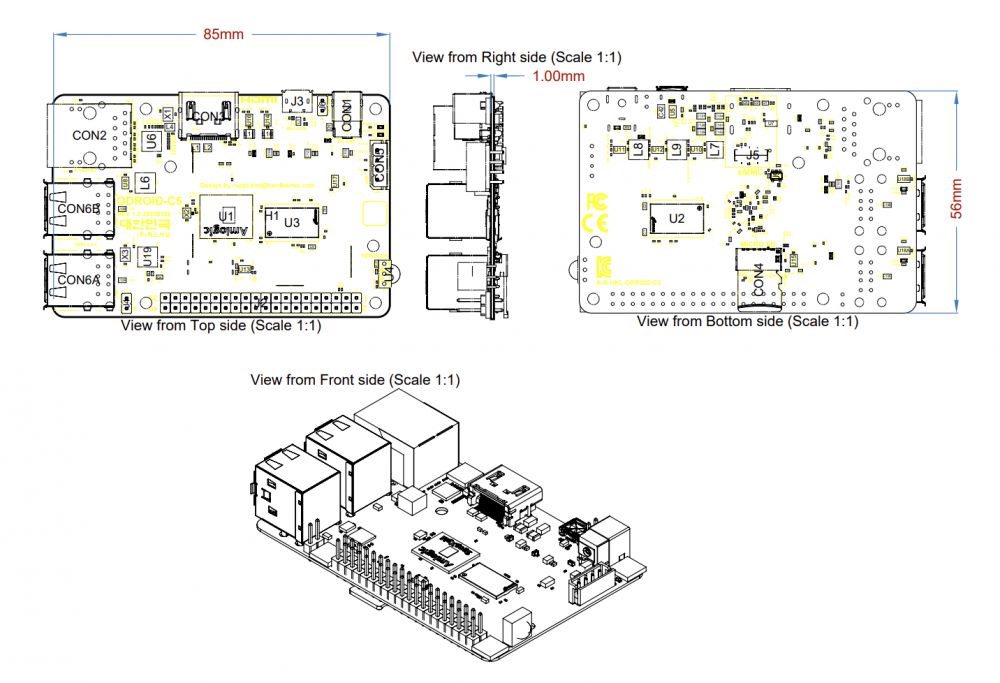

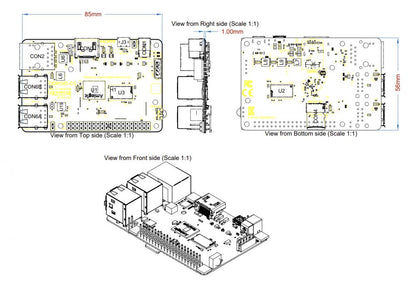

| Form Factor | Board Dimensions: 85mm x 56mm x 22mm
Weight: 42g |
| Processor | Amlogic S905X5M
Quad-Core Cortex-A55 (2.5GHz) ARM G310 V2 GPU (0.85GHz) |
| Memory | DDR4 4GB with 32-bit bus width
Data rate: 3200 MT/s |
| Storage | 1x Micro SD slot (DS/HS mode up to UHS-I SDR104)
1x eMMC socket (HS400) |
| Networking | 1 x GbE port (RJ45, supports 10/100/1000 Mbps)
– LED indicators * Green LED: Flashing by data traffics at 100Mbps connection * Amber LED: Flashing by data traffics at 1000Mbps connection |
| Video output | 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID) |
| Audio | 1 x HDMI digital output
1 x Analog stereo line out |
| External I/O | 4 x USB 2.0 host port
1 x Micro USB port (OTG) 1 x Debug serial console (UART : 921600bps) 1 x 40 pin GPIO header GPIO input/output nominal voltage is 3.1V. The maximum input tolerance is 3.4V. |
| Other features | * System LED Indicators:
– Red (POWER) Solid light when DC power is connected – Blue (ALIVE) Flashing like a heartbeat while Kernel runs. Solid on the u-boot stage. |
| Power | 1 x DC jack: outer (negative) diameter 5.5mm inner (positive) diameter 2.1mm
1 x Alternative(aux) power input from a 2-pin header
DC input voltage range: 7.5V ~ 15.5V (12V/2A power adapter is recommended) – IDLE : ≃ 1W without any kind of peripherals – CPU Stress : ≃ 2.5W (Performance governor) without any kind of peripherals – Power Off : ≃ 0.22W |
Due to SoC design constraints, there’s no USB 3.0 Super-Speed or PCIe bus built into the chip. As a result, all USB ports on the ODROID-C5 only support up to USB 2.0 High-speed devices.
Documentation: https://wiki.odroid.com/odroid-c5/odroid-c5
