Milk-V IO Expansion Board for Duo

Overview

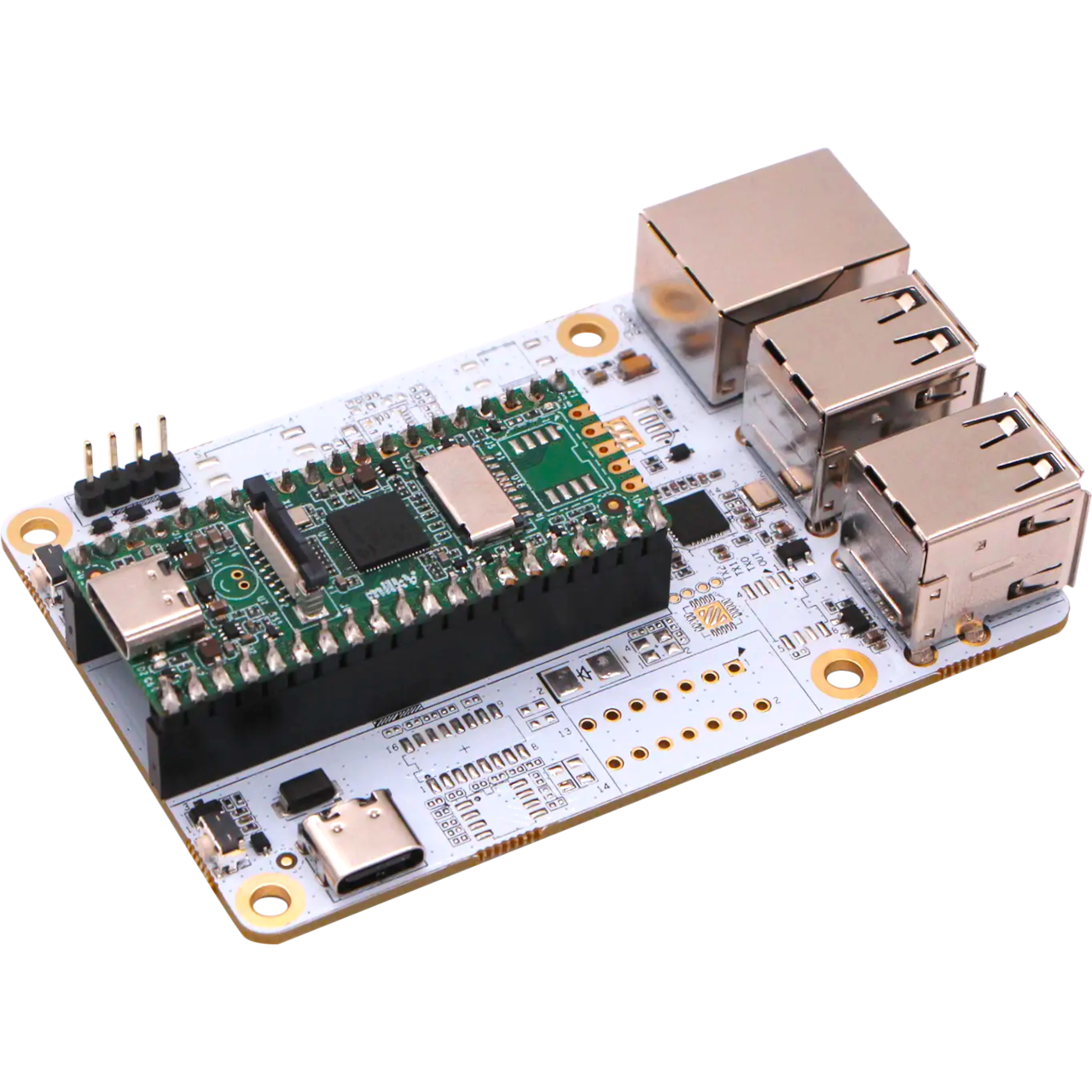

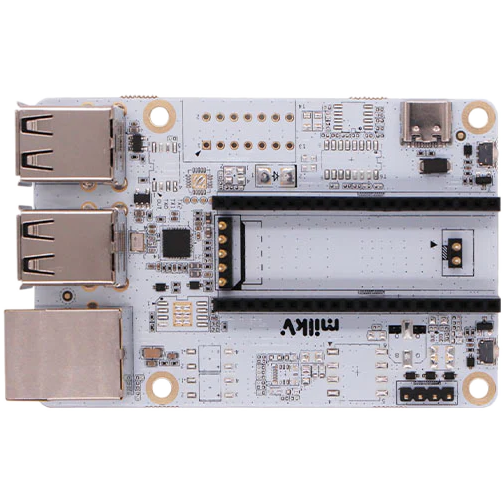

Expand the Milk-V Duo using this IO-Board (IOB). There's also a pile of pins and pads for future use. Maybe you can figure them out?

Specifications

• 4x USB 2.0
• 1x 100Mbps RJ45 Network Port
• 1x UART/Serial Debug Header (4-pin)
• 1x Type-C Power Input
• 1x Button

Documentation: https://milkv.io/docs/duo/io-board/usb-ethernet-iob

NOTES:

• Does NOT include Duo module.
• When in use, RNDIS USB networking is not available.
• USB ports are disabled by default, see documentation above.

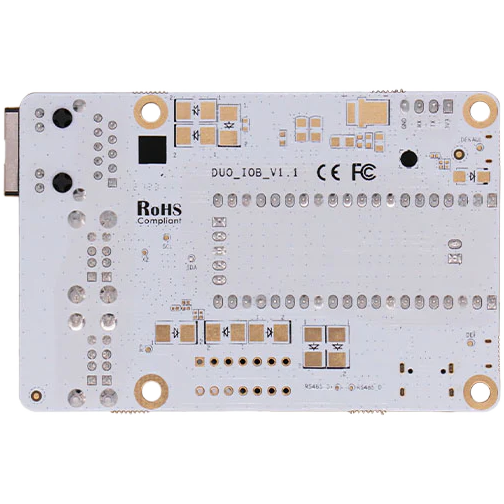

• Version shipped does not have labels on PCB (might be HW V1.0)
• All units appear to be a white PCB
