Milk-V DuoModule 01 EvalBoard

Overview

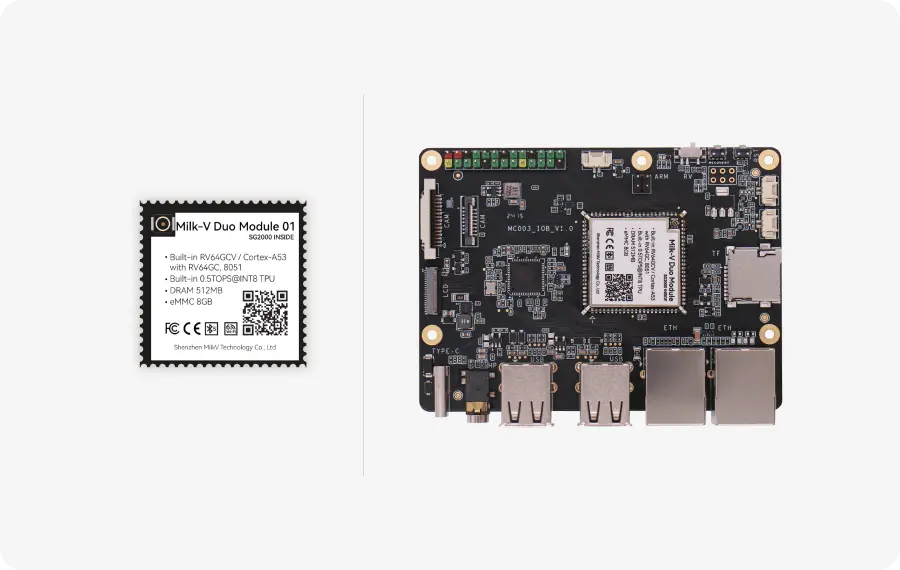

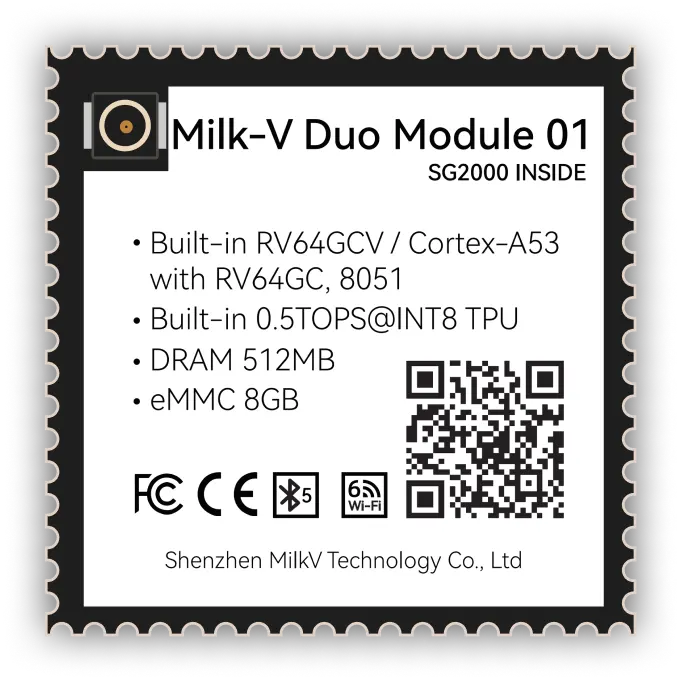

The Duo Module 01 is a compact module with integrated SG2000, WI-FI6/BTDM5.4, and eMMC. It supports SMD mounting. Also it can greatly save product development time. It is the first choice for making products.

The SoC of Duo Module 01, the SG2000, has a built-in RV64GCV@1GHz / Cortex-A53@1Ghz (Selection by pin level), an RV64GC@700MHz core for real-time tasks, an 8051 core for low-power standby, and a 0.5 TOPS@INT8 TPU.

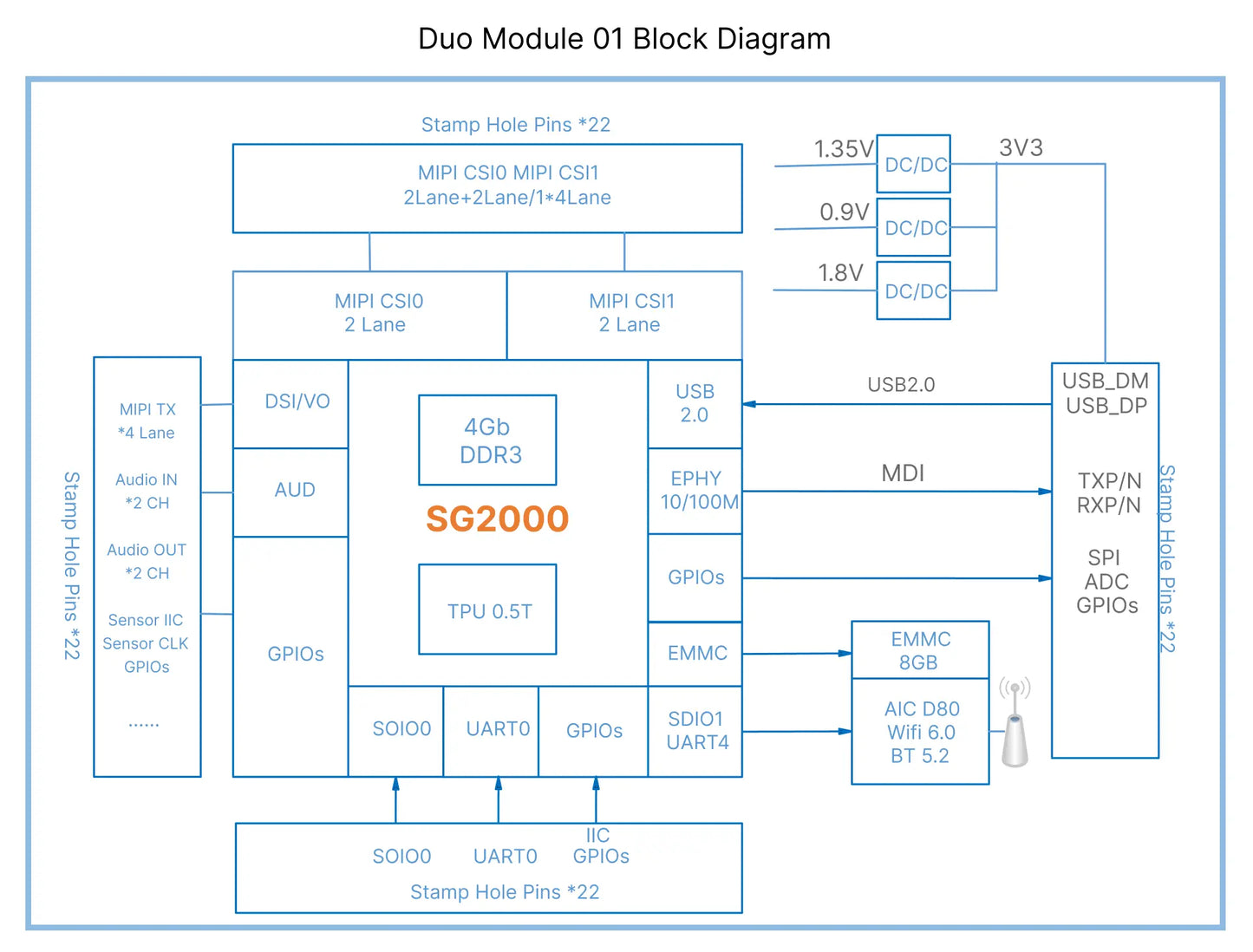

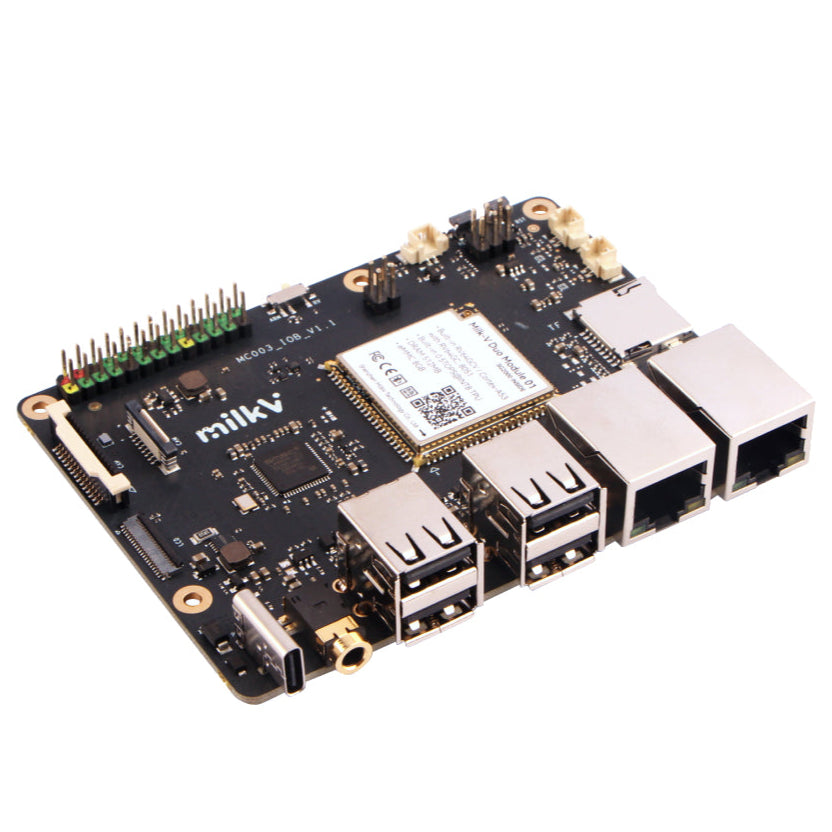

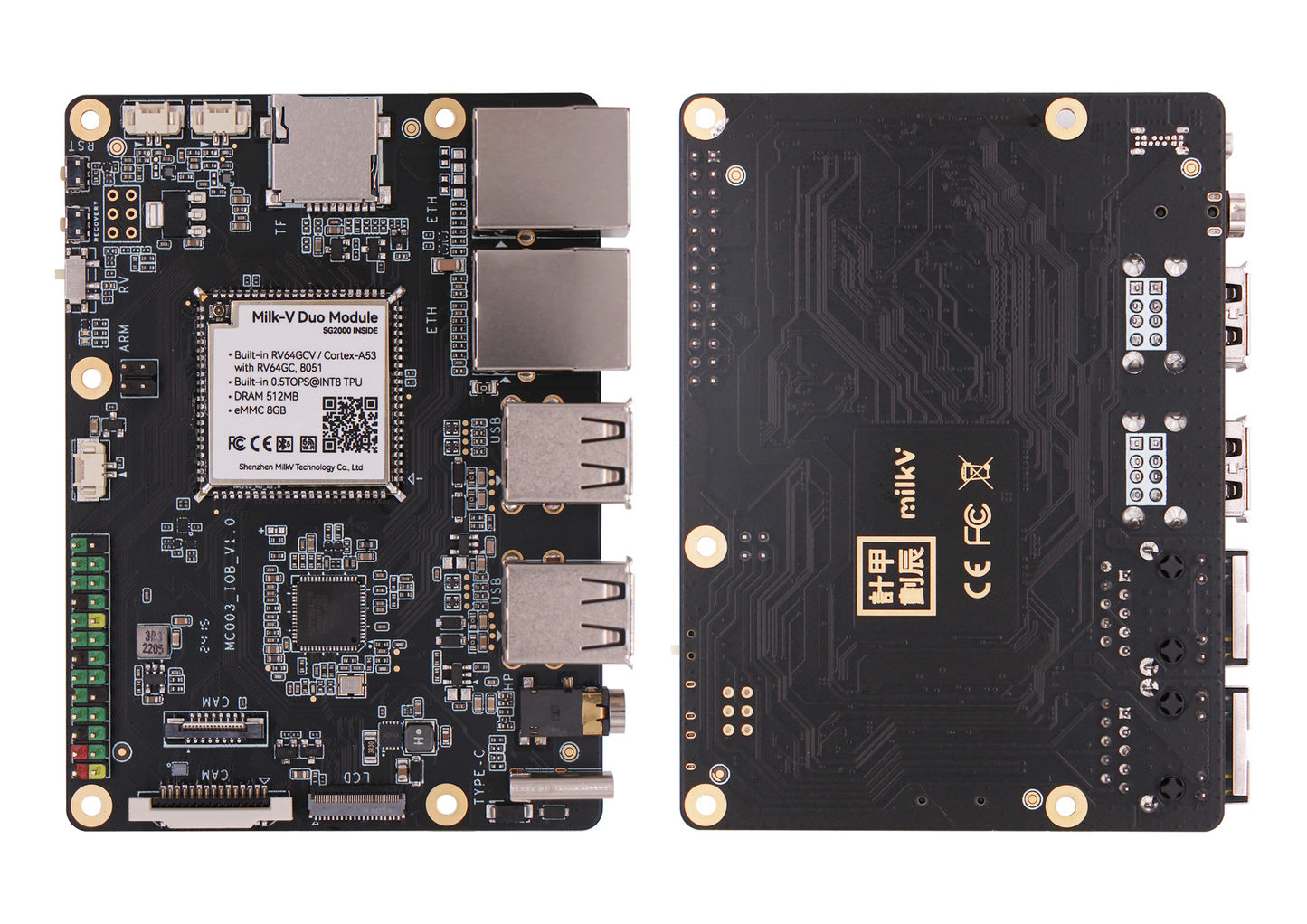

The Milk-V DuoModule 01 Evaluation Board is an evaluation platform based on the Duo Module 01, integrating various commonly used interfaces. It allows enterprises, developers, and makers to quickly evaluate solutions related to the SG2000 using this device. The open-source baseboard design documentation provides a reliable reference for secondary development.

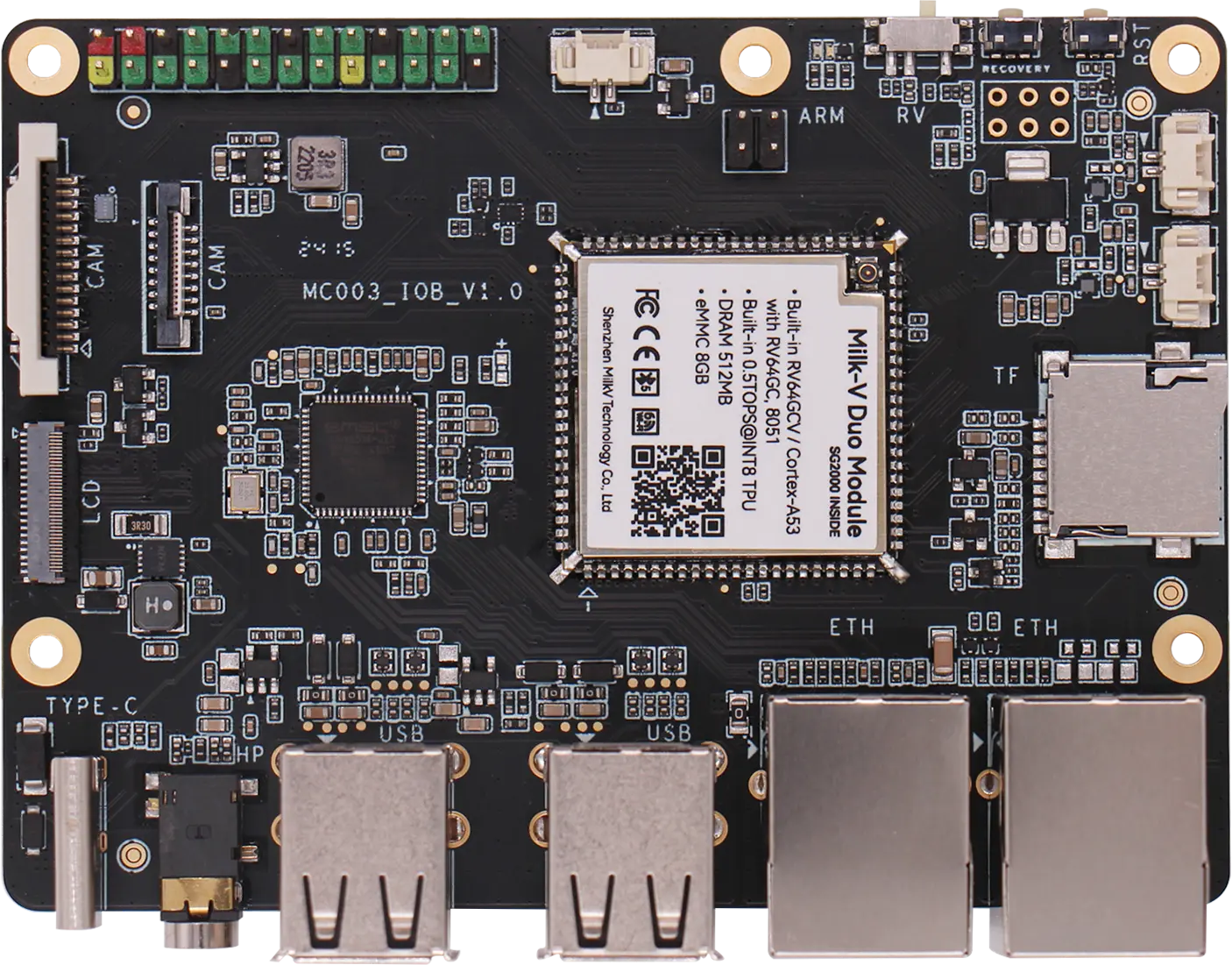

Specifications

• SG2000 Dual-Core RV64 Processor, with
• Dual C906 RV64 Cores (1GHz and 700MHz)
• ARM Cortex-A53 Core (1GHz)
• 8051 6KB MCU
• 0.5 TOPs (Int8) TPU
• 5M @ 30FPS ISP
• 512MB DDR3 RAM
• 1x microSD connector, 1x 8GB eMMC onboard
• 1x Type-C for power and data or 4x USB 2.0 Type-A Host Port

• 1x 16P FPC Connector (MIPI CSI 2-lane),1x 15P FPC connector (MIPI CSI 2-lane)

• 2x 100Mbps Ethernet Ports (RJ45)

• WIFI6 / BT5.4 onboard

• 1x 3.5mm jack for audio out, 2x 2p for mic in

• 1x 39P FPC Connector (MIPI DSI 4-lane)

• Up to 19x GPIO Pin (Via GPIO Header)

• 5V/1A Power Consumption

• Buildroot & RTOS

• 100mm x 75mm Size

• 1x BOOT Switch, 1x Recovery Key, 1x RST Key


Camera Module: https://shop.plati.ma/products/milk-v-cam-gc2083-camera-module-for-duo-hw-v1-1

Documentation: https://milkv.io/docs/duo/getting-started/duos

Design Files: https://milkv.io/duo-module-01 (Open Source)
