Luckfox Lyra Zero W Micro Linux Development Board

Luckfox Lyra Zero W Micro Linux Development Board

In stock

Regular price $26.00 AUD
Regular price $29.00 AUD Sale price $26.00 AUD
Sale Sold out
Shipping calculated at checkout.
Quantity

Luckfox Lyra Zero W is a Linux micro development board powered by the Rockchip RK3506B to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, SDMMC, USB, etc. to meet various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allows for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging. Integrated wireless communication module, suitable for IoT communication scenarios such as smart home and industrial control.

Specifications

Processor Triple-core Arm Cortex-A7 (1.2GHz) + Arm Cortex-M0
Memory Onboard 512MB DDR3L
USB Original USB OTG 2.0 × 1
HUB expanded USB HOST 2.0 × 2
Display Interface MIPI DSI 2-lane
GPIO 28 × Rockchip Matrix IO pins
Default Storage SPI NAND FLASH (256MB)
Wireless communication Onboard 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE



Highly integrated and powerful performance

  • Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single-precision and double-precision floating-point operations
  • Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
  • Supports DDR3L memory interface expansion, meeting various expansion needs

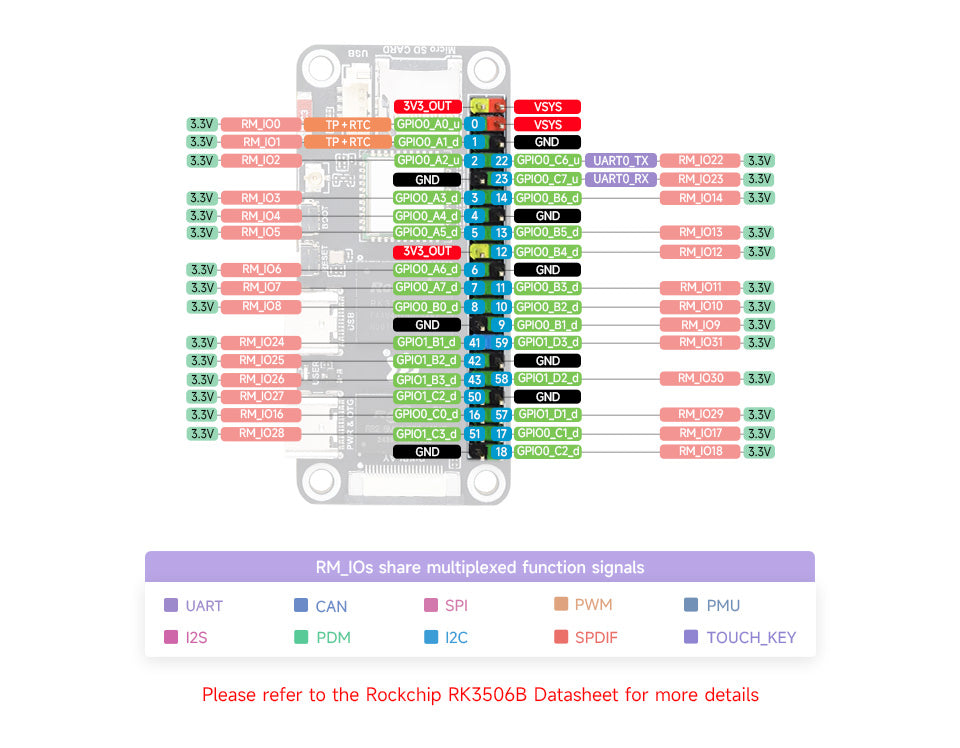

  • The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
  • Supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions

What's On Board

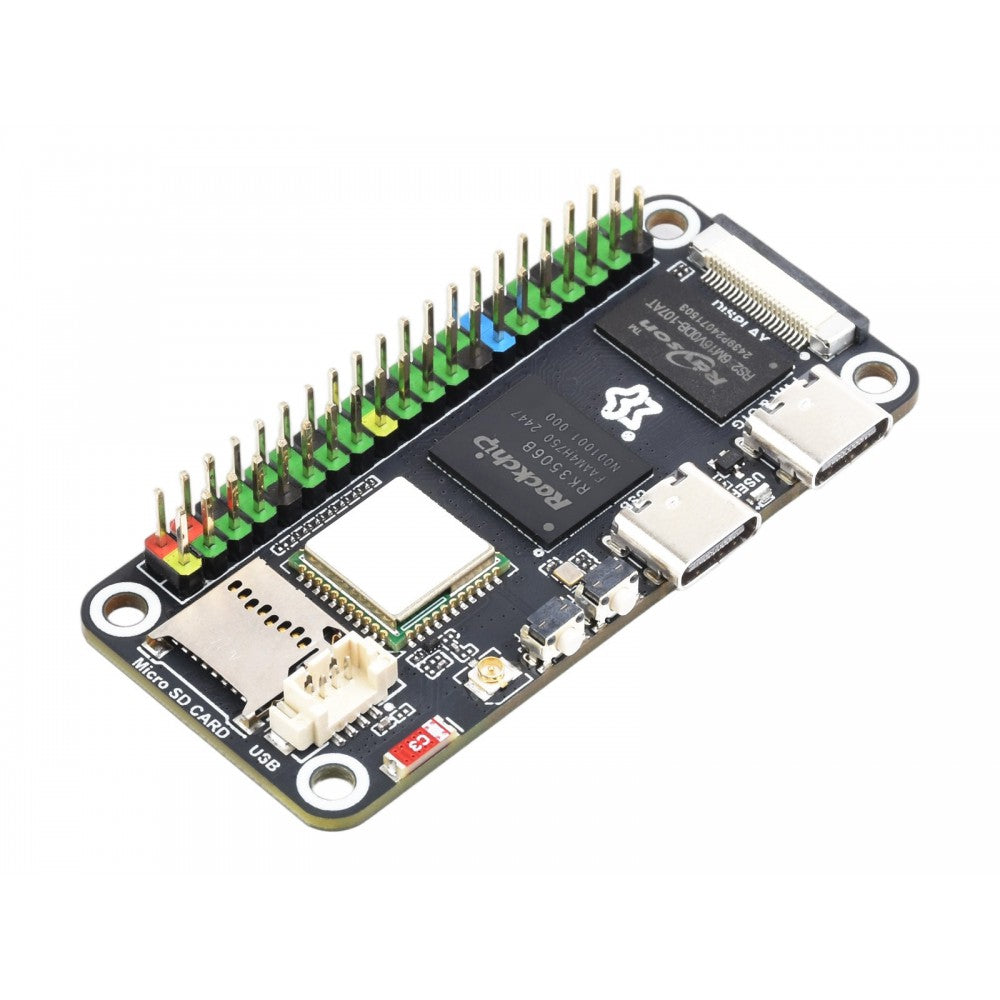

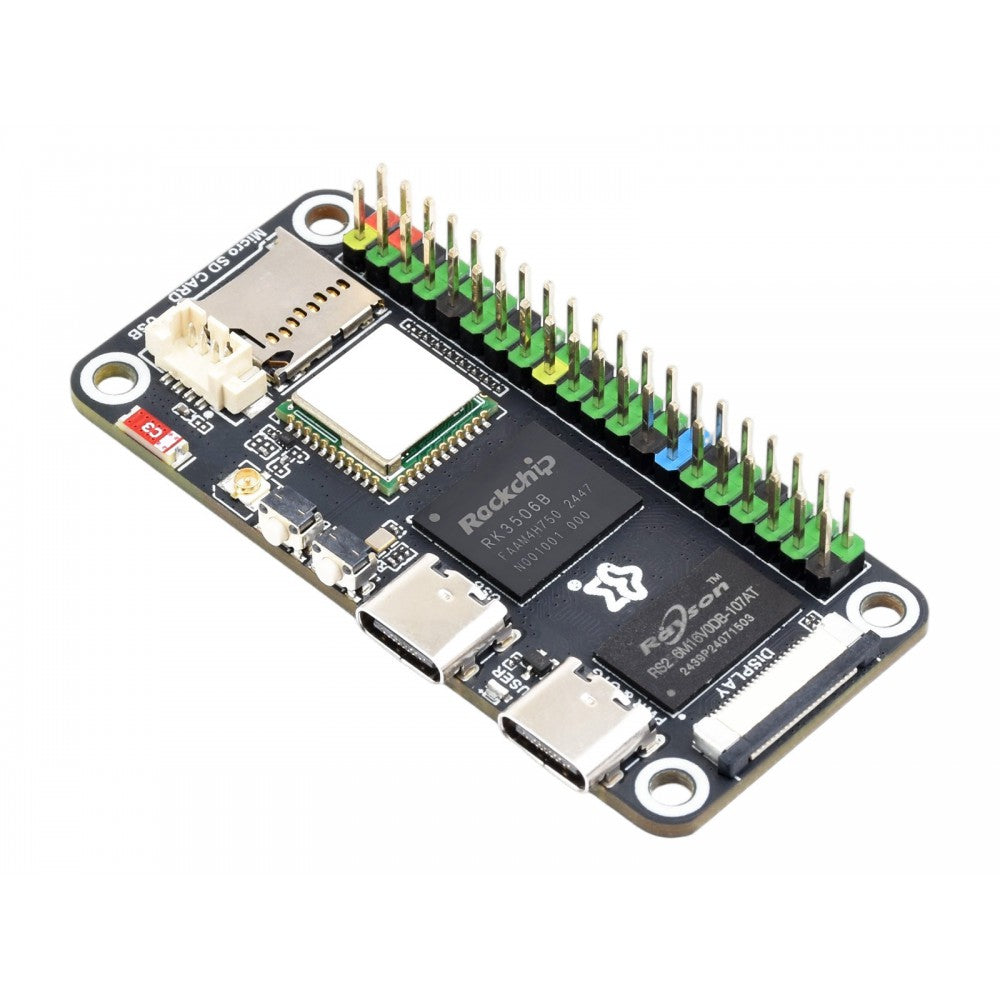

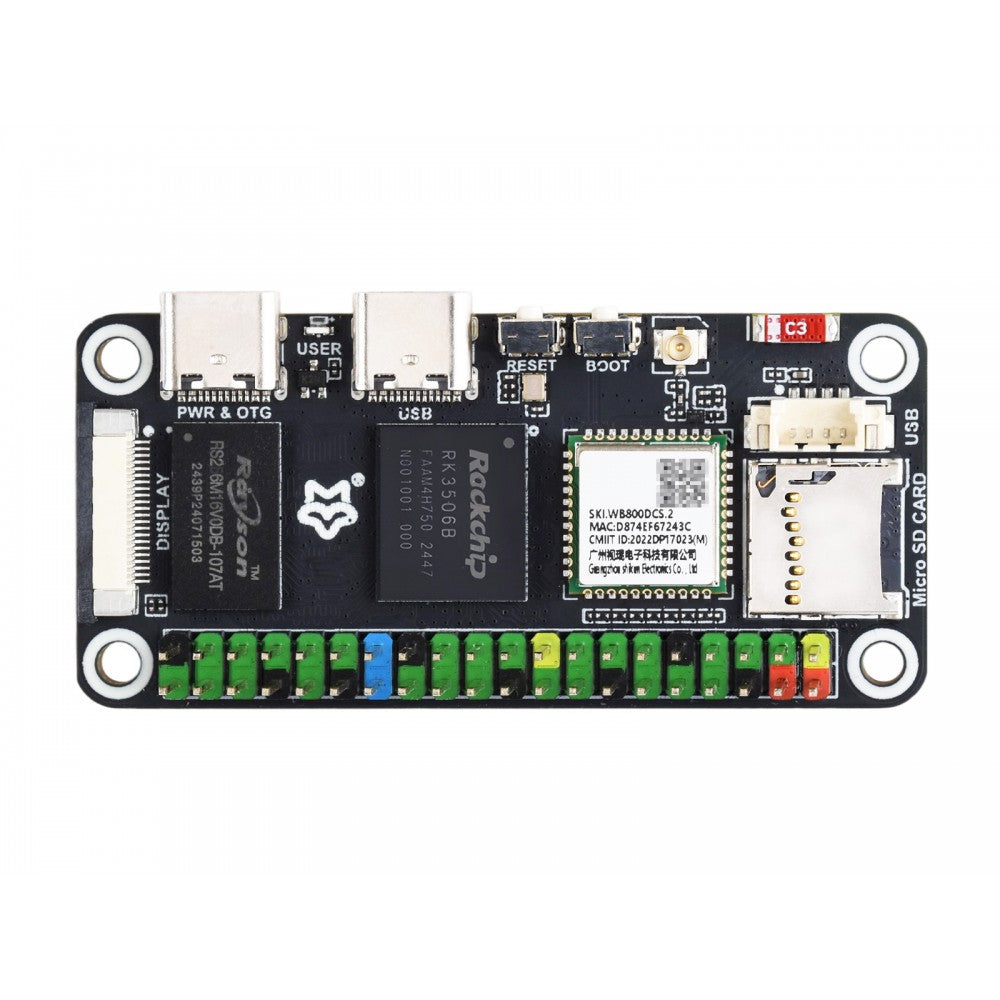

Luckfox Lyra Zero W, onboard components

  1. USB-C OTG0 port - for power supply and program burning
  2. USER-LED - for indicating system operation status in the default image
  3. USB-C HOST port - for connecting USB peripherals
  4. RESET button
  5. BOOT button - Press it when powering on or resetting to enter download mode
  6. Antenna connector
  7. Onboard antenna
  8. DSI display interface - MIPI DSI 2-lane
  9. 512MB DDR3L
  10. RK3506B - Multi-core heterogeneous SoC with built-in Triple-core ARM Cortex-A7 + ARM Cortex-M0
  11. Wi-Fi / Bluetooth module - 2.4G Wi-Fi 6 / Bluetooth 5.2 / BLE module
  12. MX1.24 4P header - can be converted to USB-A HOST port or used for LCD screen power input
  13. TF card slot
  14. 40 pin GPIO header - Compatible with some Raspberry Pi HATs

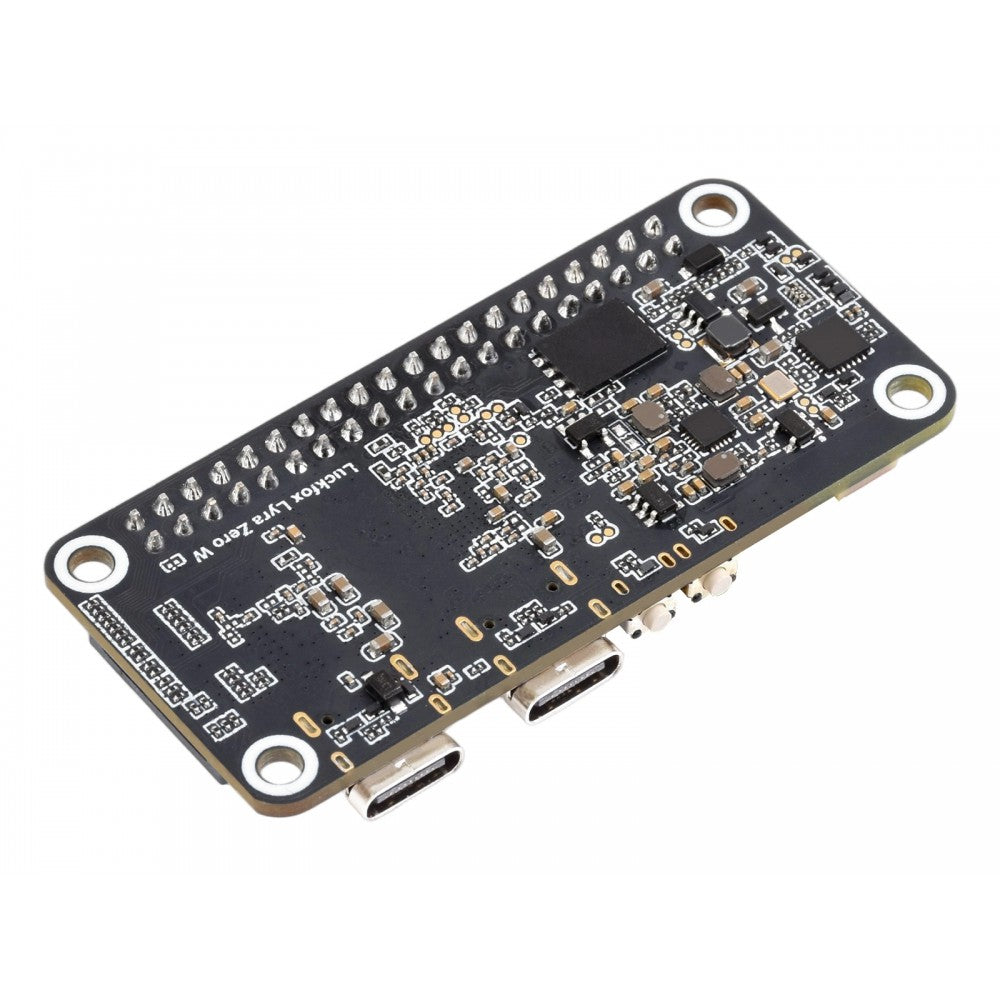

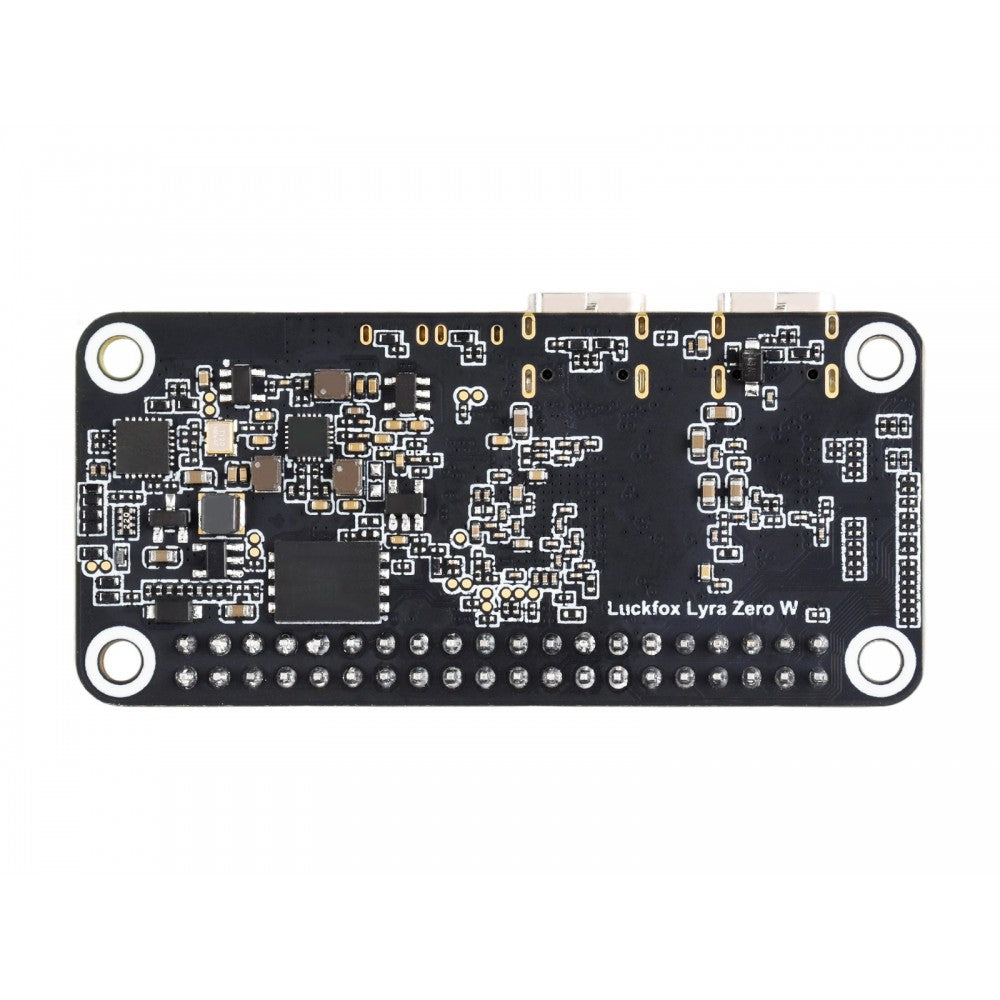

Luckfox Lyra Zero W, onboard components

    1. USB HUB chip
    2. PMIC - 3-ch power management IC
    3. W25N02KV - 256MB SLC NAND Flash

    Outline Dimensions

    Luckfox Lyra Zero W, outline dimensions
