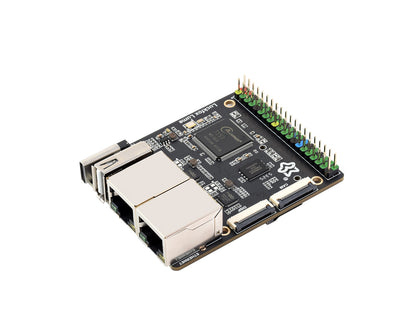

Luckfox Lume Industrial Linux Development Board

Luckfox Lume Industrial Linux Development Board

In stock

$35.00 AUD
$35.00 AUD
Sale Sold out
Shipping calculated at checkout.
Version

Based on the Allwinner T153 Multi-core Heterogeneous Industrial Processor

Luckfox Lume Linux Micro Development Board, features

Version Options

Luckfox Lume

Standard

Luckfox Lume PoE Kit

PoE Kit

Specifications

Processor Quad-core Arm Cortex-A7 + Single-core RISC-V E907
Memory 128MB DDR3
Storage SPI NAND FLASH (256MB)
Display Interface MIPI DSI 4-lane
Camera Interface MIPI CSI 2-lane
USB USB2.0 Type-C port × 1,
USB2.0 Type-A port × 1
GPIO 40PIN GPIO header
Ethernet 1000M Ethernet port × 2
External Storage onboard TF card slot
Power Input 5V DC
Others 2PIN SH1.0 RTC batt header

High-Performance Industrial Processor

Features a quad-core Arm Cortex-A7 and a single-core RISC-V E907

Luckfox Lume Linux Micro Development Board, adopts high-performance industrial processor

MIPI DSI 4-lane interface

Powerful performance, easy to drive large screen

Luckfox Lyra Ultra series, with MIPI DSI 4-lane interface

* Supports up to 1920 × 1080 at 60Hz resolution. For reference only, the 10.1-DSI-TOUCH-A is NOT included.

Dual Gigabit Ethernet Ports

Supports dual-port policy-based routing, enabling physical isolation between internal and external network traffic, ensuring critical data security and improving management efficiency
Luckfox Lume Linux Micro Development Board, onboard dual gigabit Ethernet ports

Note: The PoE module is required for ETH0 PoE power supply function.

Onboard TF/SD Card Slot

Allows storage expansion via TF card
Luckfox Lume Linux Micro Development Board, onboard TF card slot
Suitable for more application examples
Luckfox Lume Linux Micro Development Board, application examples

Pin Definition

Luckfox Lume Linux Micro Development Board, pin definition

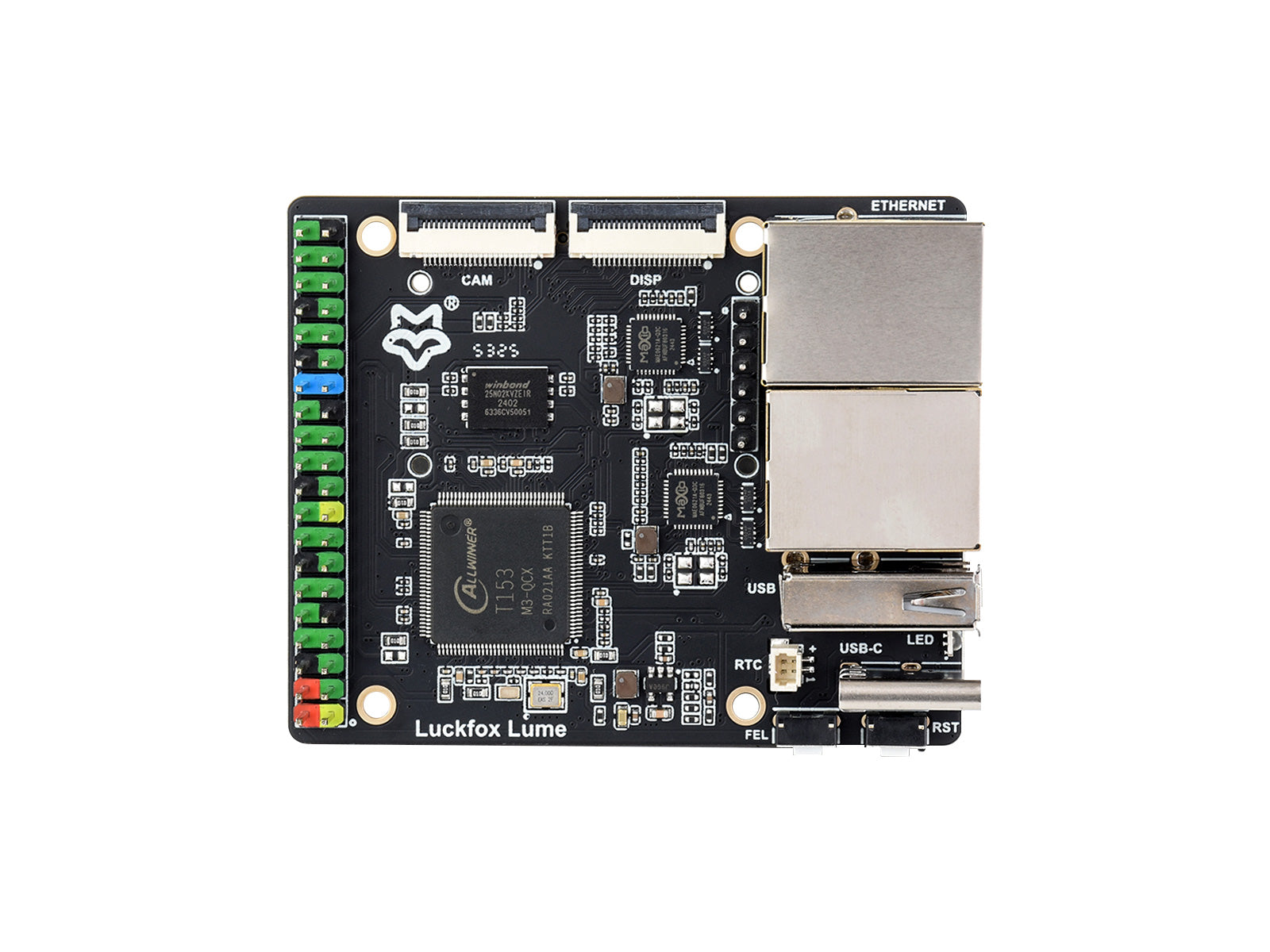

What's On Board

Luckfox Lume Linux Micro Development Board, onboard components
  1. T153M3-QCX
  2. SPI NAND FLASH (256MB)
  3. CSI camera interface
  4. DSI display interface
  5. RJ45 1000M Ethernet port with indicator
    with PoE support
  6. RJ45 1000M Ethernet port with indicator
  7. PoE module header
  8. USB2.0 HOST Type-A port
  9. Dual-color status LED
    The red light indicates power supply status, and the green light indicates system operation status in the default image.
  10. Type-C port
    for power supply and program burning
  11. RESET button
  12. FEL button
    Press it when powering on or resetting to enter download mode
  13. RTC Batt header
  14. 40PIN GPIO header
  15. TF card slot

    Outline Dimensions

    Luckfox Lume Linux Micro Development Board, outline dimensions
    Documentation: https://wiki.luckfox.com/Luckfox-Lume
