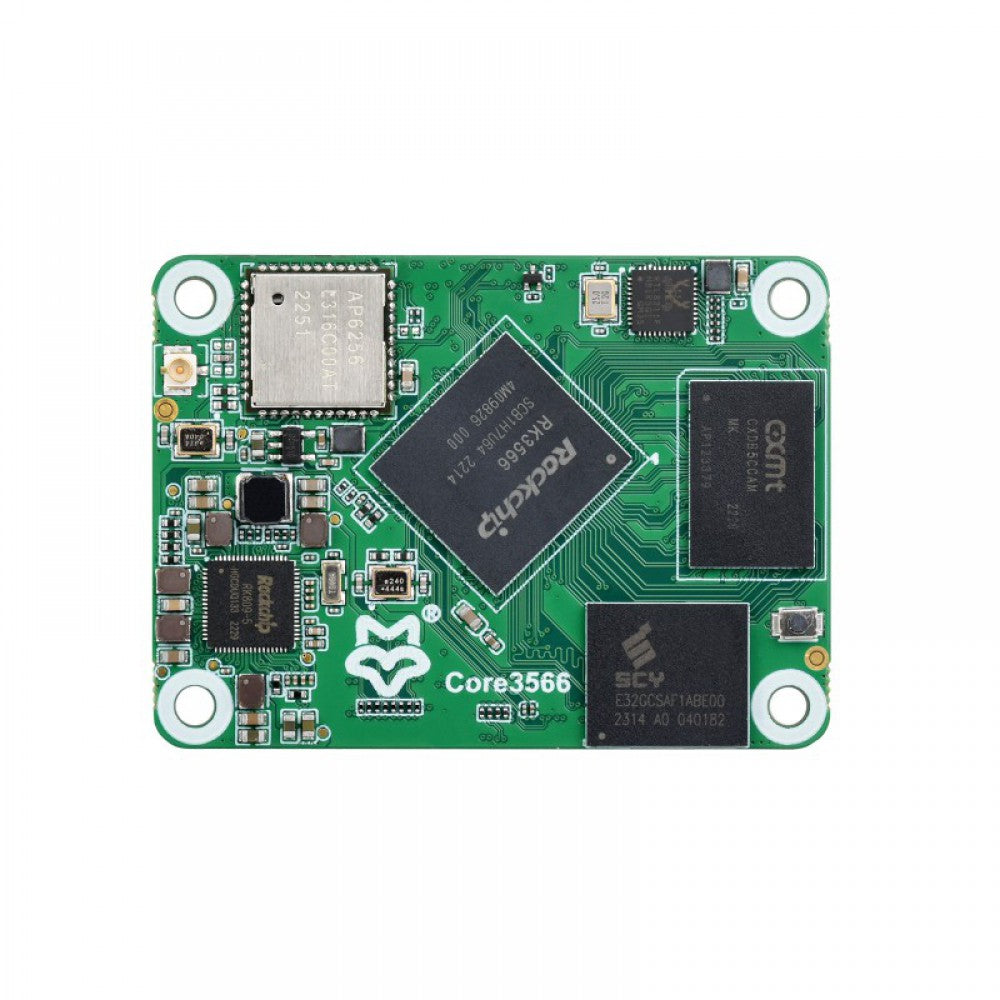

Luckfox Core3566 CM4 Compute Module (Wi-Fi, 2GB RAM, 32GB eMMC)

Overview

A compact module that incorporates a Rockchip RK3566 quad-core ARM Cortex-A55 processor, dual-core ARM G52 GPU, VPU, NPU, supports video output, PCIe, CSI and other interfaces.

This module is perfect for embedded applications and available in a variety of configurations.

The baseboard connections are standard CM4, compatible with baseboards that accept Raspberry Pi and related modules.

Configuration Code: "Core3566102032"

Specifications

• Processor: Rockchip RK3566
• Architecture: Cortex-A55

• NPU: 0.8 TOPS @ INT8
• GPU: ARM Mali G52
• RAM: 2GB LPDDR4
• Camera: 2x MIPI CSI 2-lane )via Baseboard)
• Display: HDMI (4K 60fps), 2x MIPI DSI 2-lane (via Baseboard)
• USB: 1x 2.0 (via Baseboard)
• GPIO: 28 Pins (via Baseboard)
• PCIe: via Baseboard
• Wifi: Wireless AC (Dual-Band) with Bluetooth 5.0 BLE
• Antenna: External, included
• Ethernet: Gigabit (via Baseboard)
• Storage: 32GB eMMC Onboard, or Micro SD (via Baseboard)
• Power: 5V DC (via Baseboard)
• Operating Temp: -10 to 80C
• Dimensions: 55 x 50 x 4.7mm

Wiki: https://wiki.luckfox.com/Core3566/Core3566-quick-start/
