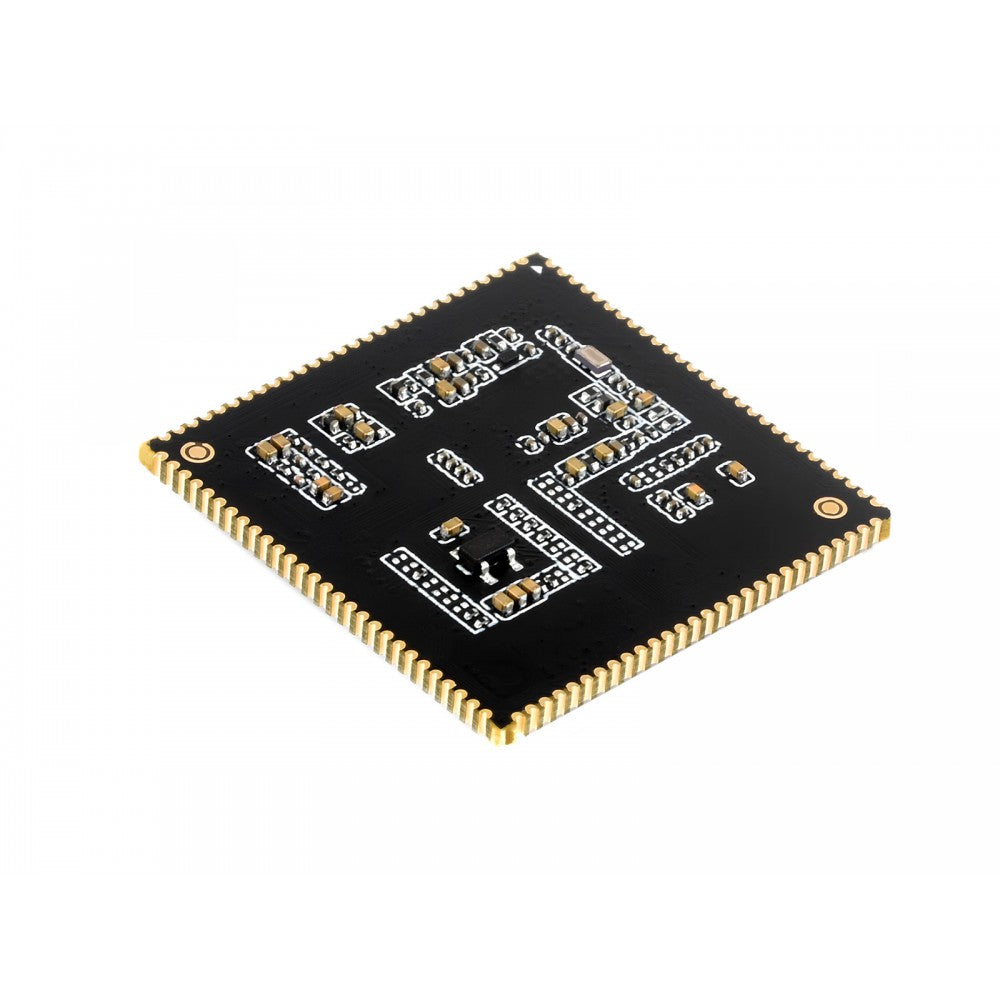

Luckfox Core1106 - 1.2GHz ARM, 8GB eMMC, 10/100Mbps PHY Core Board
Luckfox Core1106 - 1.2GHz ARM, 8GB eMMC, 10/100Mbps PHY Core Board
Low stock
Regular price
$28.95 AUD
Regular price
Sale price
$28.95 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Core1106 is a core board based on the Rockchip RV1106 series chips, featuring high performance and high expandability, provides a convenient platform for developers to design their own hardware, enabling quick design verification or direct integration into products, thereby shortening the R&D cycle.
Adapting various interfaces via castellated holes, such as MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB, Ethernet port, and SDIO, etc. which is suitable for a variety of application scenarios. Optional for wireless module, with two core options of RV1106G2 and RV1106G3 to meet different needs.
- Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS, and RV1106G2 is 0.5TOPS
- Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
- Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, which can save more than 50% bit rate of the conventional CBR mode, enabling high-definition video quality while efficiently utilizing storage space
- Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
Model | Core11060208 | Core11061208 | Core11060408 | Core11061408 |
CPU | RV1106G2 | RV1106G3 | ||
Processor | Cortex A7 @1.2GHz | |||
NPU | 0.5TOPS, supports int4, int8, int16 | 1TOPS, supports int4, int8, int16 | ||
ISP | Supports input 5M@30fps | |||
Video encoding | Hardware encoding, supports MJPEG, H264, H265 | |||
Memory | 128MB DDR3L | 256MB DDR3L | ||
Display interface | Parallel RGB 18-bit × 1 | |||
Camera interface | MIPI CSI 2-lane × 2 or MIPI CSI 4-lane × 1 | |||
Microphone | Analog differential MIC interface × 2 | |||
Audio output | LINEOUT × 1 | |||
USB | USB 2.0 Host/Device | |||
WIFI/Bluetooth | / | 2.4 GHz WIFI 6 and Bluetooth 5.2/BLE | / | 2.4 GHz WIFI 6 and Bluetooth 5.2/BLE |
Ethernet port | 10/100M Ethernet controller and embedded PHY | |||
Default storage | eMMC5.1 (8GB) | |||
Other resources | I2S × 3, I2C × 5, SPI × 2, SDIO × 2, ADC × 2, UART × 6, PWM × 12 | |||
Dimensions | 30 × 30 (mm) | |||
Castellated holes | 112 Pin |
- Some pin resources are multiplexed, please refer to wiki for detailed pin definitions.
Documentation: https://wiki.luckfox.com/Core1106/
