Infrared Detection Module

Infrared Detection Module

Regular price $1.00 USD
Regular price Sale price $1.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

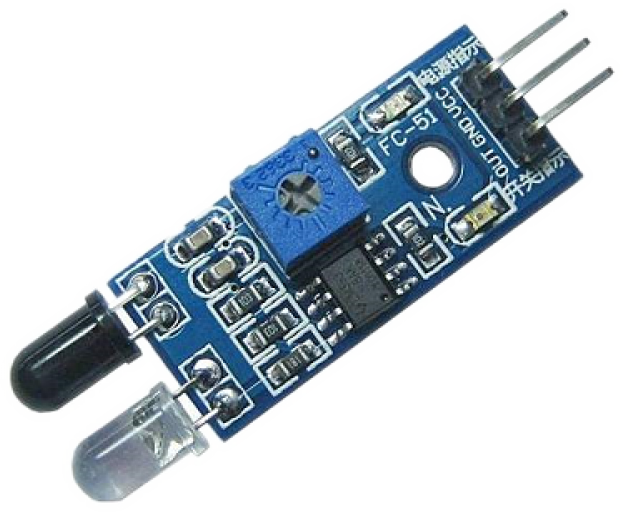

IR Detector Module has a built-in IR transmitter and IR receiver that transmits and then looks for reflected IR light to detect the presence of any obstacle in front of it.

The module has an onboard potentiometer that lets the user adjust the detection range with good and stable response even in ambient light or in complete darkness.

The sensor module can be interfaced with Arduino, Raspberry Pi, or any microcontroller having an IO voltage level of 3.3V to 5V.


  • Operating Voltage: 3.0V - 6.0V
  • Detection angle: 35 °
  • Detection range: 2cm – 30cm (Adjustable using potentiometer)
  • Active output level: Outputs Low logic level when the obstacle is detected
  • In-active output level: Outputs High logic level when the obstacle is not detected
  • Current Consumption: at 3.3V : ~23 Ma at 5.0V: ~43 mA
