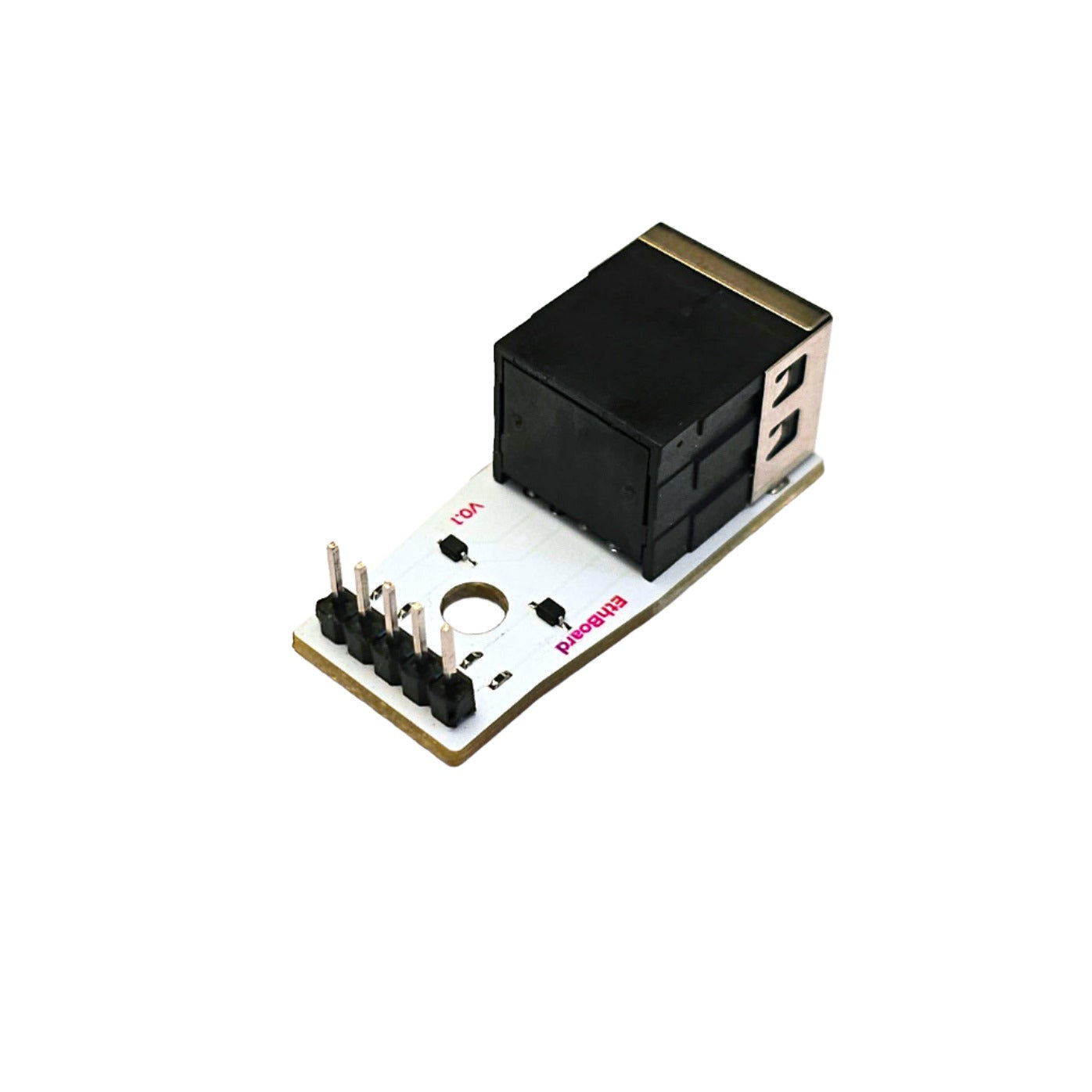

Ethernet Board for Milk-V Duo and Luckfox Pico

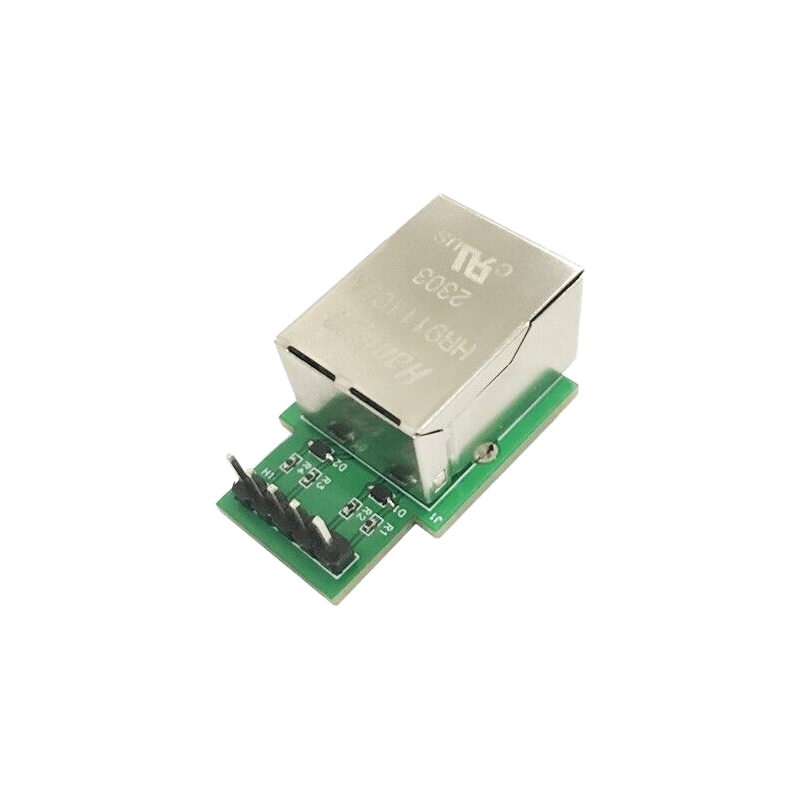

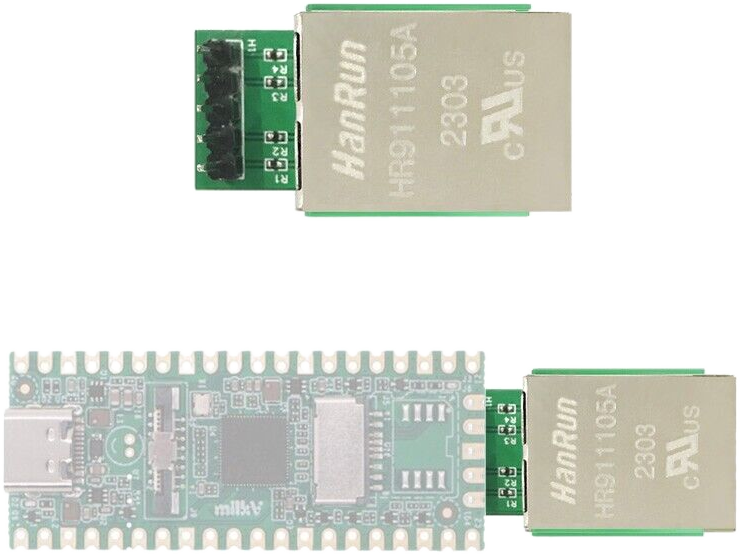

The currently available boards, including the ones I was selling, were too expensive and butt-ugly.

UPDATE: Shipping was breaking when these were added to cart, as they were set to 7kg instead of 7g. Fixed now. Sorry!

I designed this to be nicer and neater, removing unnecessary cost and complexity.

The current (v0.1) design has a hidden Easter egg too.

Luckfox Pico Mini A/B images with ethernet enabled are available here: https://github.com/platima/sbc-images/tree/main/Luckfox/Pico

These are hand soldered, so the solder may not be 100% perfect, but I test each one before shipping.

End 1: RJ45 Connector

End 2: 5-pin 2.54mm Pitch Headers, Straight, Optionally not soldered.
