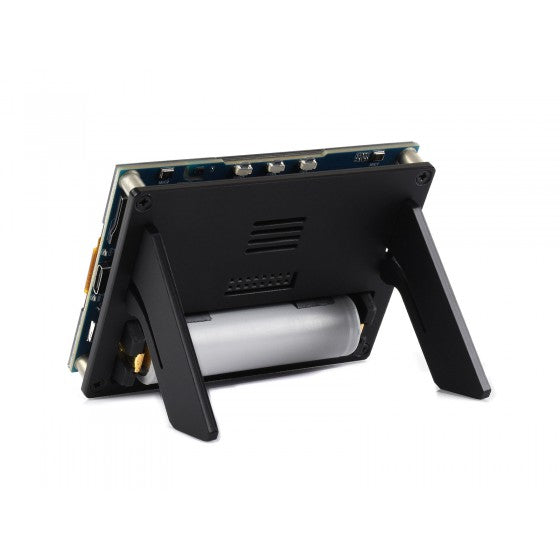

ESP32-S3 4.2inch RLCD Development Board

ESP32-S3 4.2inch RLCD Development Board

In stock

$43.00 AUD
$43.00 AUD
Sale Sold out
Shipping calculated at checkout.

Overview

ESP32-S3 4.2inch RLCD development board. E-paper-like Reading Experience, Faster Refresh Response. AI Voice Interaction, Temperature & Humidity Monitoring, DIY Learning & Development
ESP32-S3 4.2inch RLCD Development Board, front view
ESP32-S3 4.2inch RLCD Development Board, features


Features

The ESP32-S3-RLCD-4.2 is a RLCD AIoT development board based on ESP32-S3, supporting Wi-Fi and BLE dual-mode communication. Onboard 4.2inch RLCD with low power consumption, e-paper-like display experience, and faster refresh response. Integrated with audio codec circuit, dual microphones, speaker, SHTC3 high-precision temperature and humidity sensor, TF card slot, RTC header, and Lithium Batt charging and discharging management circuit, etc. Reserved USB, UART, I2C, and multiple GPIO interfaces for easy expansion. Supports AI Voice Interaction, temperature and humidity monitoring, and IoT control, making it suitable for DIY desktop smart ornaments, electronic calendars, AI smart devices, and other applications. Also ideal for product prototyping.

  • Adopts high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), with onboard antenna
  • Built-in 512KB Static RAM, 384KB ROM, with integrated 16MB Flash and 8MB PSRAM
  • Onboard 4.2inch RLCD, 300 × 400 resolution, features reflective imaging and no backlight required
  • Equipped with a dual-microphone array, enabling audio algorithms such as noise reduction and echo cancellation, suitable for accurate voice recognition and near-field / far-field voice wake-up applications
  • Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
  • Onboard 18650 Lithium Batt holder and RTC backup Batt header. The RTC backup Batt header supports a rechargeable RTC Batt and dual modes of main Batt power supply and RTC independent power supply
  • Onboard TF card slot for external storage of images or files
  • Onboard programmable KEY and BOOT side buttons for customized function development
  • Reserved 2 × 8PIN 2.54mm pitch female header for convenient external expansion

Specifications

Display panel RLCD Display size 4.2inch
Resolution 300 × 400 Grey scale 2
Interface SPI Display Mode reflective
Driver IC ST7305 Display color black, white

Onboard audio codec chip

Supports high-quality audio processing, providing clear and high-quality audio input and output

ESP32-S3 4.2inch RLCD Development Board, onboard audio codec chip

Supports AI Voice Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc

ESP32-S3 4.2inch RLCD Development Board, explains the process of AI Voice Interaction

Reflective Liquid Crystal Display

The Reflective Liquid Crystal Display (RLCD) is a specialized type of LCD that efficiently utilizes ambient light (such as natural sunlight or indoor illumination) instead of a backlight, achieving both energy efficiency and environmental friendliness. Thanks to its reflective design, RLCDs perform exceptionally well in bright environments, where conventional LCDs may suffer from glare and reduced visibility. By effectively reflecting external light, the RLCD can provide a clear, high-quality visual experience.

Application Scenarios

Ideal for DIY desktop smart ornaments, electronic calendars, AI smart devices,
outdoor displays and more

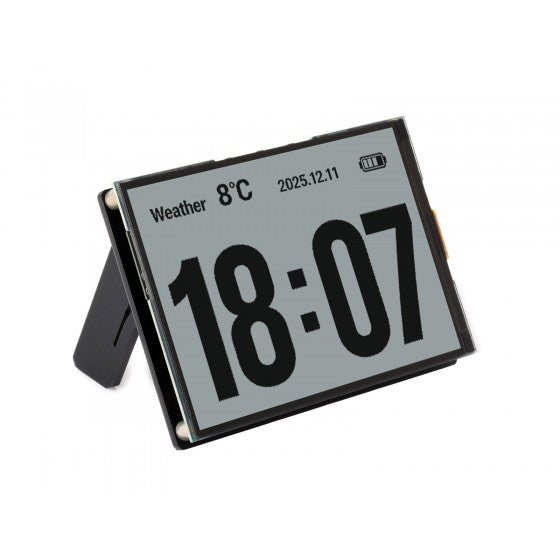

ESP32-S3 4.2inch RLCD Development Board, Electronic calendar

ESP32-S3 4.2inch RLCD Development Board, AI agent

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, dev resources, and tutorials to help you easily get started

ESP32-S3-RLCD-4.2, Supports ESP-IDF ESP32-S3-RLCD-4.2, Supports Arduino

What's On Board

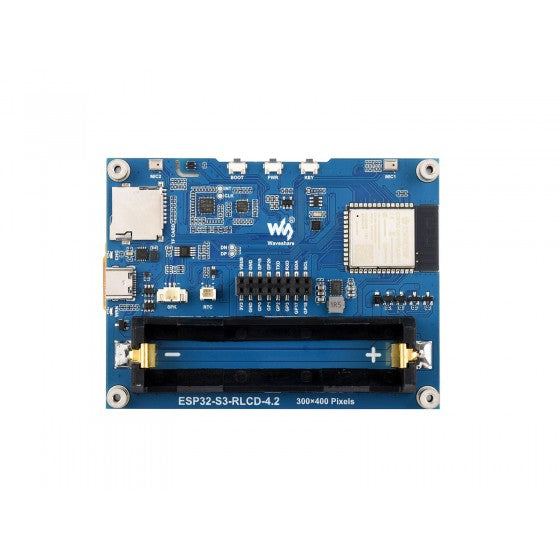

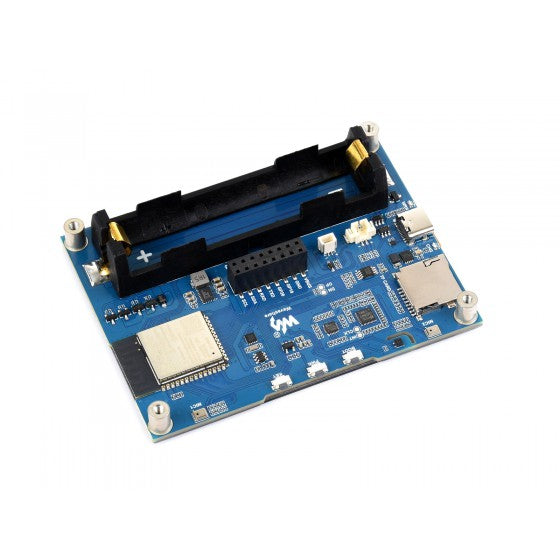

ESP32-S3 4.2inch RLCD Development Board, detailed introduction
  1. ESP32-S3-WROOM-1-N16R8
    The SoC with Wi-Fi and Bluetooth, 240MHz main frequency, integrated with 16MB Flash and 8MB PSRAM
  2. ES7210
    ADC chip for echo cancellation circuit
  3. ES8311
    Low-power audio codec chip
  4. BOOT button
    Press it when powering on to enter download mode
  5. PWR button
    Long press to power off, short press to power on
  6. KEY button
    Customizable for other functions
  7. SHTC3 temperature and humidity sensor
    Provides ambient temperature and humidity measurement, enabling environmental monitoring function
  8. PCF85063
    RTC chip with timekeeping function
  9. MX1.25 2PIN speaker header
    Audio output signal, for connecting external speaker
  10. RTC independent power supply header
    Supports PH1.0 rechargeable RTC Batt only
  11. 2 × 8PIN 2.54mm pitch female header
  12. 18650 Lithium Batt holder
  13. Dual-microphone array design
    Dual-microphone array, paired with ES7210 to achieve echo cancellation
  14. CHG charging indicator
    Off when fully charged
  15. WRN warning indicator
    Stays on when Batt is reverse-connected
  16. Type-C port
    For program burning and log printing
  17. TF card slot
    Supports FAT32 TF card for data expansion

    Pin Definition

    ESP32-S3 4.2inch RLCD Development Board, Pin Definition

    Outline Dimensions

    ESP32-S3 4.2inch RLCD Development Board, outline dimensions

    Package Contents

    ESP32-S3-RLCD-4.2 host x1
    Acrylic stand (2PCS) x1
    8Ω 2W MX1.25 2PIN speaker x1
    Screwdriver x1
    Note: Does not include the LiPo battery required.
    Documentation: http://docs.waveshare.com/ESP32-S3-RLCD-4.2
    View full details
