ESP32-CX Riser v1.1 -Assembled w ESP32-C3 and LED

Overview

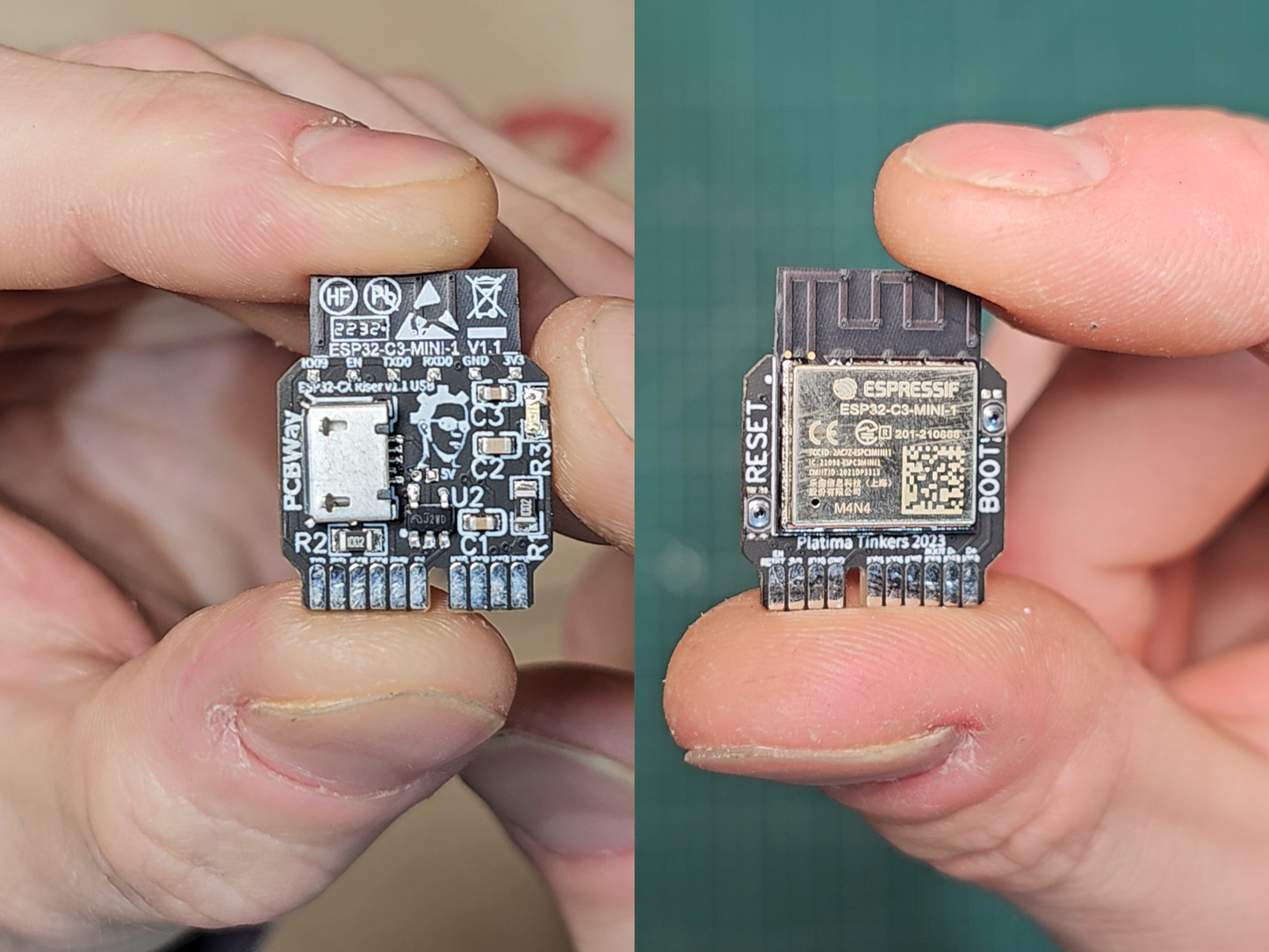

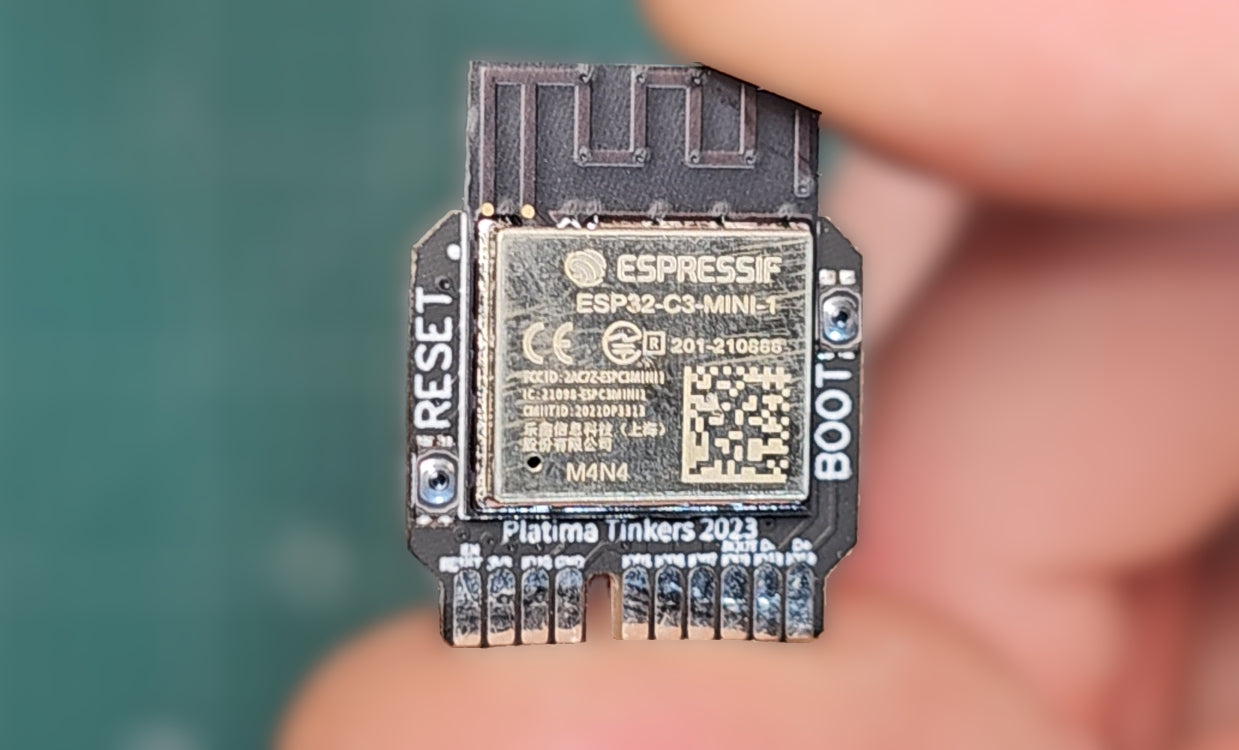

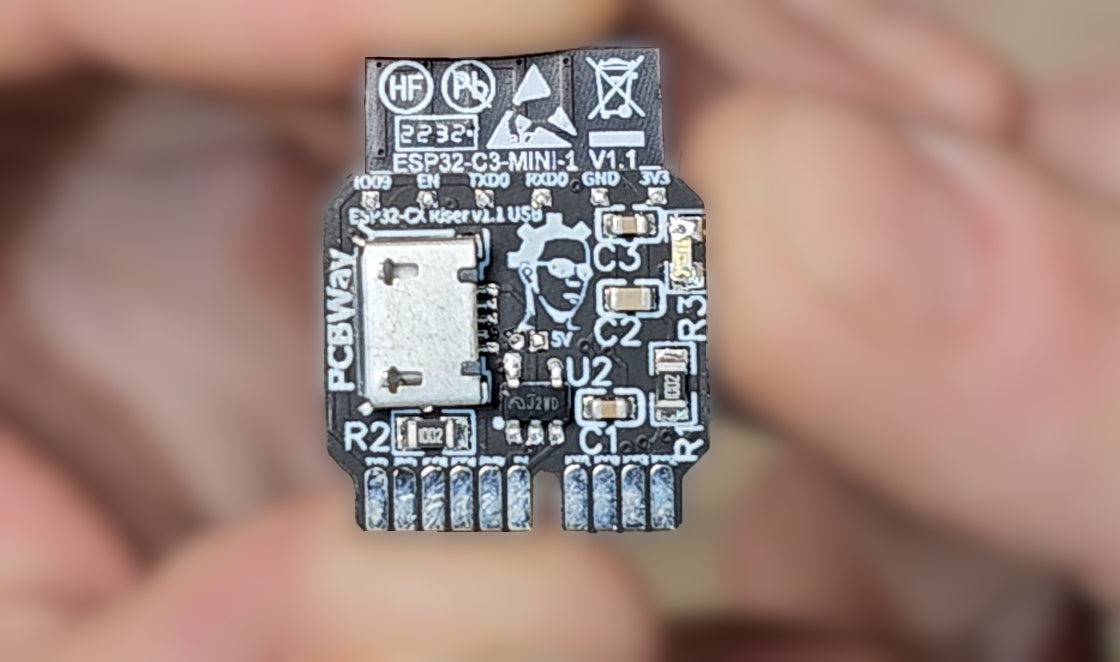

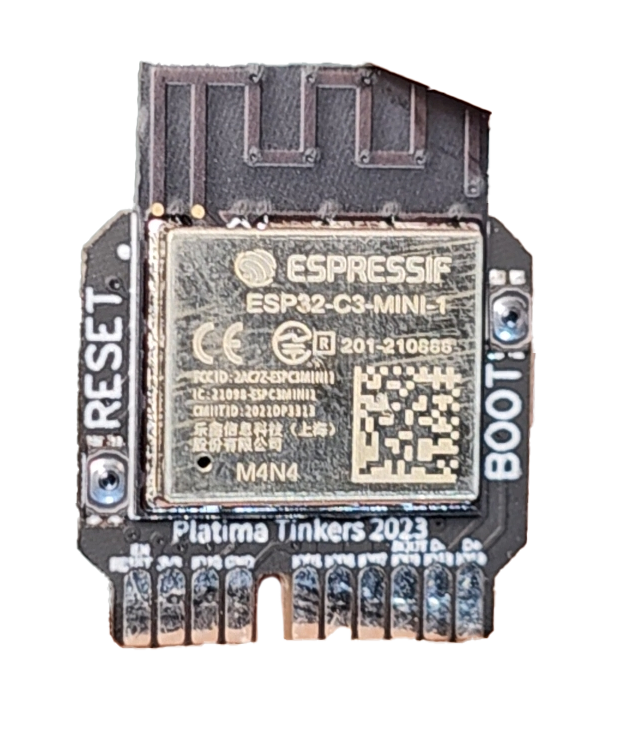

An assembled version 1.1 board with an ESP32-C3-MINI and LED on GPIO8.

You can see the board and related data at https://www.hackster.io/platimatinkers/esp32-cx-riser-board-c0f530 or https://github.com/platima/ESP32-CX-Riser. YouTube video about it: https://youtu.be/GJxwWLoLuj8.

When ordering, the board by default is shipped with no firmware, just erased with 0's from testing. You may optionally choose to have it flashed with ESPHome, MicroPython, or the ESP32 AT firmware.

Specifications

• Size: 16x16mm
• Thickness: 4.4mm
• Material: FR4
• Weight: Nearly nothing
• Colour: Black
• Finish: HASL (w lead)
• Copper: 0.5oz inner, 1oz outer
• Pins:

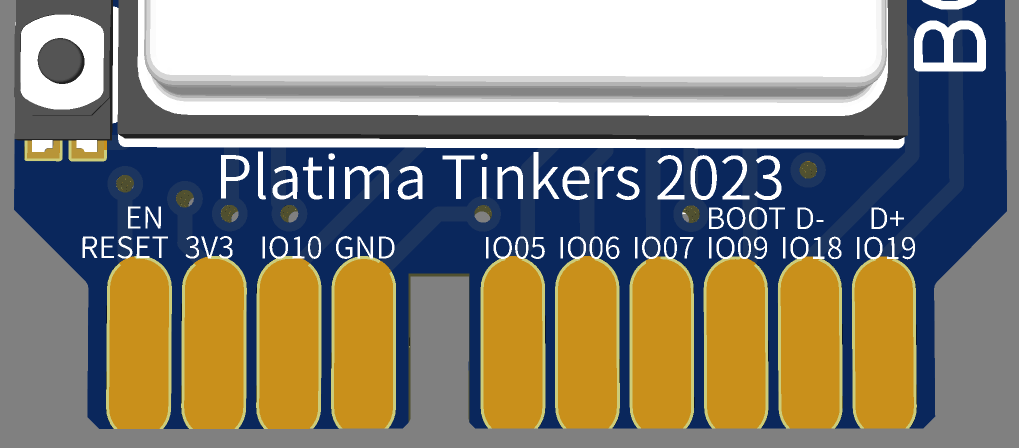

• ESP Side: EN/Reset, 3.3V, IO10, GND, Key, IO05, IO06, IO07, IO09 (BOOT), IO18 (USB D-), IO19 (USB D+)

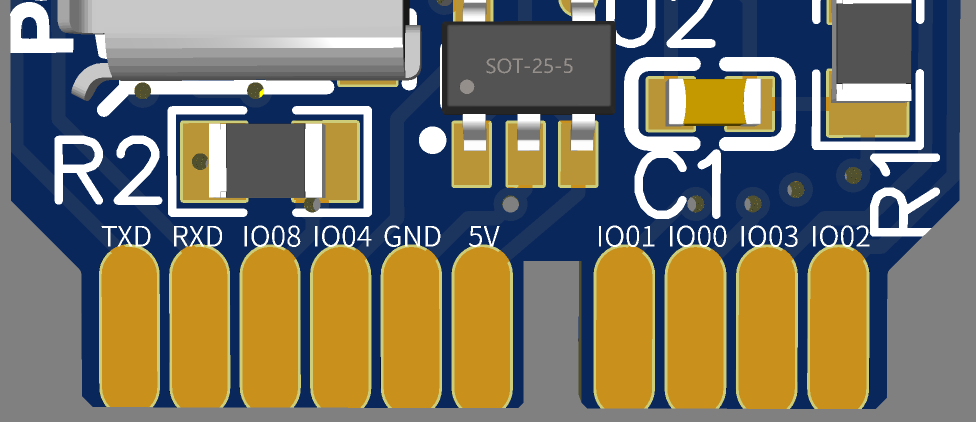

• Component Side: TXD, RXD, IO08, IO04, GND, 5V, IO01, IO00, IO03, IO02
