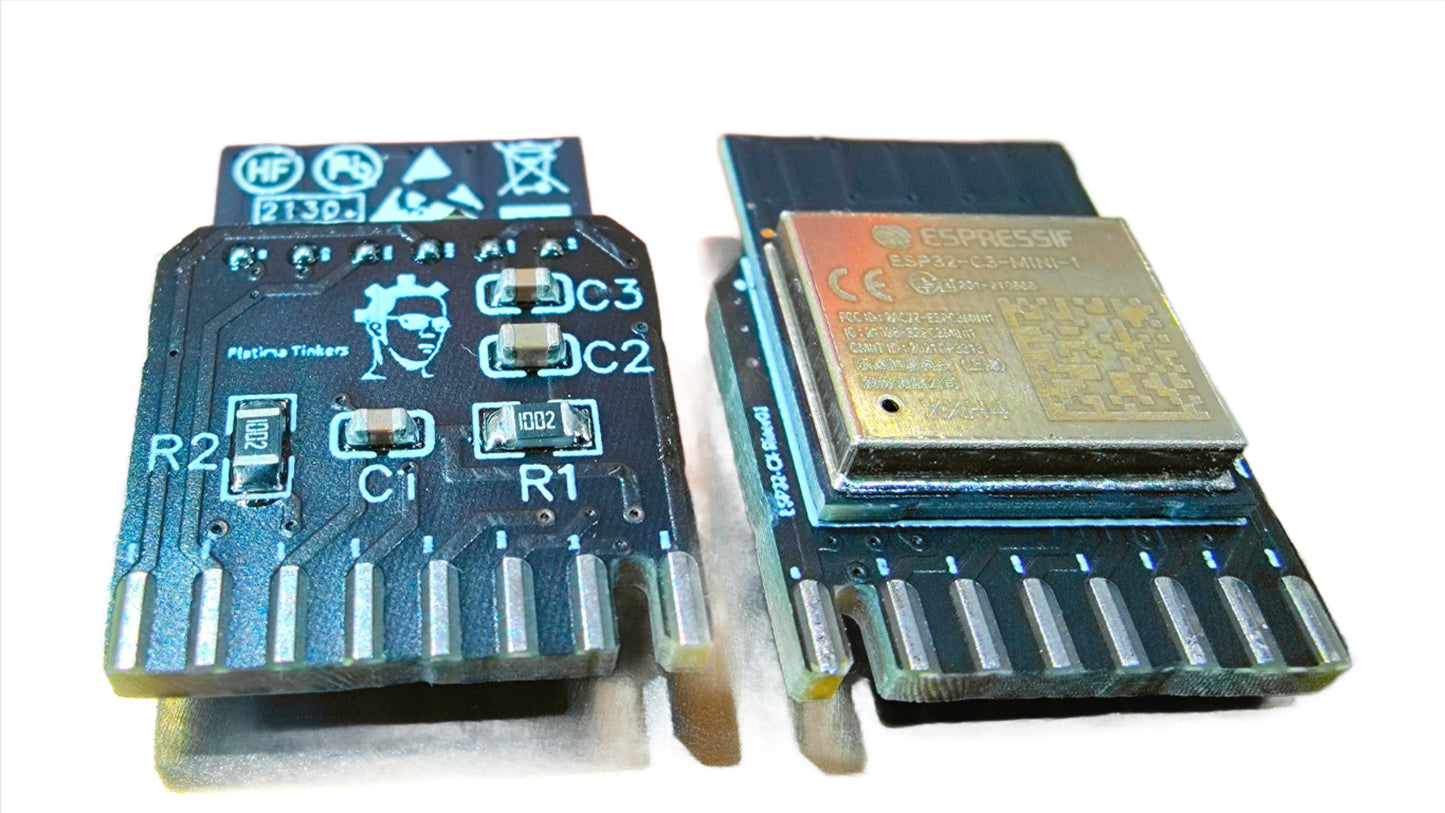

ESP32-CX Riser v1.0 - Assembled w ESP32-C3-MINI-1

ESP32-CX Riser v1.0 - Assembled w ESP32-C3-MINI-1

Low stock: 1 left

Regular price $8.95 AUD
Regular price Sale price $8.95 AUD
Sale Sold out
Shipping calculated at checkout.

Overview

A version of the version 1.0 board functional with an ESP32-C3 chip and supporting components on it.

Details can be found here; https://www.hackster.io/platimatinkers/esp32-cx-riser-board-c0f530 or https://github.com/platima/ESP32-CX-Riser. YouTube video about it: https://www.youtube.com/watch?v=cpVlW9d6p8c.

Specifications

  • Size: 16x22mm
  • Thickness: 5mm
  • Material: FR4
  • Weight: Nearly nothing
  • Colour: Black
  • Finish: HASL (w lead)
  • Copper: 0.5oz inner, 1oz outer
  • Pins:

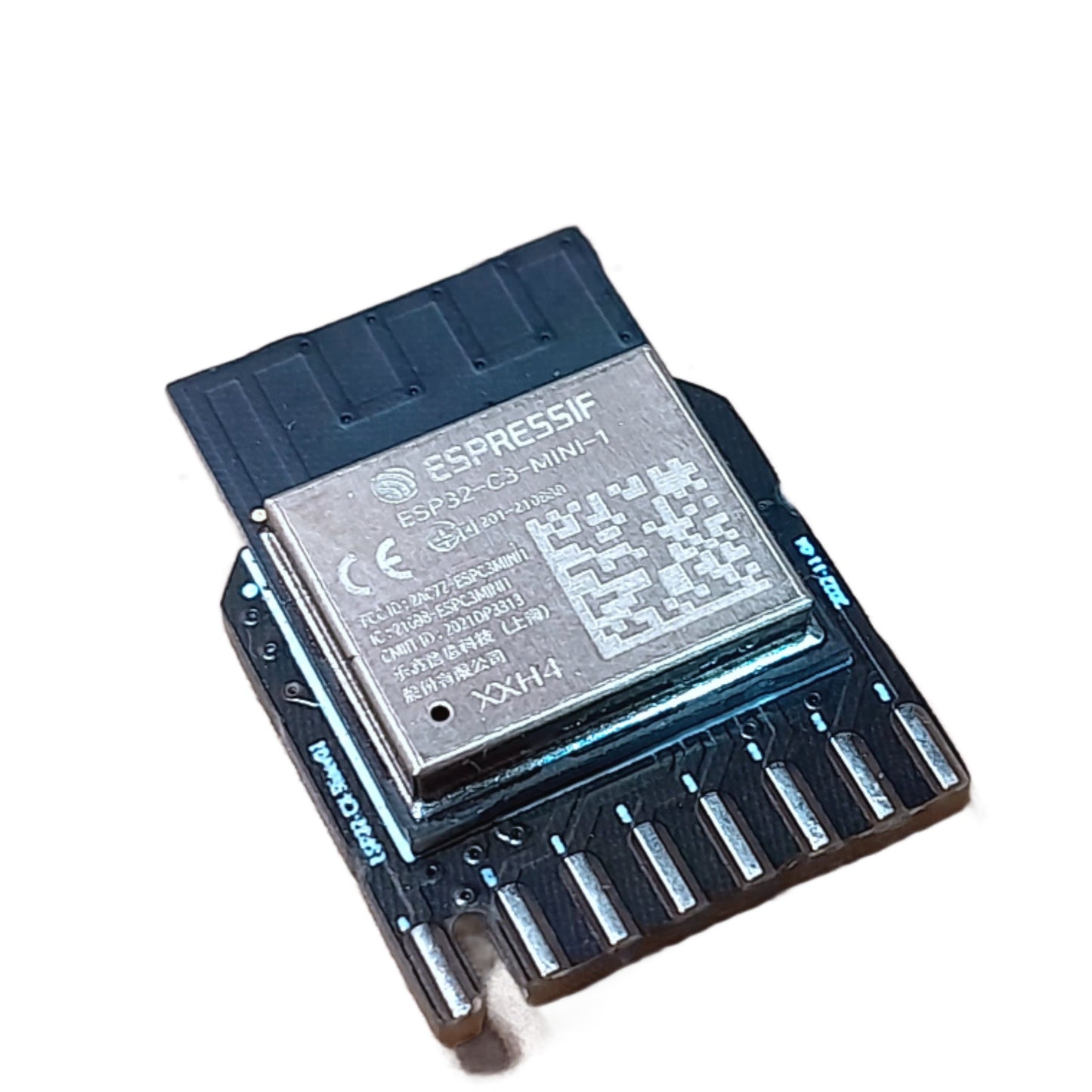

    • ESP Side: EN, Key, IO10, IO05, IO06, IO07, IO09, IO18, IO19

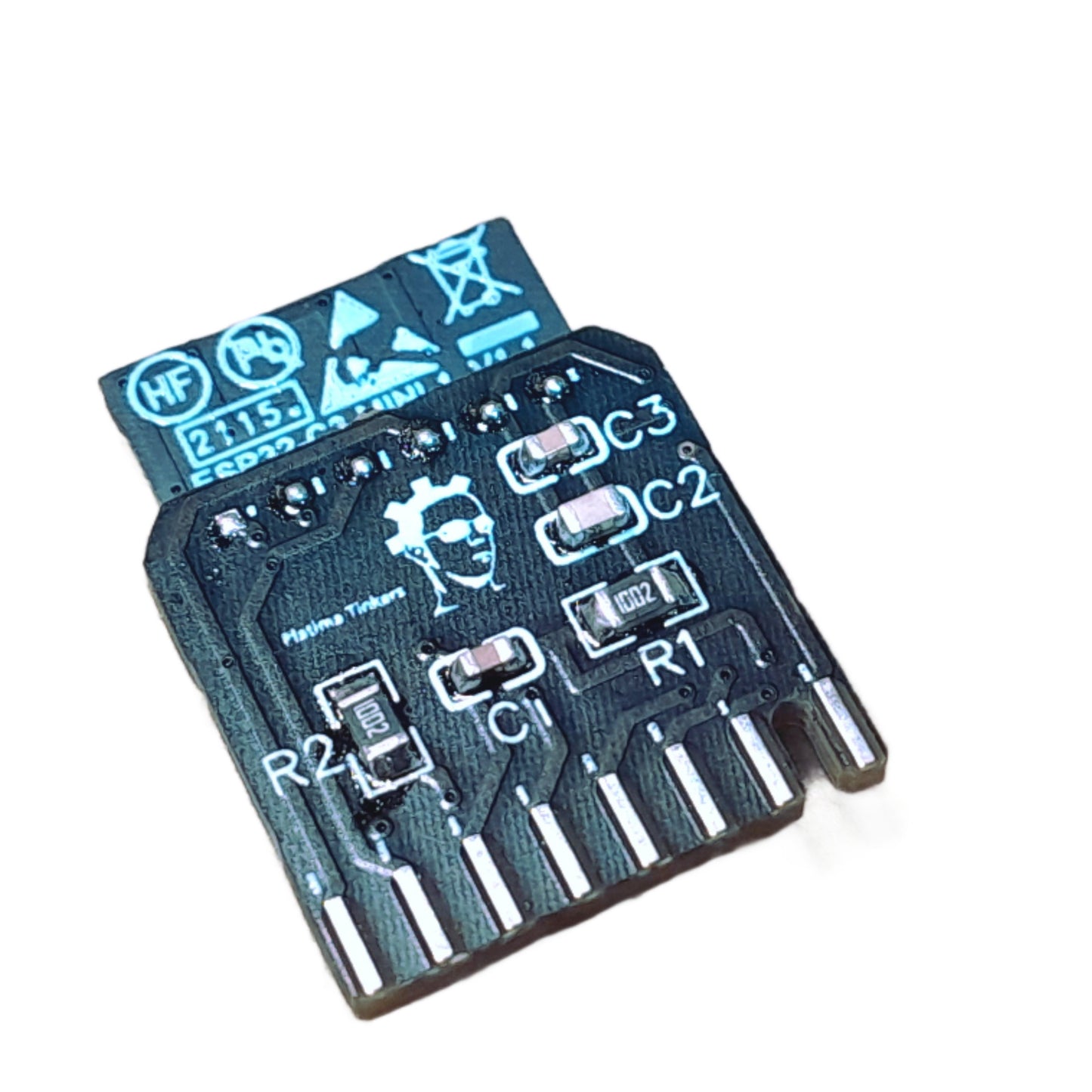

    • Component Side: RXD0, TXD0, GND, IO04, IO01, IO00, 3V3, Key, IO03

NOTE: Does not come with any firmware. If you request ESPHome or MicroPython I can flash it but it will delay shipping.
