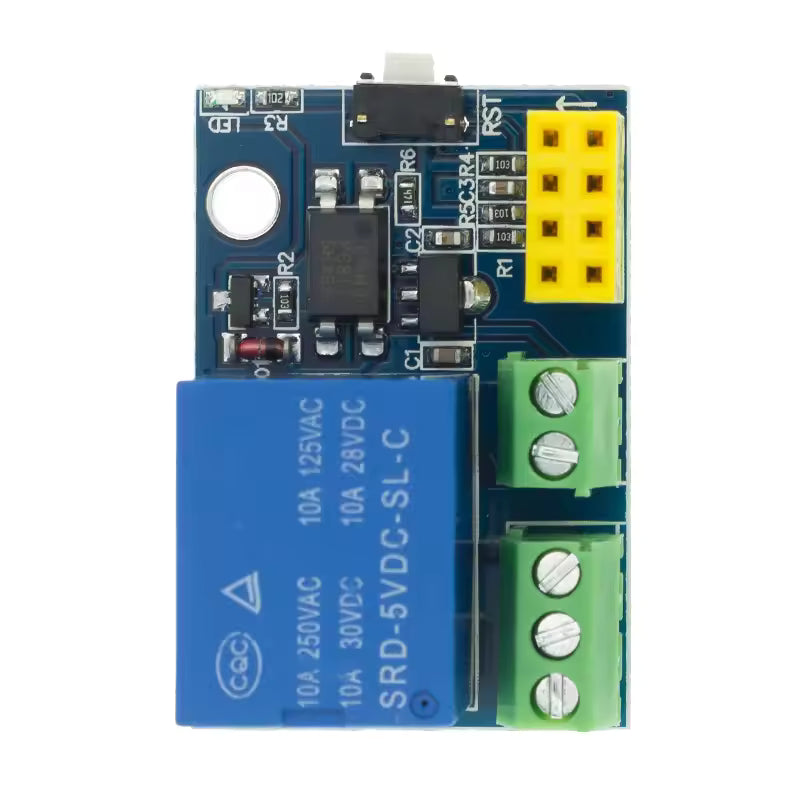

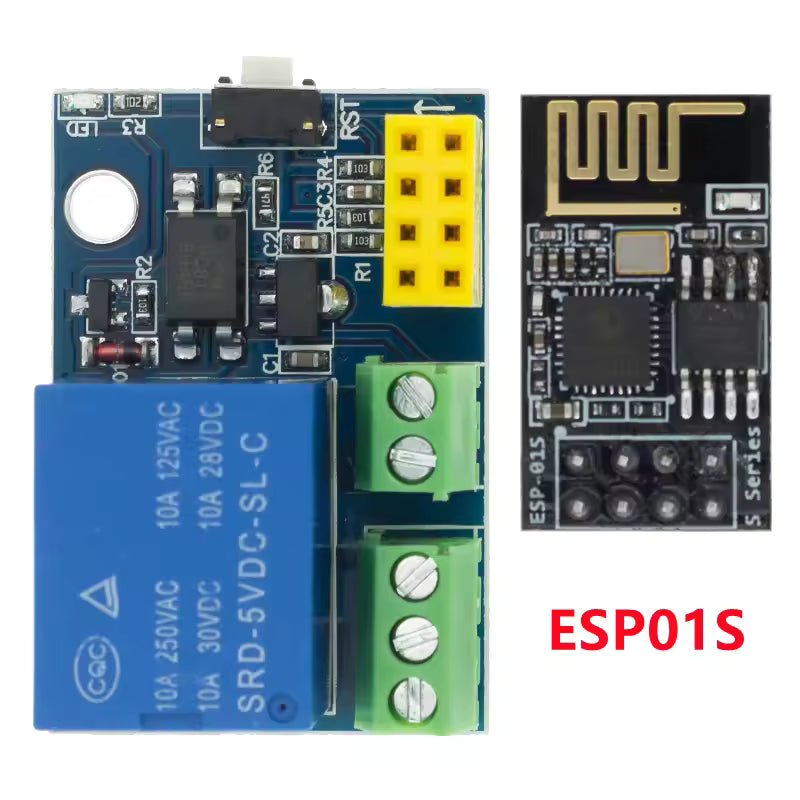

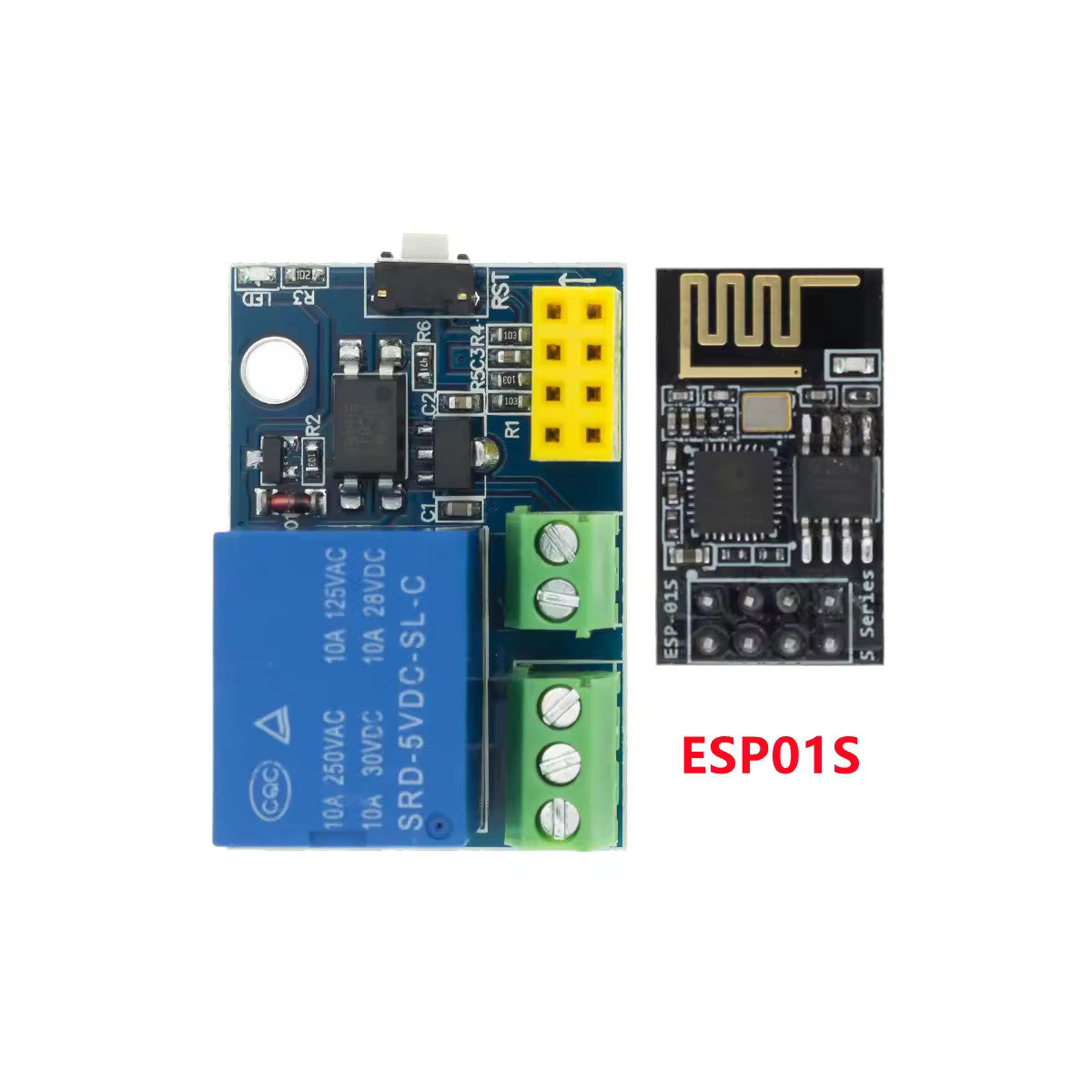

ESP-01S WiFi Relay Module (10A/250VAC, Tasmota/ESPHome Compatible)
ESP-01S WiFi Relay Module (10A/250VAC, Tasmota/ESPHome Compatible)
Low stock
Couldn't load pickup availability
Overview
A compact 5V relay module built around the ESP-01S (ESP8266) WiFi module, designed for smart home and IoT switching applications. Control mains or low-voltage loads remotely over your WiFi network - no hub or proprietary cloud service required when running open firmware.
Compatible with popular open-source firmware including Tasmota and ESPHome, making it a natural fit for Home Assistant and MQTT-based automation setups. The onboard relay is driven via an optocoupler for isolation between the ESP8266 logic and the relay coil circuit.
Specifications
| Module supply voltage | DC 5V |
| Relay load - AC | 10A @ 250VAC / 10A @ 125VAC |
| Relay load - DC | 10A @ 30VDC / 10A @ 28VDC |
| Relay contacts | NO, NC, and COM - suitable for both normally-open and normally-closed wiring |
| Relay model | SRD-5VDC-SL-C (or JQC-3FF-S-Z equivalent) |

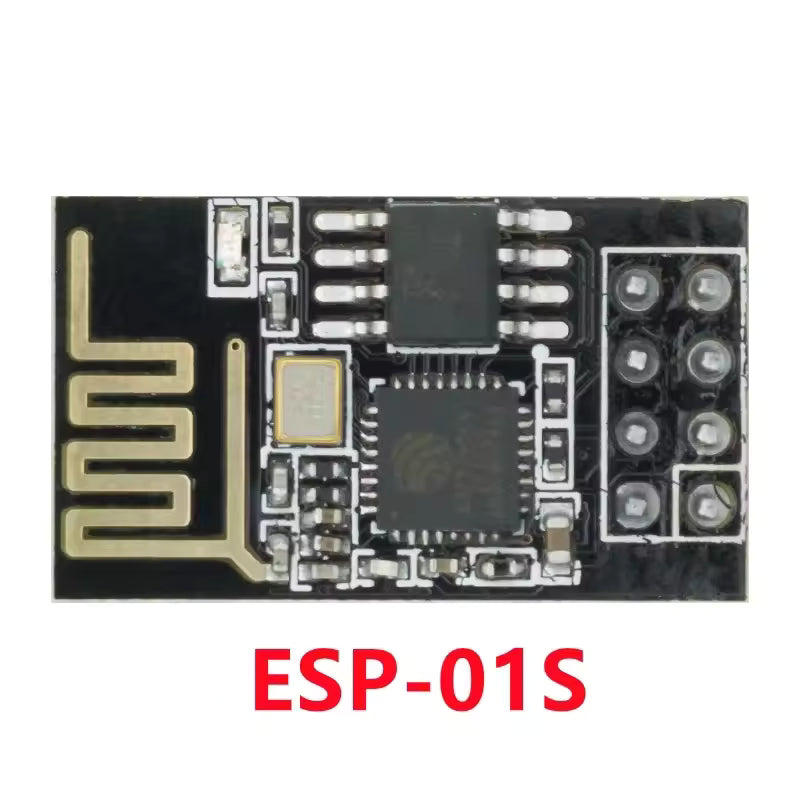

| WiFi module | ESP-01S (ESP8266, 1MB flash) |
| WiFi standard | 802.11 b/g/n, 2.4GHz |
| Relay control | GPIO0 (via onboard optocoupler) |
Common Use Cases
- Smart lighting control (lamps, LED strips via SSR)
- Remotely switched power outlets
- Pump or irrigation control
- Garage door or gate triggers
- Home automation with Home Assistant / MQTT
Firmware & Programming Notes
The ESP-01S ships with basic AT firmware. To use Tasmota or ESPHome you'll need to flash via a USB-to-UART adapter (3.3V logic - a CP2104 works well). To enter flash mode, hold GPIO0 low at power-on. Tasmota's Generic (18) template or a custom ESPHome config with output: GPIO0 for the relay are the typical starting points.
Note: If switching mains voltages, ensure the module is enclosed safely and that wiring is performed by a licensed electrician where required by local regulations.
