DerSpatz PCB Solder Reflow Heat Plate V1.1

DerSpatz PCB Solder Reflow Heat Plate V1.1

Regular price $3.45 AUD
Regular price Sale price $3.45 AUD
Sale Sold out
Shipping calculated at checkout.

An updated version of the original PCB solder reflow plate! I ordered PCBs for myself, and are just selling the spares at cost.

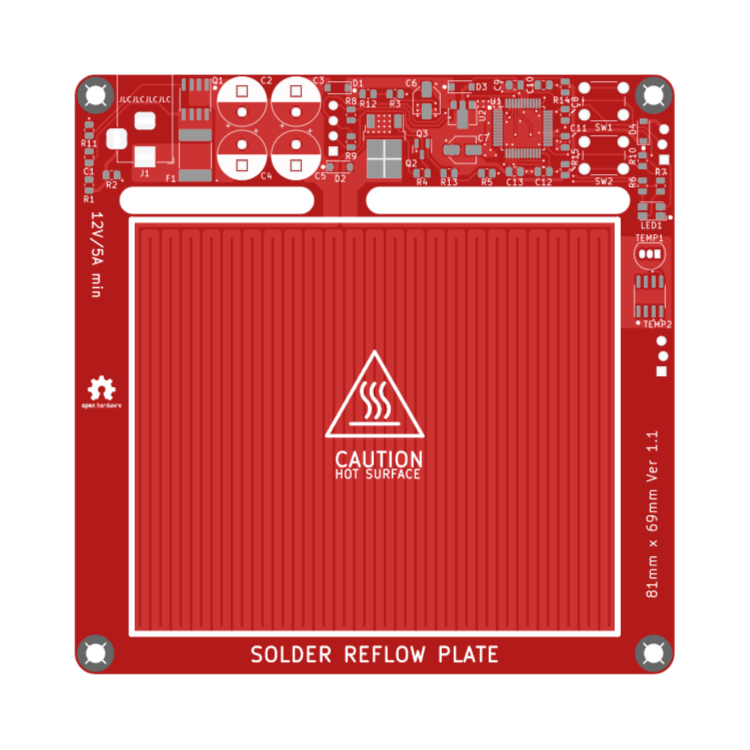

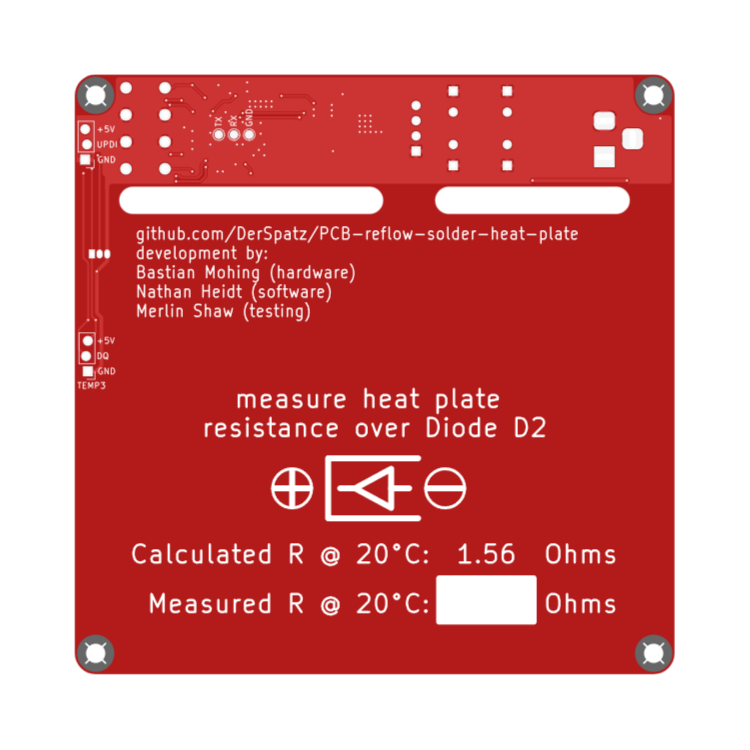

From GitHub: The PCB reflow solder heat plate can be used to solder small PCBs with SMD parts. The user can control the maximum temperature and heating curve. The idea for this design comes from https://github.com/AfterEarthLTD/Solder-Reflow-Plate. But when I checked the original design, I found some issues that could cause safety problems and other design choices that are not optimal.

No components are included, these are the board only. PCB by PCBWay. Component sourcing, soldering and programming will be required

Resources

Specifications

  • Layers: 2
  • Copper: 1 oz
  • Material: FR4 TG150
  • Thickness: 1.6 mm
  • Finish: HASL w Lead
  • Solder Mask: Red
  • Silkscreen: White
  • Dimensions: 100 x 100mm
