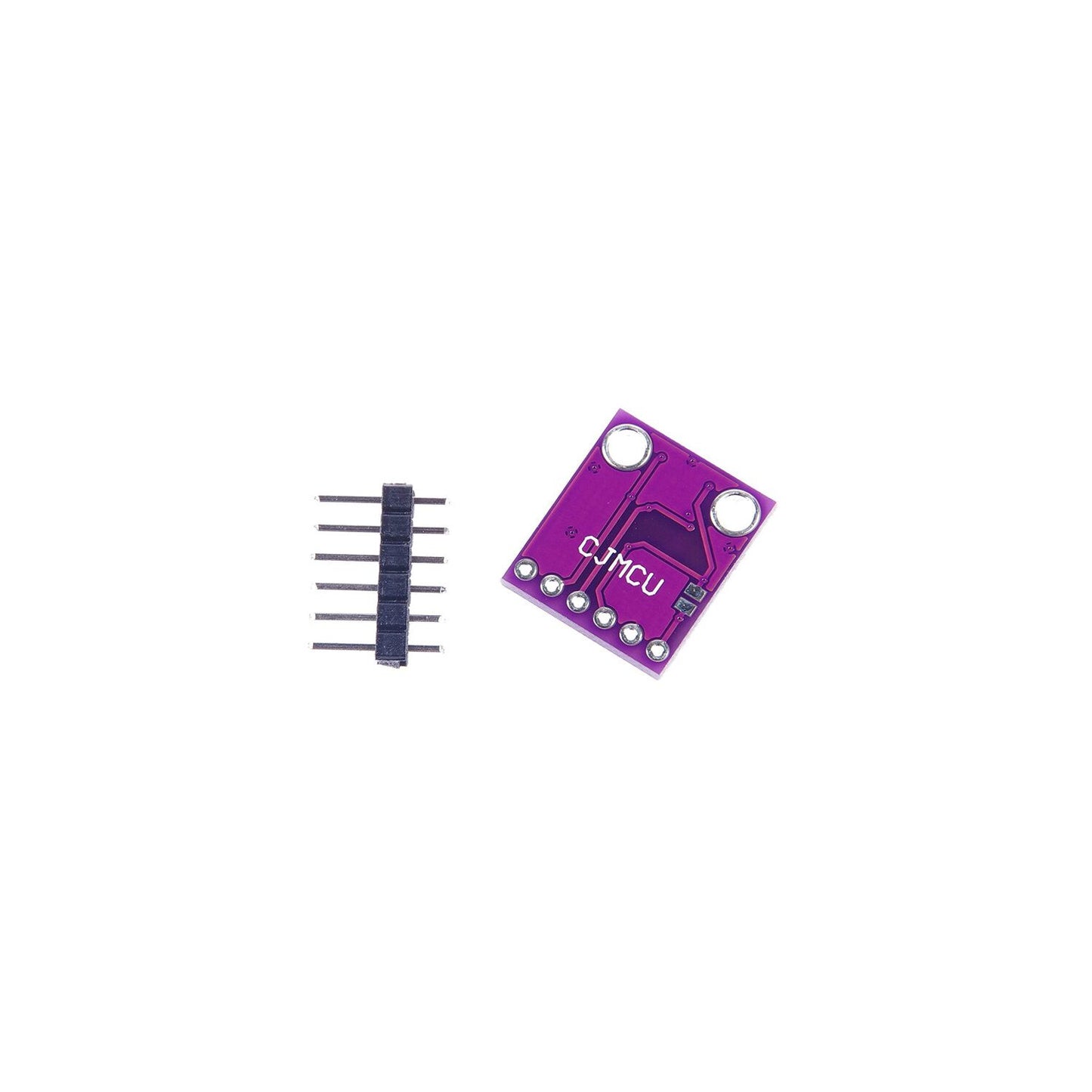

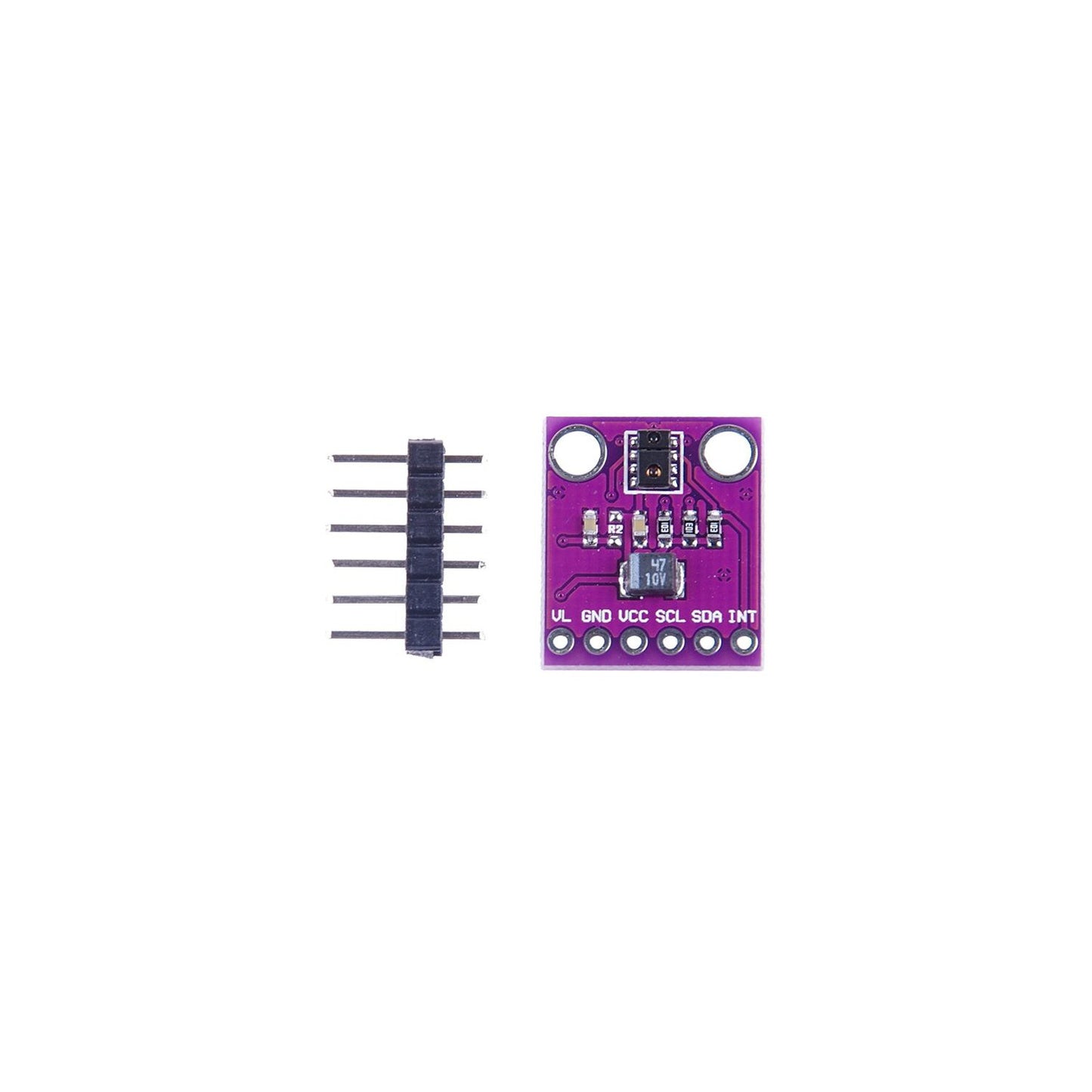

APDS-9930 RGB Infrared Gesture Sensor

APDS-9930 RGB Infrared Gesture Sensor

Regular price $11.45 AUD
Regular price Sale price $11.45 AUD
Sale Sold out
Shipping calculated at checkout.

The APDS-9930 provides digital ambient light sensing (ALS), IR LED and a complete proximity detection system in a single 8 pin package. The proximity function offers plug and plays detection to 100 mm (without front glass) thus eliminating the need for factory calibration of the end equipment or sub-assembly.

The proximity detection feature operates well from bright sunlight to dark rooms. The wide dynamic range also allows for operation in short distance detection behind dark glass such as a cell phone. In addition, an internal state machine provides the ability to put the device into a low power mode in between ALS and proximity measurements providing very low average power consumption.

The ALS provides a photopic response to light intensity in very low light conditions or behind a dark faceplate.

Features

  • Working voltage: 2.8-3.8V
  • ALS, IR LED and Proximity Detector in an Optical Module
  • Ambient Light Sensing (ALS)
  • Approximates Human Eye Response
  • Programmable Interrupt Function with Upper and Lower Threshold
  • Up to 16-Bit Resolution
  • High Sensitivity Operates Behind Darkened Glass
  • Low Lux Performance at 0.01 lux
  • Proximity Detection
  • Fully Calibrated to 100 mm Detection
  • Integrated IR LED and Synchronous LED Driver
  • Programmable Wait Timer
  • Programmable from 2.7 ms to > 8 sec
  • I2C Interface Compatible
  • Up to 400 kHz (I2C Fast-mode)
  • Dedicated Interrupt Pin
  • Sleep Mode Power: 2.2 uA Typical

Resources

  • Datasheet: https://www.makerfabs.com/desfile/files/APDS-9930_2015-11-13.pdf
  • Arduino Library: https://github.com/Davideddu/APDS9930
