Adjustable DC-DC Booster - XL6009
Adjustable DC-DC Booster - XL6009
In stock
Regular price
$4.00 AUD
Regular price
Sale price
$4.00 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

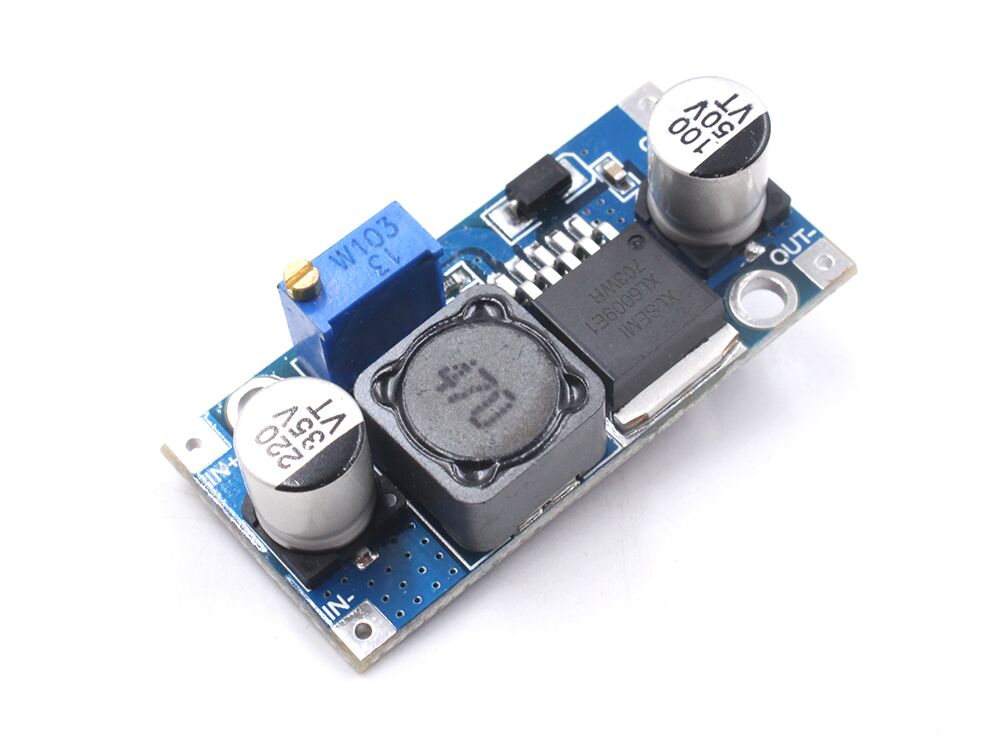

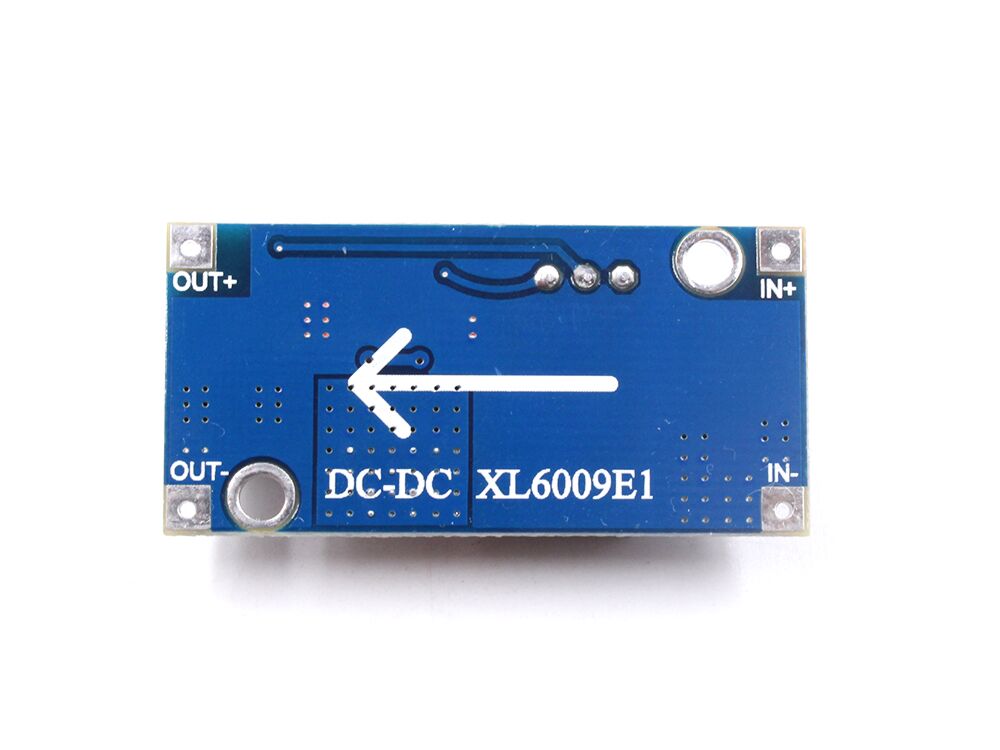

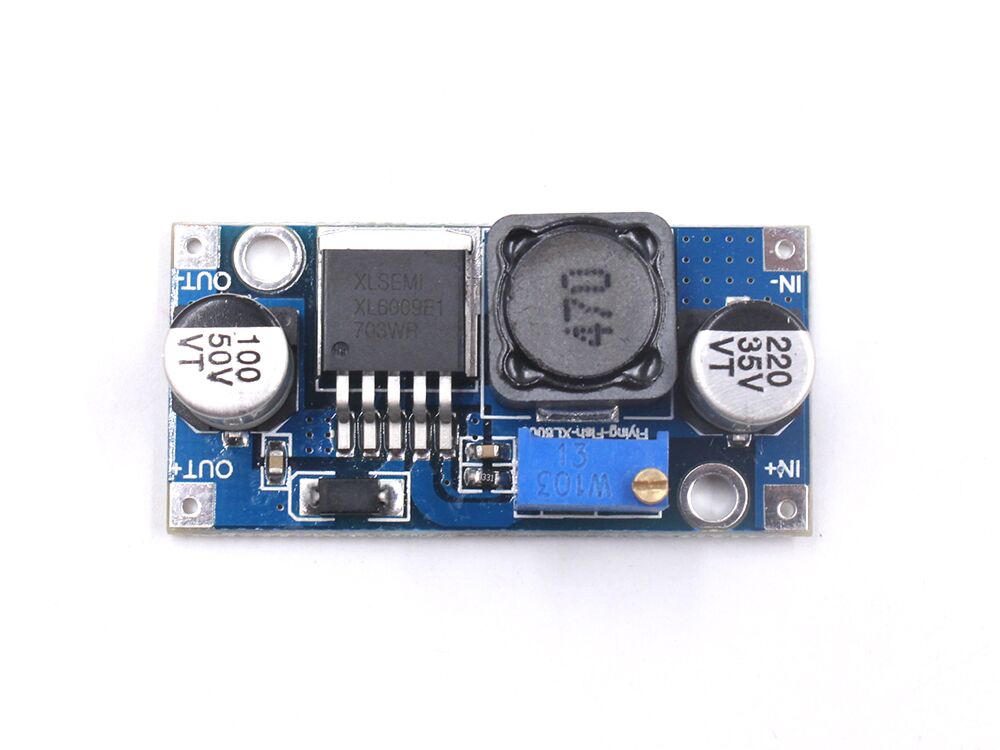

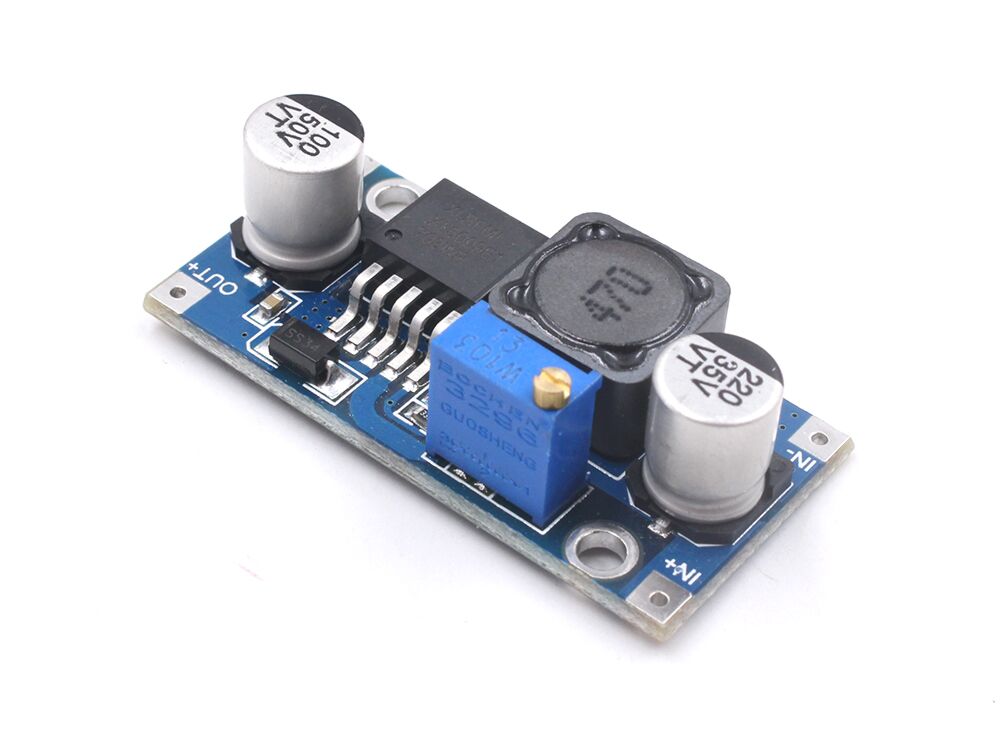

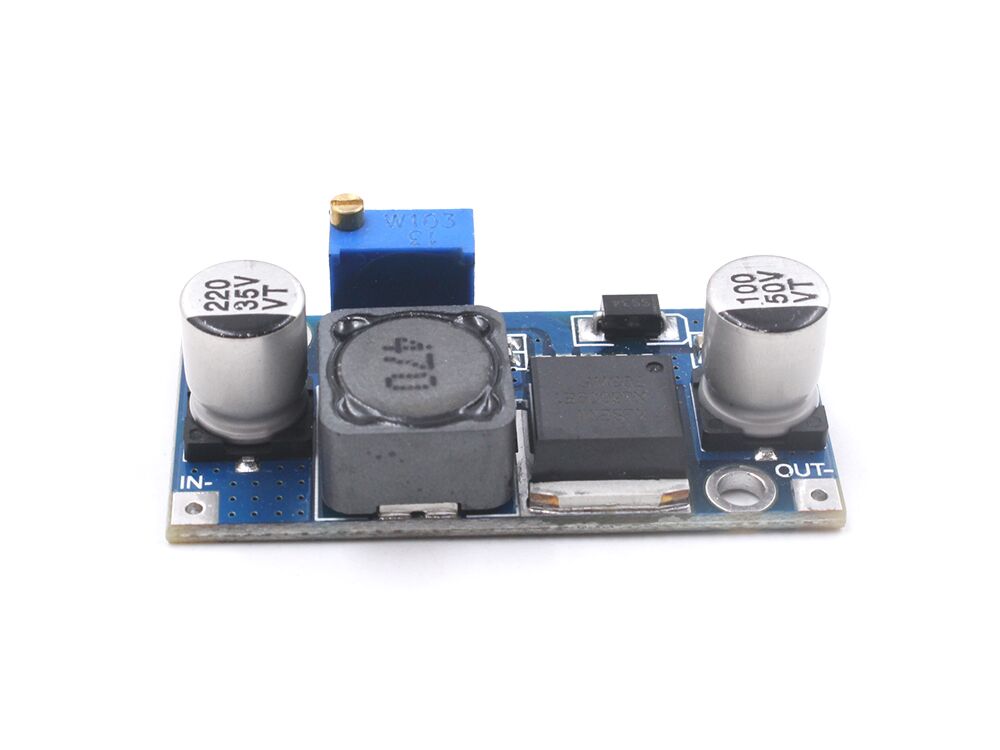

This DC-DC Module is based on IC XL6009E1 which is a high-performance step-up switching current (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip that offers superior performance over the first generation technology LM2577. XL6009 replaces the LM2577 module as LM2577 is about to be phased out.
Features
- Wide input voltage range of 3V – 32V (optimum operating voltage range is 5 – 32V)
- Wide Output voltage range of 5V – 35V (Adjustable using onboard preset)
- Built-in 4A MOSFET switches enable efficiency of up to 94% (LM2577 current is 3A)
- High switching frequency of 400KHz, can use a small-capacity filter capacitor that can achieve very good results (LM2577 switching frequency is only 50KHz)
| Specifications | Value |
|---|---|
| Type | Non-Isolated Boost (BOOST) |
| Rectification | Non-synchronous rectification |
| Input Range | 3V ~ 32V |
| Output Range | 5V ~ 35V |
| Input Current | 4A (maximum), load 18mA ( 5Vinput, 8V output, no-load is less than 18mA . The higher the voltage, the load current increases.) |
| Conversion efficiency | <94% (the greater the current, the lower the efficiency) |
| Switching frequency | 400KHz |
| Output ripple | 50mV (the higher the voltage, the greater the current, the greater the ripple) |
| Load Regulation | ± 0.5% |
| Voltage Regulation | ± 0.5% |
| Working temperature | -40 °C ~ +85 °C |
| Dimensions | 43mm * 21mm * 14mm (length * width* height) |
