70mm × 50mm Protoboard (aka Perfboard)

Overview

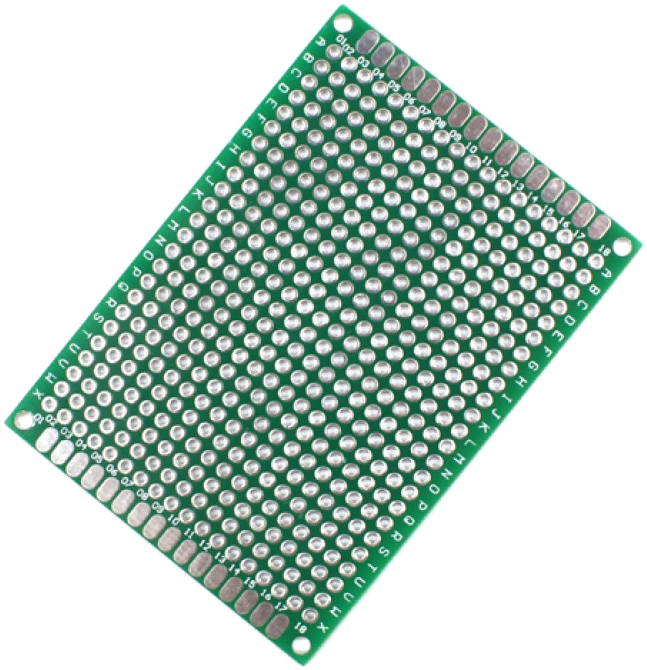

A standard FR-4 perfboard for through-hole prototyping. Each pad is electrically isolated, so you wire point-to-point as needed - giving you full layout freedom compared to strip/veroboard. The 2.54mm (0.1") hole pitch is the standard for DIP ICs, pin headers, and most common through-hole components, so everything fits without modification.

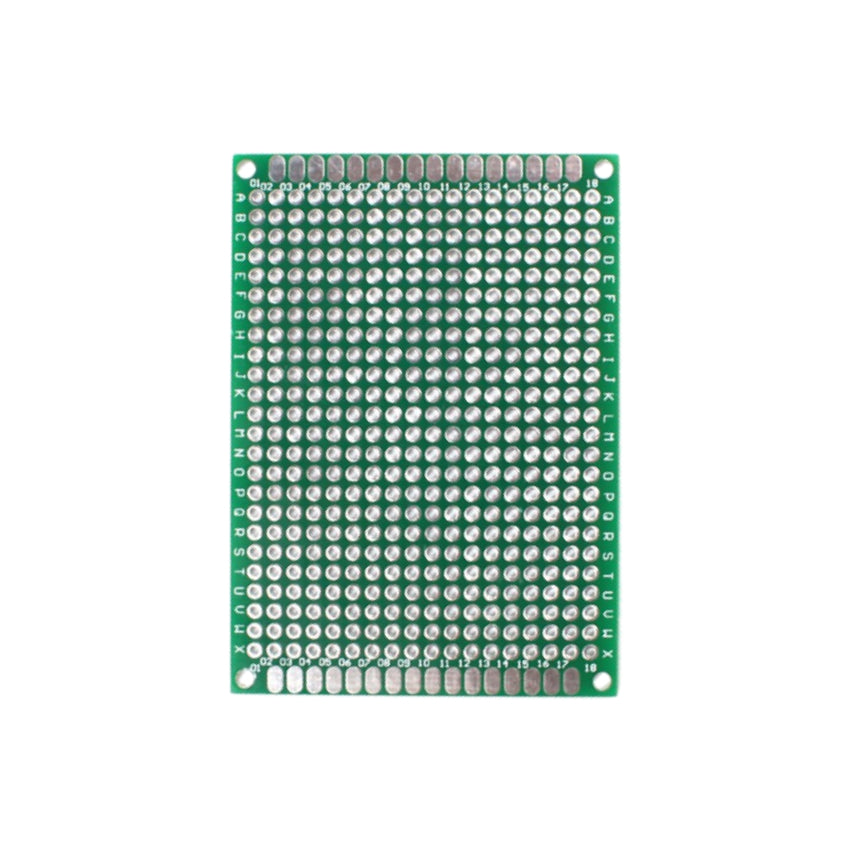

Holes are labelled A-R across and 1-24 down or A-X across and 1-18 down depending on the batch. Four corner mounting holes suit standard M3 standoffs. Available in green or blue soldermask.

Specifications

• Material: FR-4
• Colour: Green or Blue soldermask
• Type: Double-sided copper pads

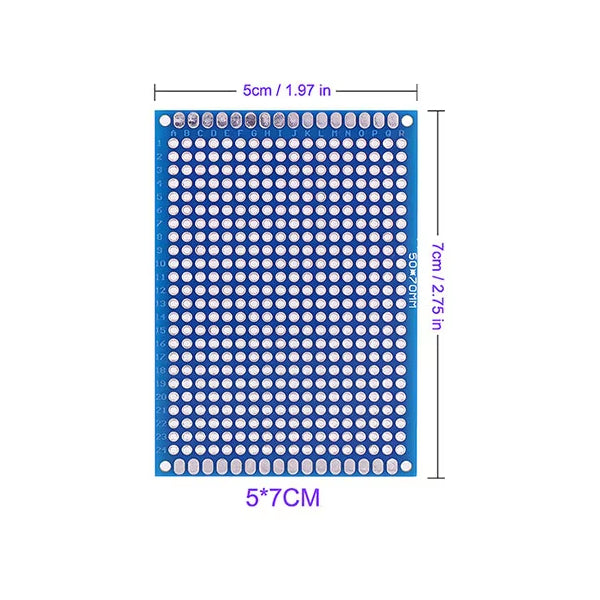

• Dimensions: 70mm × 50mm
• Thickness: 1.6mm
• Hole pitch: 2.54mm (0.1") - standard DIP/header spacing
• Hole grid: 24 × 18 (432 holes total)
• Surface finish: HASL (pre-tinned) - improves solderability and resists oxidation
• Mounting holes: 4 × corner (M2)

Note: Number and letter axis may vary; current stock has numbers on the long edge.
