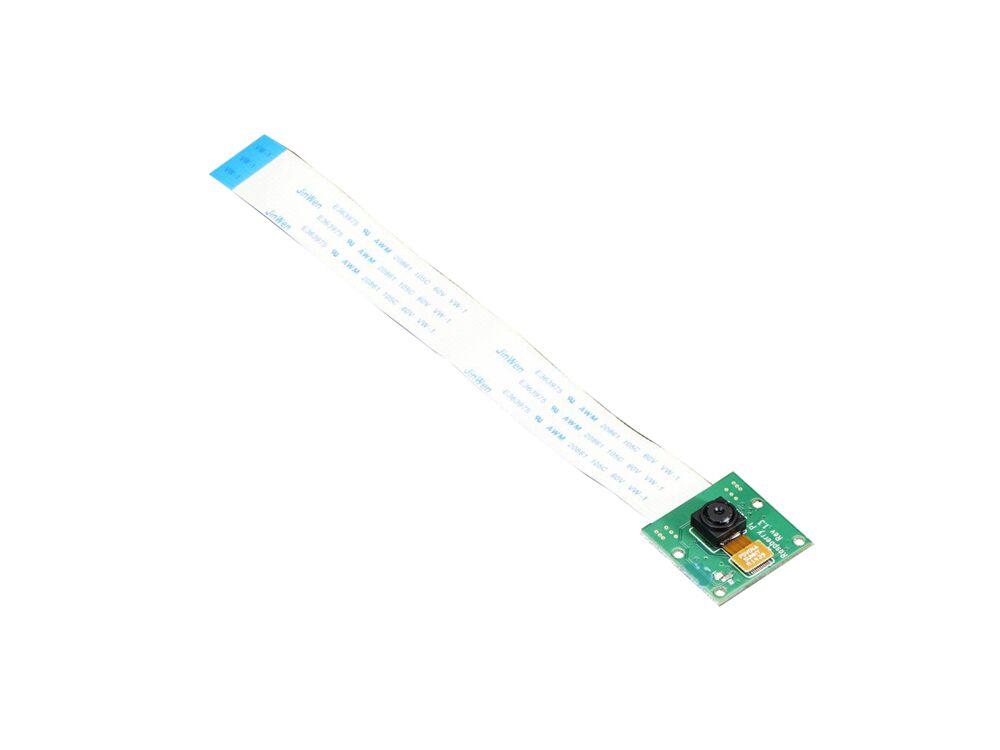

5MP SBC Camera - Designed for Raspberry Pi

This Raspberry Pi Camera Module is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing with cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.

The sensor itself has a native resolution of 5 megapixels and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.

The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system. Works with nearly all other SBCs - just check support/driver for OV5647 first if need be.

Features

• Interface: MIPI CSI 2-Lane
• Connectivity: 15 Pin FPC
• Size: 25mm x 20mm x 9mm
• HW Revision: 1.3
• Sensor: 5MP Omnivision 5647
• Focus: Fixed
• Image Resolution: 2592×1944 pixels
• Video Resolution: 1080p30, 720p60, and 640x480p60/90

Includes short FFC cable.

Resources

Users Guide: https://www.makerfabs.com/desfile/files/Raspberry%20Pi%20Camera%20unofficial%20guide.pdf
