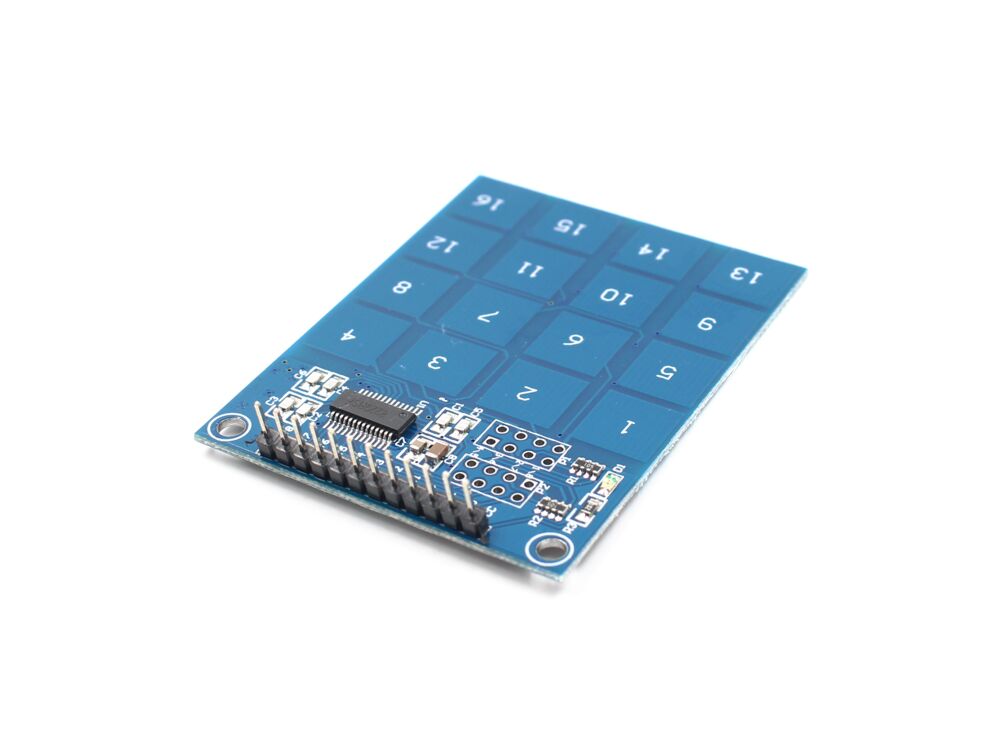

16-Channel Touch Module

This capacitive touch sensor module uses the TTP229 integrated circuit, making it easy to add capacitive touch input to your project. It features 16 sensitive touchpads that make an ideal replacement for the old fashioned keypads.

Features

• On-board 16-key TTP229 capacitive touch sensor IC
• On-board power indicator LED
• Working Voltage Range: 2.4V to 5.5V
• Configurable output mode

Resources

• Schematic: https://www.makerfabs.com/desfile/files/TTP229B-Schematic-Diagram.pdf
• IC Datasheet: https://www.makerfabs.com/desfile/files/TTP229-Capacitive-Touch-Sensor-Module-16-channels-Datasheet.pdf
