1.3 Inch Colourful TFT Module ST7789

1.3 Inch Colourful TFT Module ST7789

Low stock

Regular price $14.95 AUD
Regular price Sale price $14.95 AUD
Sale Sold out
Shipping calculated at checkout.

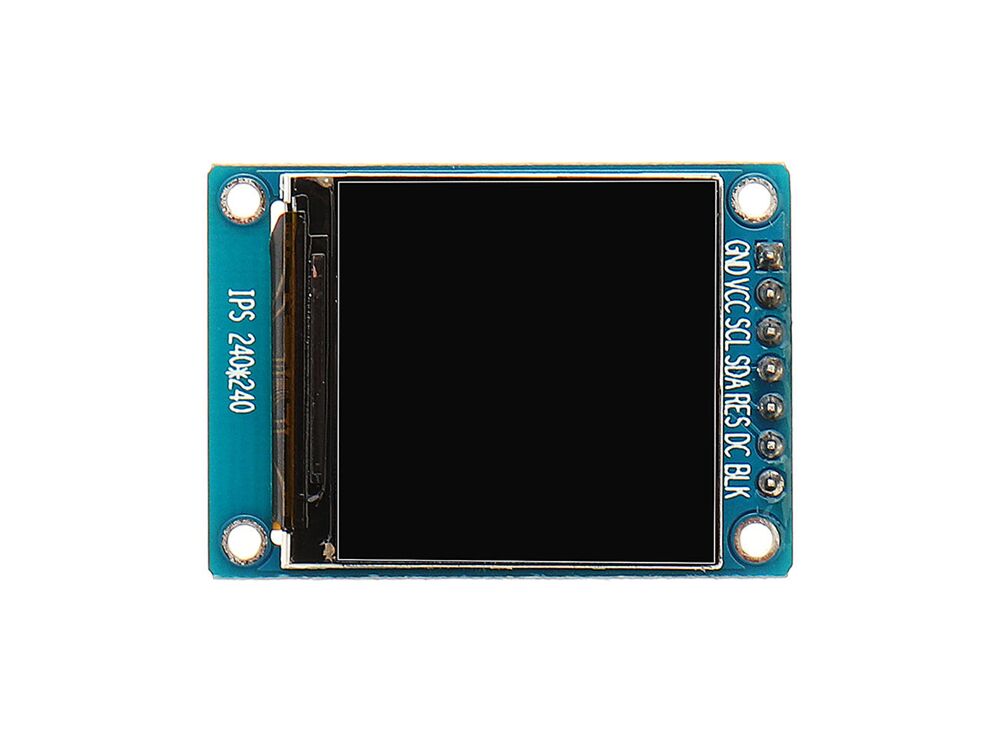

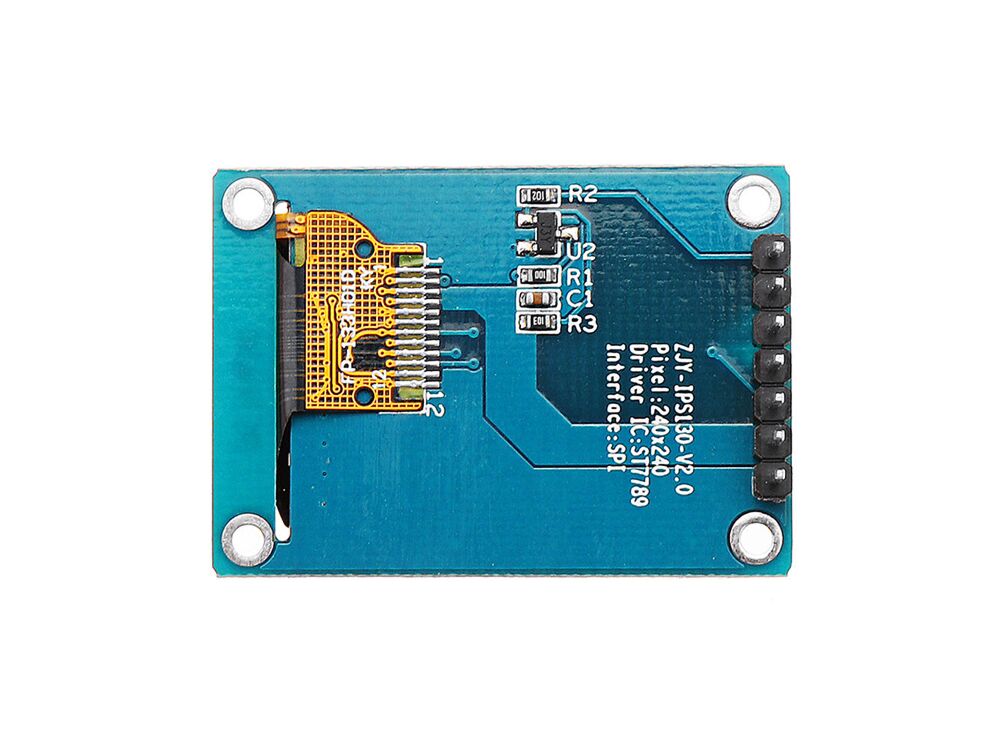

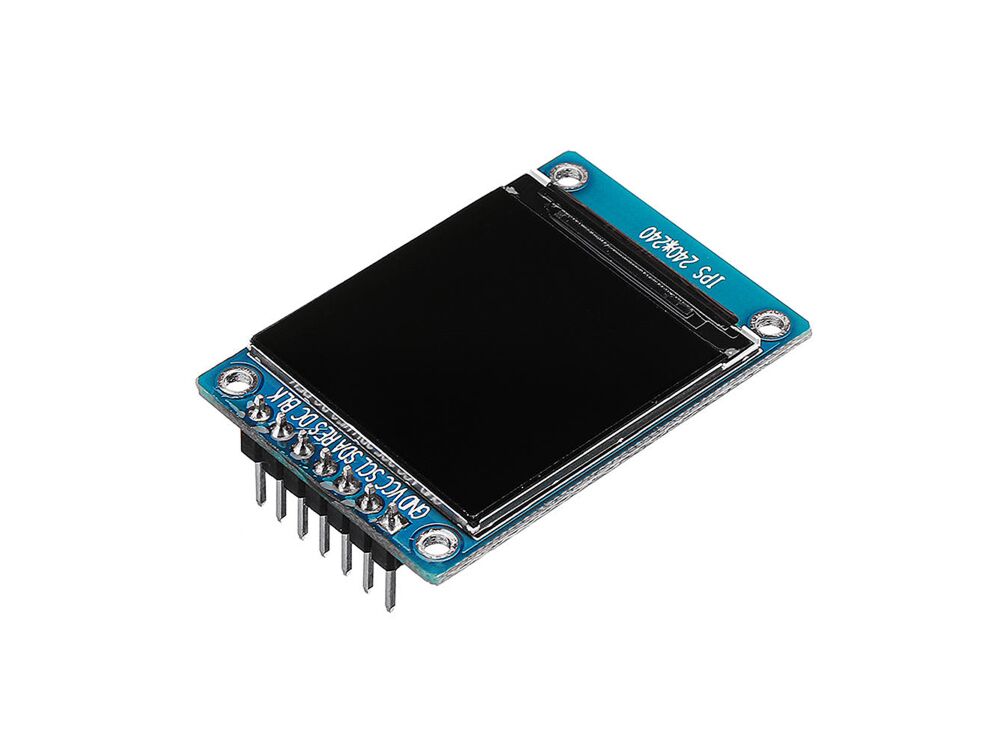

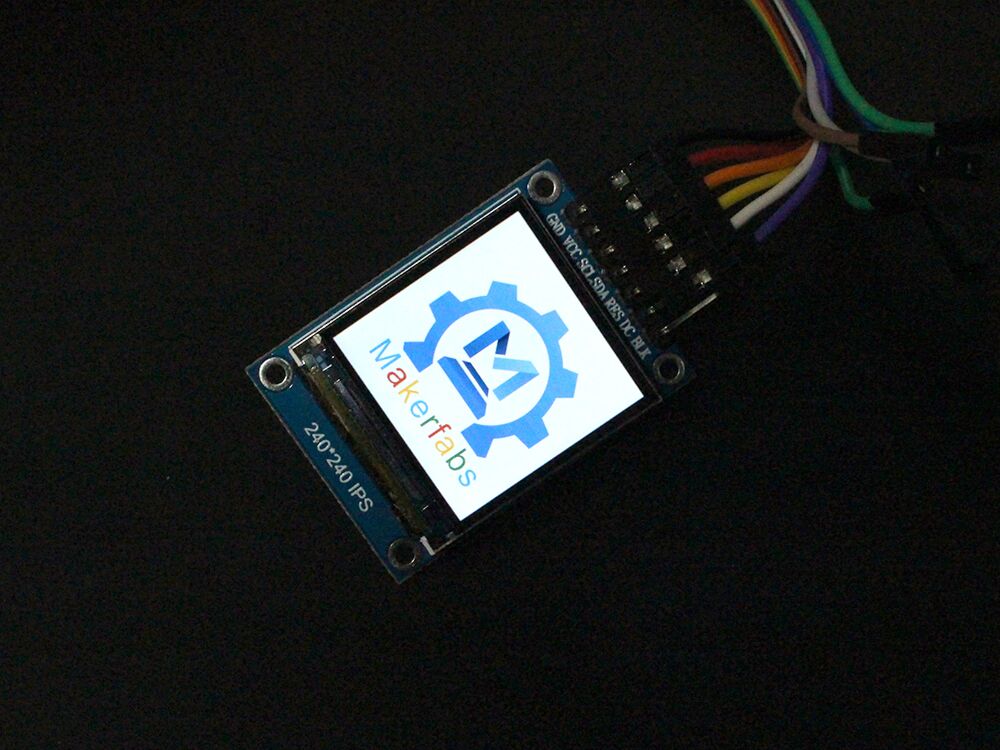

This is a 1.3" IPS LCD full-colour display with a high resolution of 240 x 240 pixels and a wide viewing angle ±80°. It is driven by ST7789, with SPI interface.

Features:

  • Size: 1.3 inch
  • Resolution: 240*240
  • Driver: ST7789
  • Display Area: 23.4x23.4mm
  • Interface: SPI 4 wires
  • Pins: 7
  • Viewing Direction: ±80°
  • Temperature: -20°C~70°C

Note: The module does not have a 3.3V regulator on it and so must be powered from 3.3V.

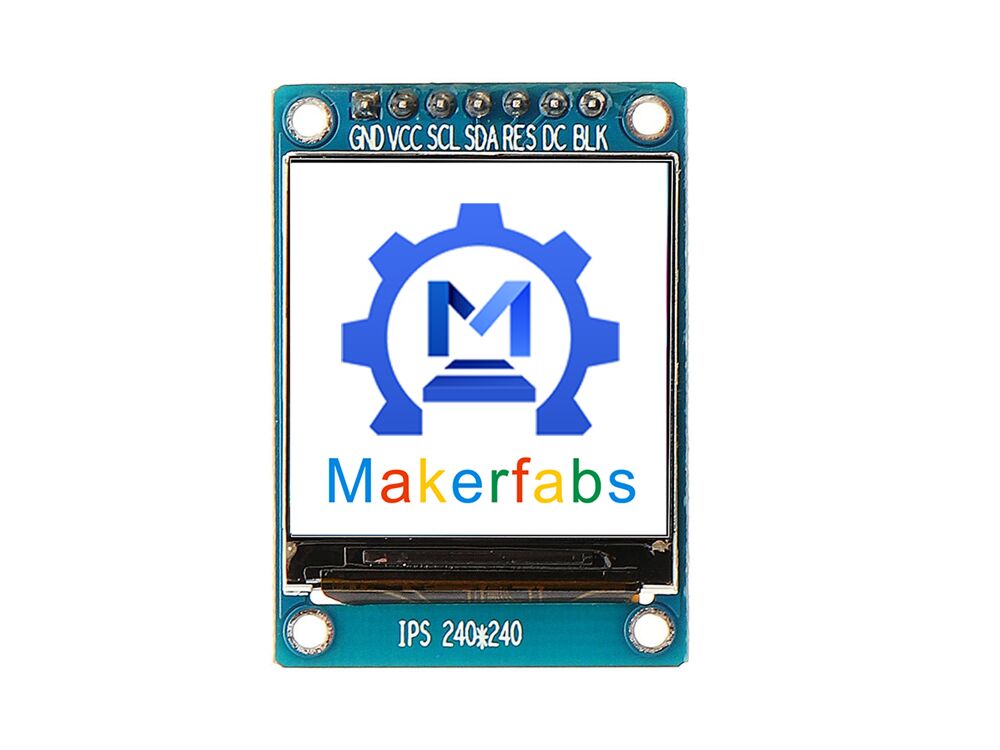

Pin Arrangements:

  • GND - Connect to system ground. This ground needs to be in common with the MCU.
  • VCC - Connect to 3.3V. This can come from the MCU or separate power supply.
  • SCL - Connects to SPI SCL (Clock)
  • SDA - Connect to SPI MOSI (Data)
  • RES - Reset for the ST7789 LCD controller. Normally HIGH, pull LOW to reset
  • DC - Data / Command. Determines type of data being sent to the display. LOW = Command, HIGH = Data
  • BLK - Backlight Control. If left unconnected, the backlight is always on. Pull LOW to turn off
