1.3" I2C OLED 128x64, Blue

1.3" I2C OLED 128x64, Blue

Regular price $19.95 AUD
Regular price Sale price $19.95 AUD
Sale Sold out
Shipping calculated at checkout.

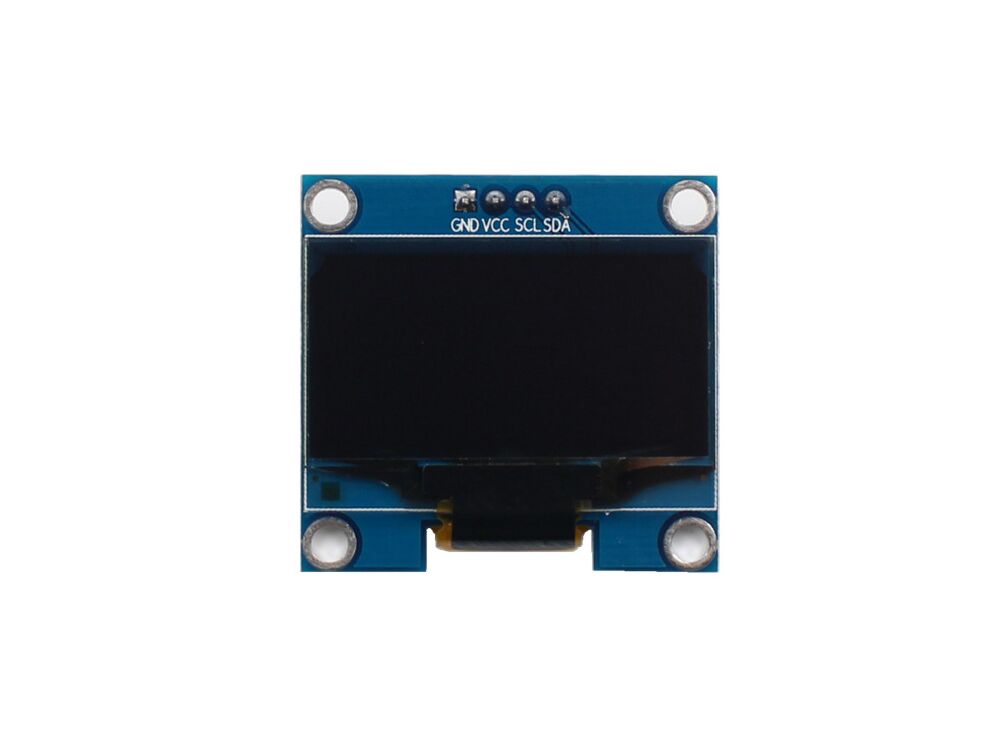

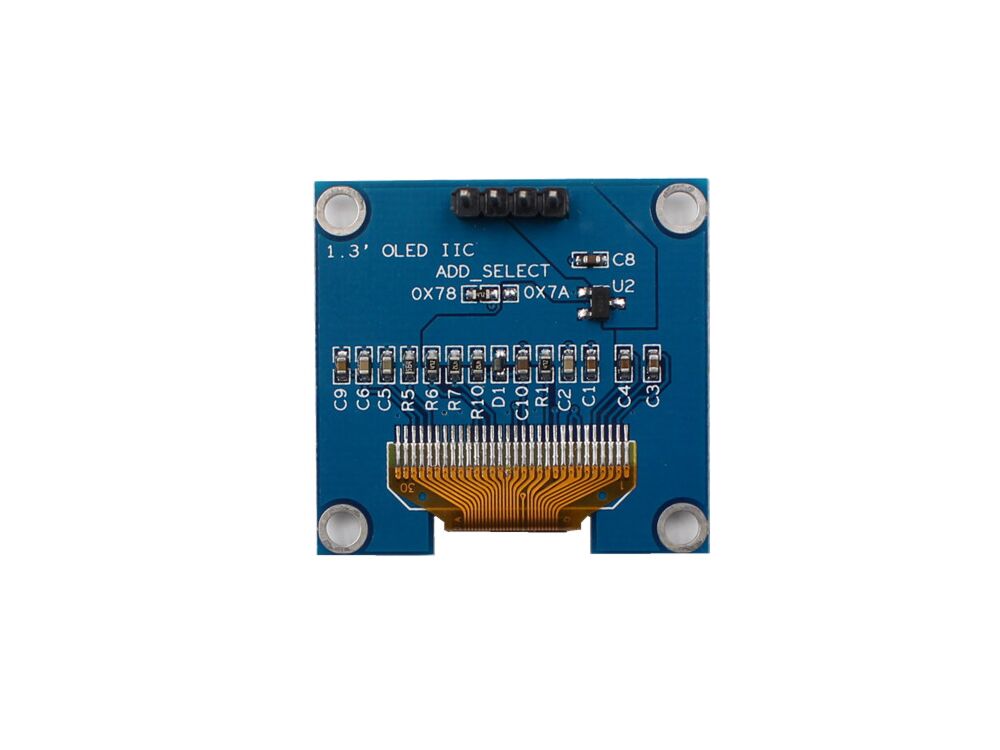

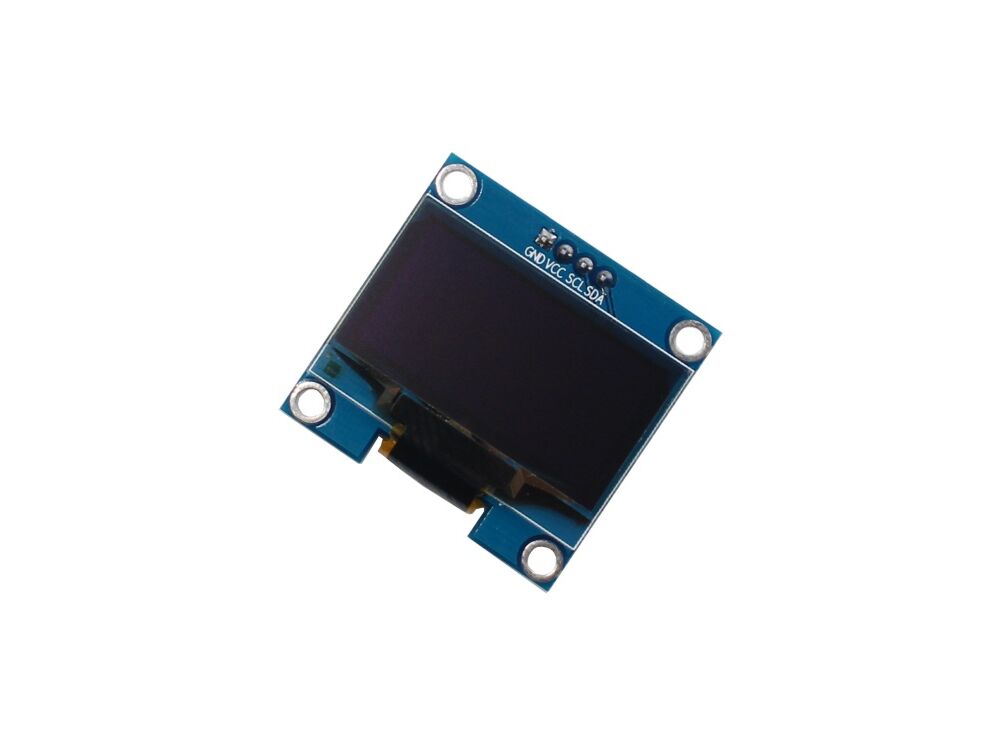

The 1.3" OLED displays are perfect when you need an ultra-small display. It is an OLED monochrome 128×64 dot matrix display module with I2C Interface. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption.

It is compatible with any 3.3V-5V microcontroller, such as the Arduino. Includes mounting holes, and headers are pre-soldered.

Specifications

  • Interface: I2C/IIC
  • Driver IC: SSH1106
  • Diagonal Screen Size: 1.3 Inch (33mm)
  • Color Depth: Monochrome (Blue)
  • Input Voltage: 3V ~ 5V DC
  • Resolution: 128*64
  • Working Temperature: -40 to 70C
