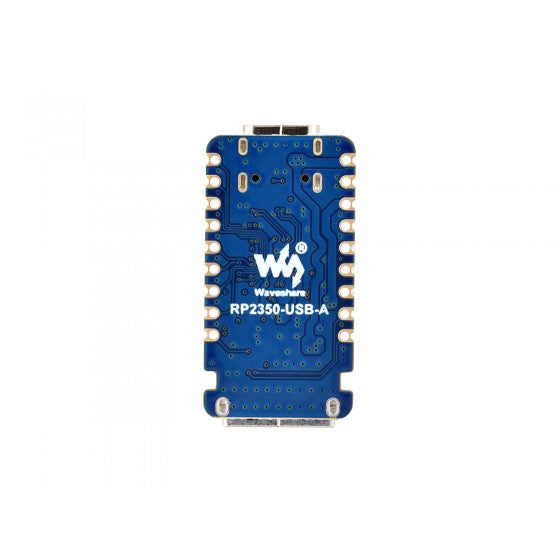

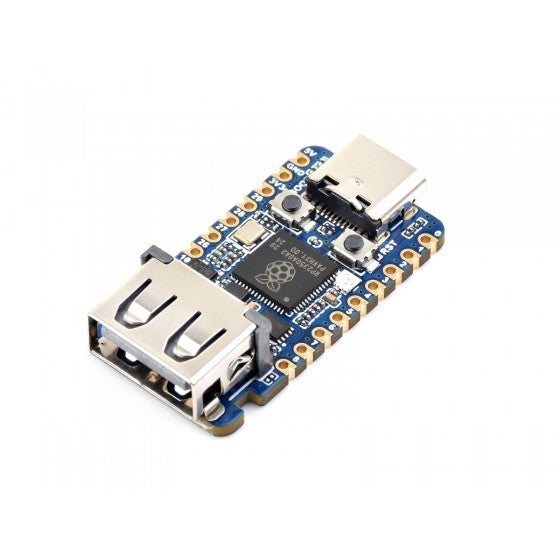

Waveshare RP2350A USB Mini Development Board

Name: Waveshare RP2350A USB Mini Development Board
Brand: Waveshare
SKU: 30274
Price: 8.00 AUD
Availability: InStock

In stock

$8.00 AUD

Sale Sold out

Shipping calculated at checkout.

Castellated module, suitable for SMD applications

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
520KB of SRAM, and 2MB of onboard Flash memory
Type-C connector, keeps it up to date, easier to use
Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support
Onboard 1x USB Type A expansion port via PIO, compatible with USB 2.0/1.1 transmission
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Adapting 15 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 14 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 × Programmable I/O (PIO) state machines for custom peripheral support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz

configurable pin function, allows flexible development and integration

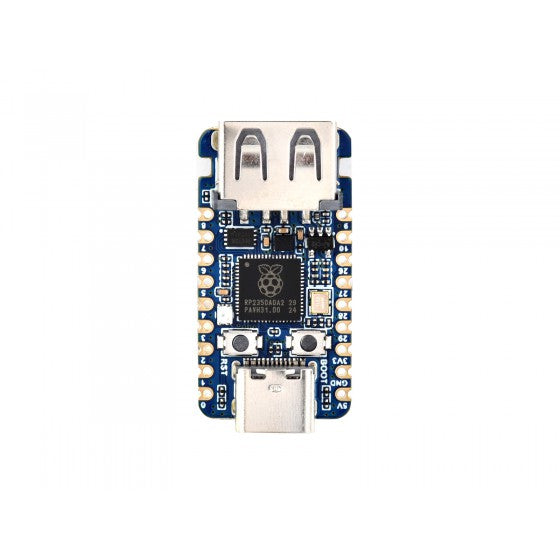

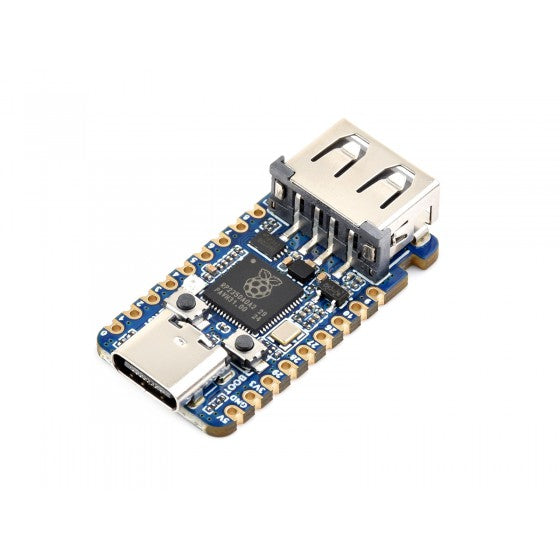

USB 2.0 Type A connector
Supports USB host or device via PIO
BOOT button
Press it when resetting to enter download mode
RESET button
RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency
WS2812
cool RGB LED
RT9013-33GB
500mA LDO regulator, low noise, ultra-fast response
W25Q16JVUXIQ
2MB NOR-Flash
USB Type-C connector
for programming, USB 1.1 with device and host support
