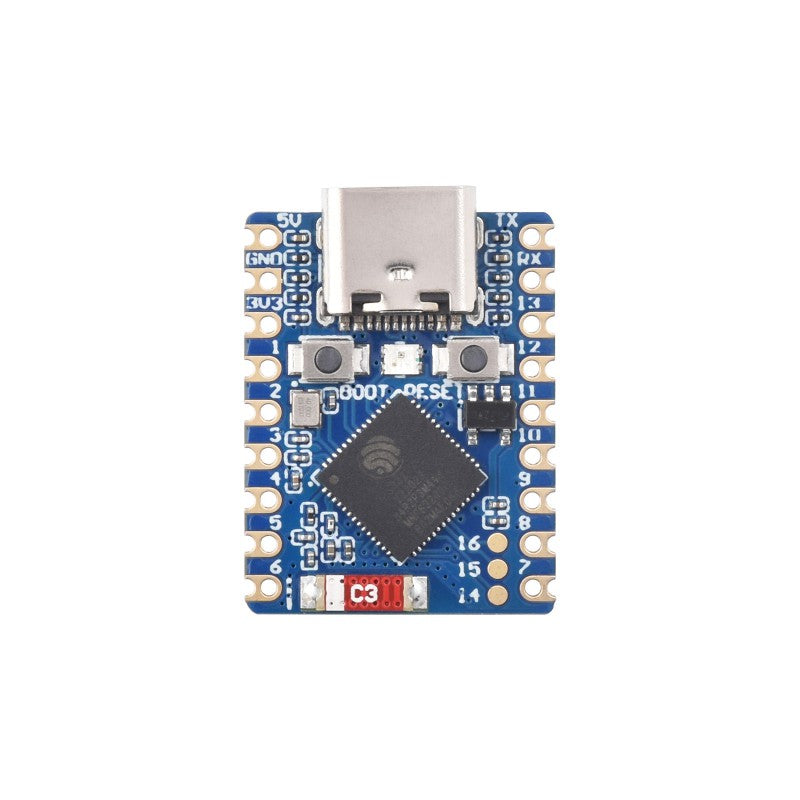

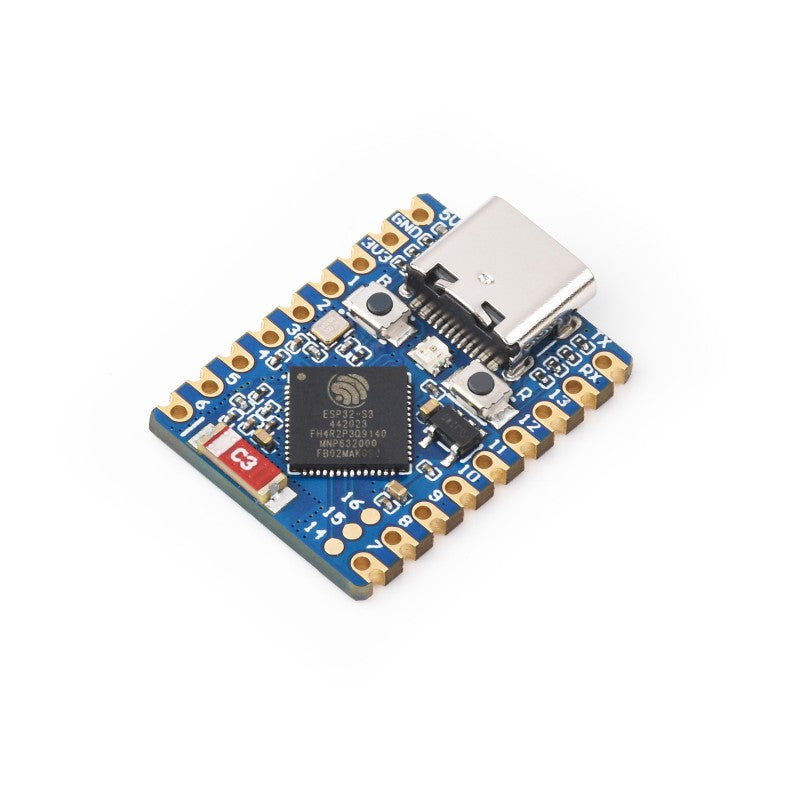

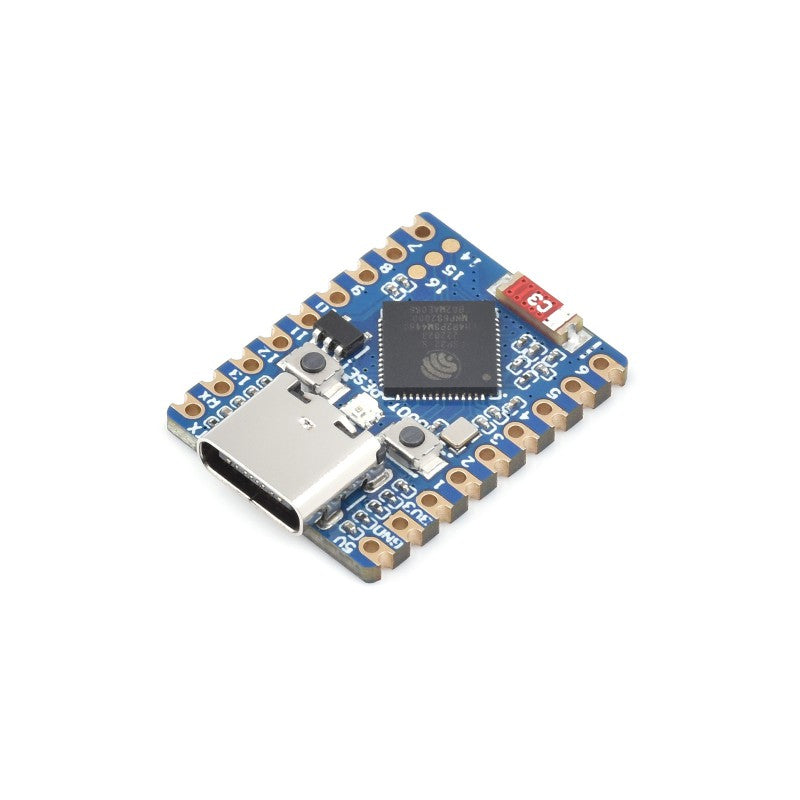

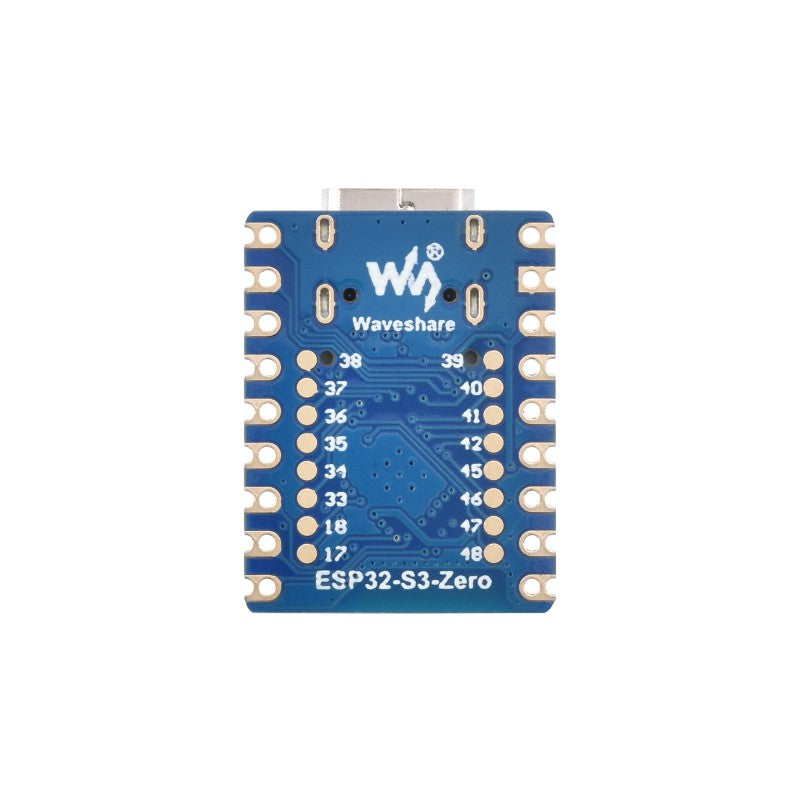

Waveshare ESP32-S3-Zero Development Board

Based on ESP32-S3FH4R2, onboard multi-function GPIO pins. Castellated Module, Suitable For SMD Applications.

Board Specifications

• Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
• Built in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM
• Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
• Integrated with USB serial port full-speed controller, 24 × GPIO pins allows flexibly configuring pin functions
• 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.


What's On Board

Pin Definition

Outline Dimensions

Documentation
