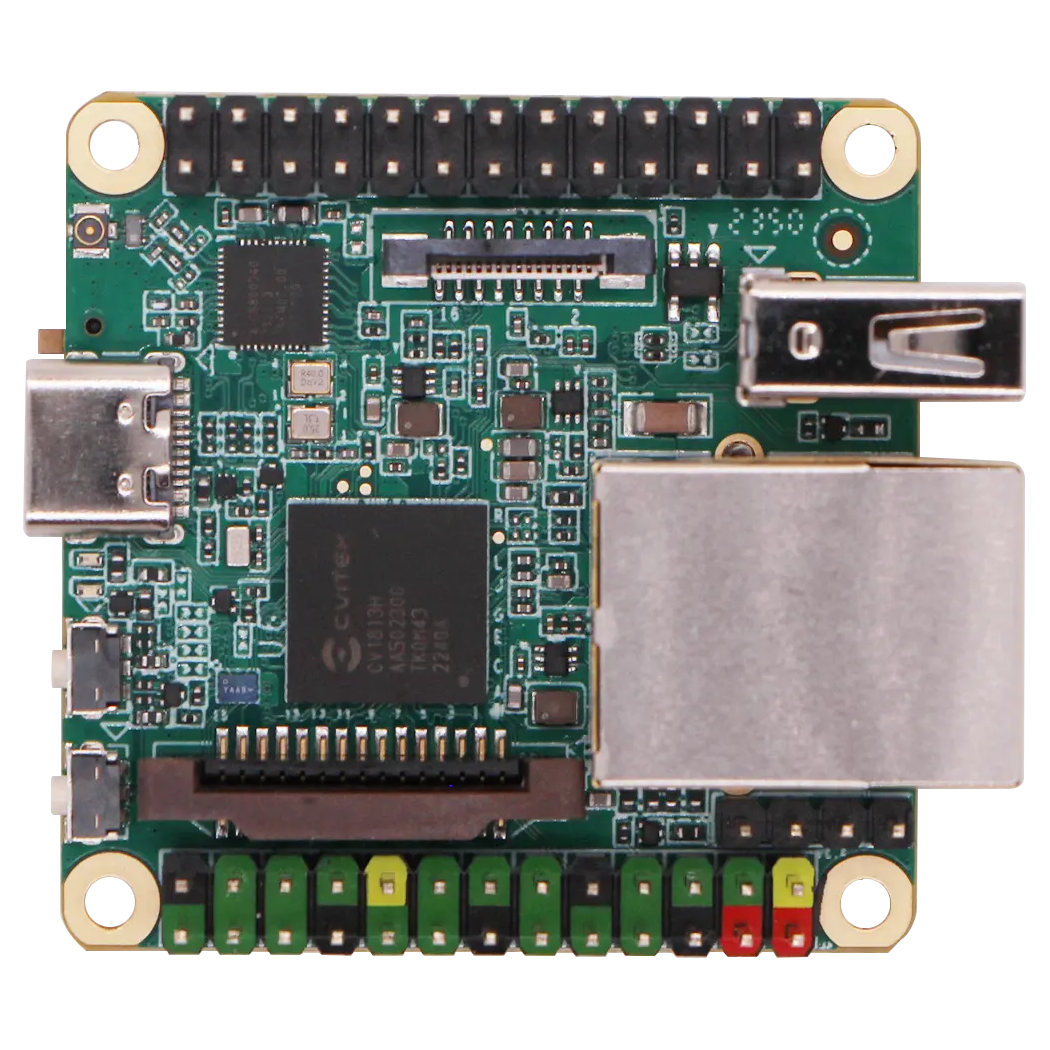

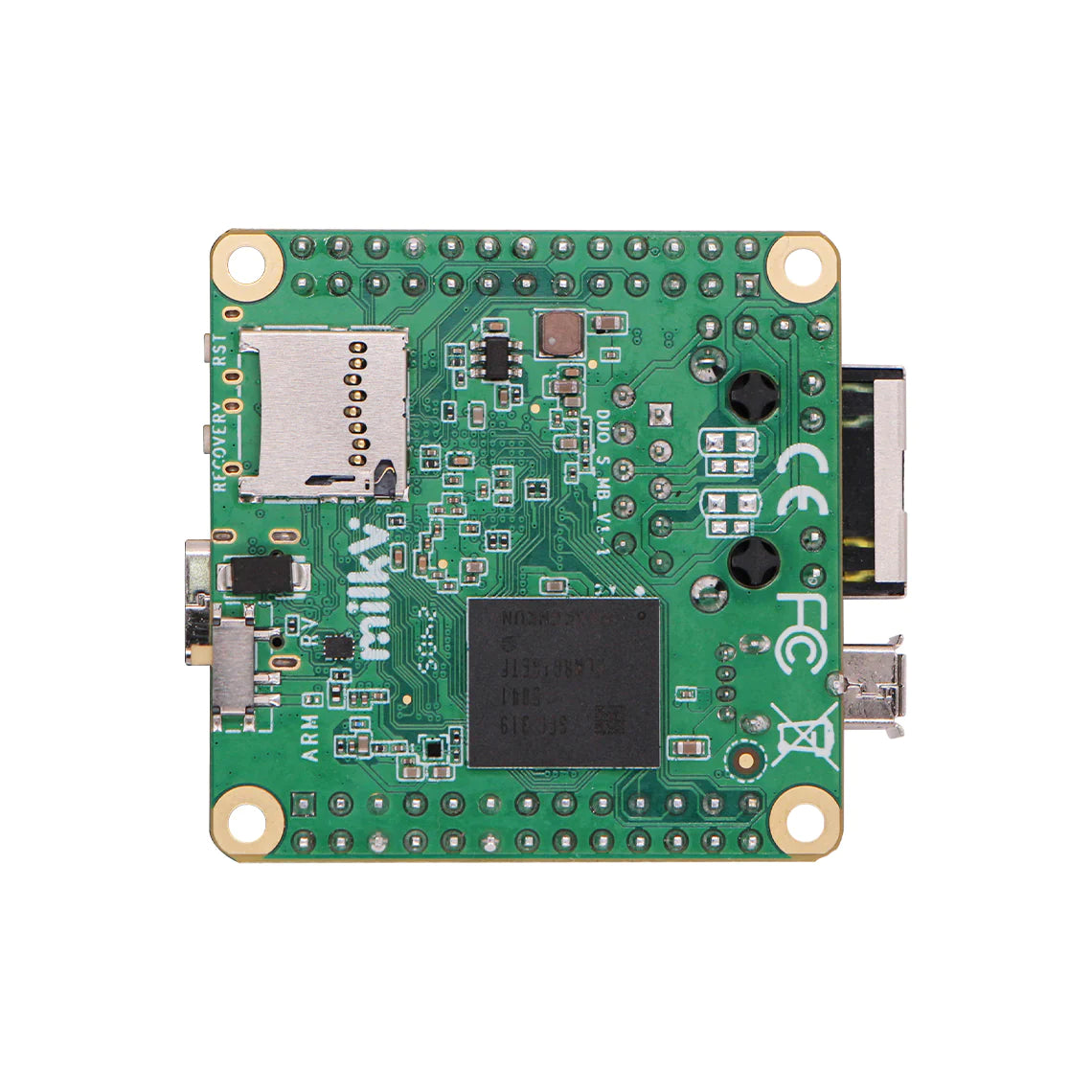

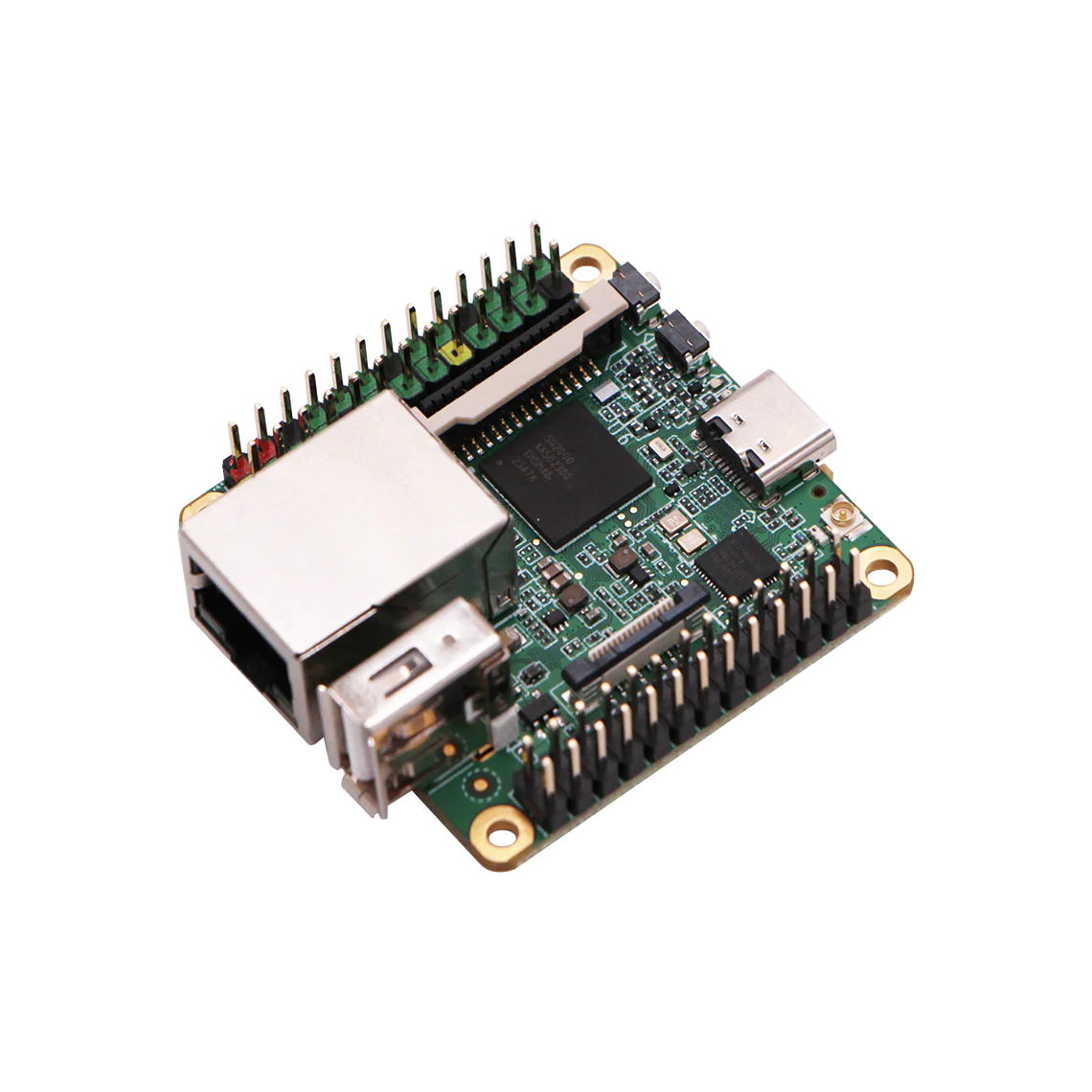

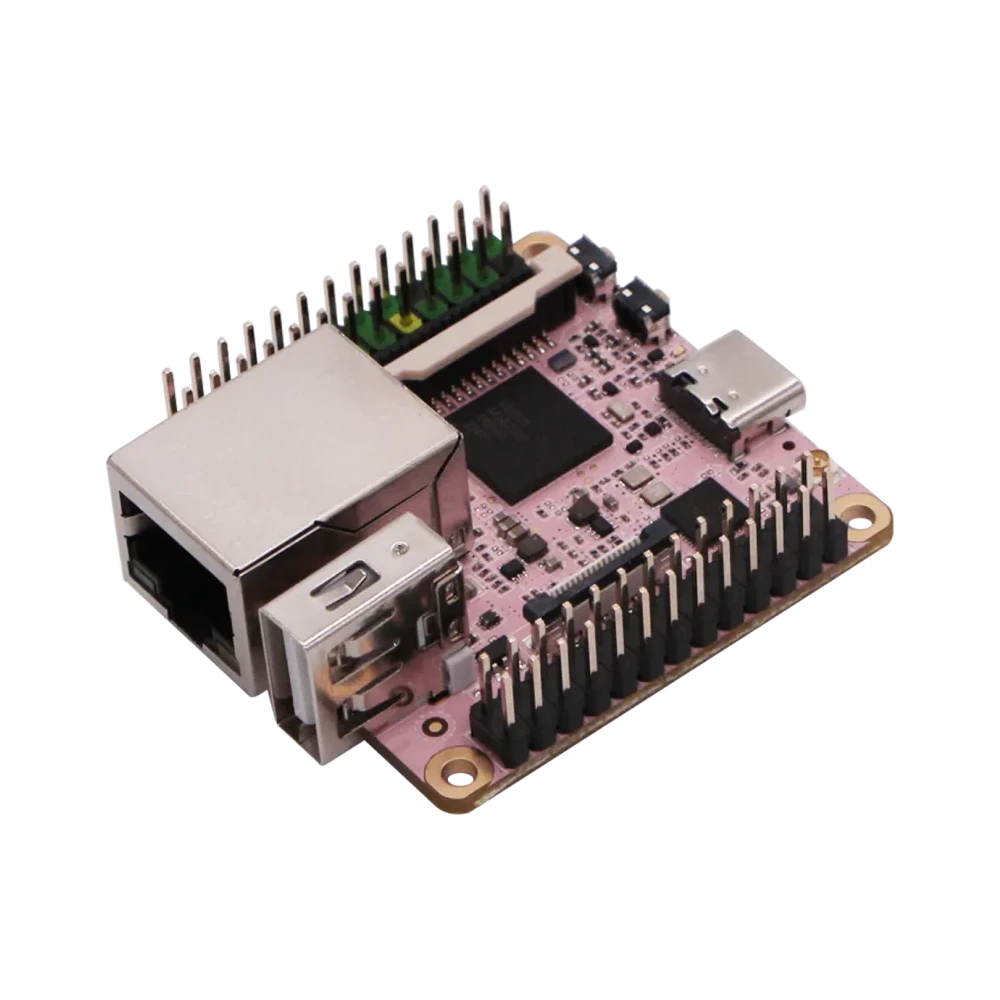

Milk-V Duo S (512M) - 1GHz Dual-Core RISC-V + ARM + 8051 SBC
Milk-V Duo S (512M) - 1GHz Dual-Core RISC-V + ARM + 8051 SBC
Low stock
Couldn't load pickup availability
Overview
Compared to the Duo Classic (64M) This variant has more RAM (DDR3 instead too), audio support, an extra processor core, eMMC support, USB 2.0 Type A in in Host mode, and additional 15P MIPI CSI 2-lane port, DSI 4-lane via GPIO, 100Mbps ethernet onboard, Wi-Fi 6 and Bluetooth 5, 39 GPIOs, and boot/recovery/reset buttons. All models have an microSD card slot.
Note: The 'PoE' variant does not come with with PoE, but has a 48V-compatible RJ45 jack and the required header pins to use a PoE HAT when they become available. We are continuing to follow-up with Milk-V on the availability of such add-ons.
Specifications
- SG2000 Dual-Core RV64 Processor, with
- Dual C906 RV64 Cores (1GHz and 700MHz)
- ARM Cortex-A53 Core (1GHz)
- 8051 6KB MCU
- 0.5 TOPs (Int8) TPU
- 5M @ 30FPS ISP
- 512MB DDR3 RAM
- USB 2.0 Type-A Host Port
- TF/microSD & SPI
- 10/100 Ethernet Onboard

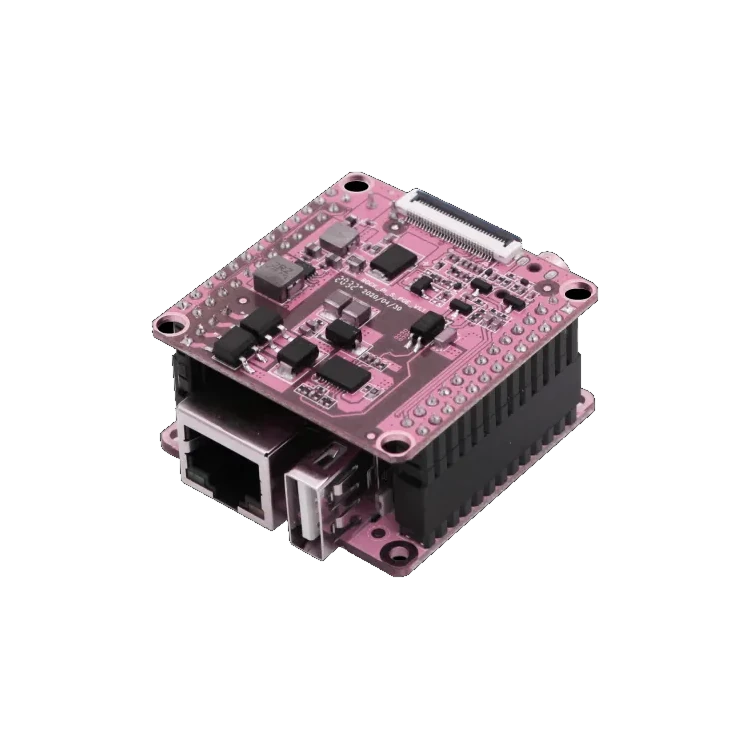

- PoE HAT (OPTIONAL)
- Wifi 6 & Bluetooth 5 (OPTIONAL)
- 8GB eMMC Onboard (OPTIONAL)
- 2x MIPI CSI 2-Lane
- 1x MIPI DSI 4-Lane
- 39 GPIOs
- USB-C Power and Data
- 5V Input
- 3.3V 2A Output
- Low Battery Detection
- CSI 2-Lane MIPI
- Audio via GPIO Pads
- Hardware H.264/H.265 Encoding
- I2C, ADC, PWM, UART, SPI, SDIO, and JTAG Support
- Header Pins Pre-Soldered
- 43x43mm Form Factor
Camera Module: https://shop.plati.ma/products/milk-v-cam-gc2083-camera-module-for-duo-hw-v1-1
Documentation: https://milkv.io/docs/duo/getting-started/duos
NOTE: No SD card or cables are included. Colour is random!
