ESP32-CX Riser v1.1 - Blank

ESP32-CX Riser v1.1 - Blank

Regular price $3.50 AUD
Regular price Sale price $3.50 AUD
Sale Sold out
Shipping calculated at checkout.

Overview

A blank version of the version 1.1 board which you can see here; https://www.hackster.io/platimatinkers/esp32-cx-riser-board-c0f530 or https://github.com/platima/ESP32-CX-Riser.

YouTube video about it: https://youtu.be/GJxwWLoLuj8.

Specifications

  • Size: 16x16mm
  • Thickness: 1.0mm
  • Material: FR4
  • Weight: Nearly nothing
  • Colour: Black
  • Finish: HASL (w lead)
  • Copper: 0.5oz inner, 1oz outer
  • Pins:

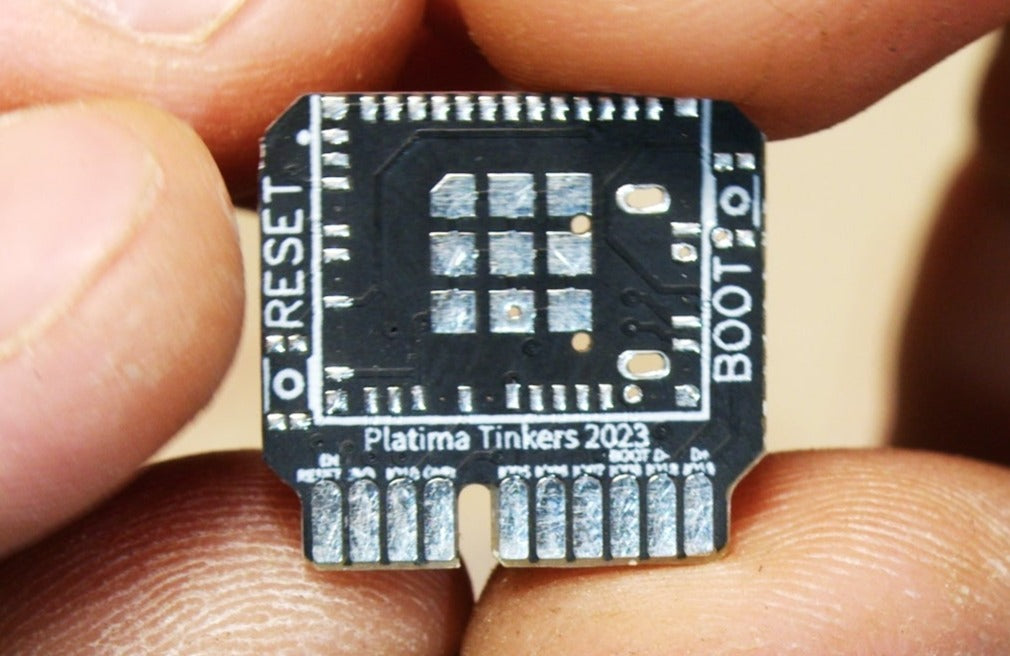

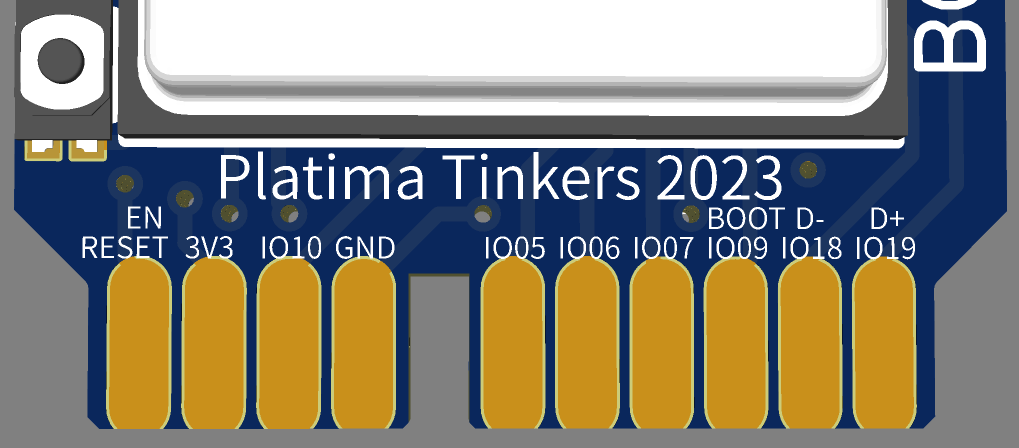

    • ESP Side: EN/Reset, 3.3V, IO10, GND, Key, IO05, IO06, IO07, IO09 (BOOT), IO18 (USB D-), IO19 (USB D+)

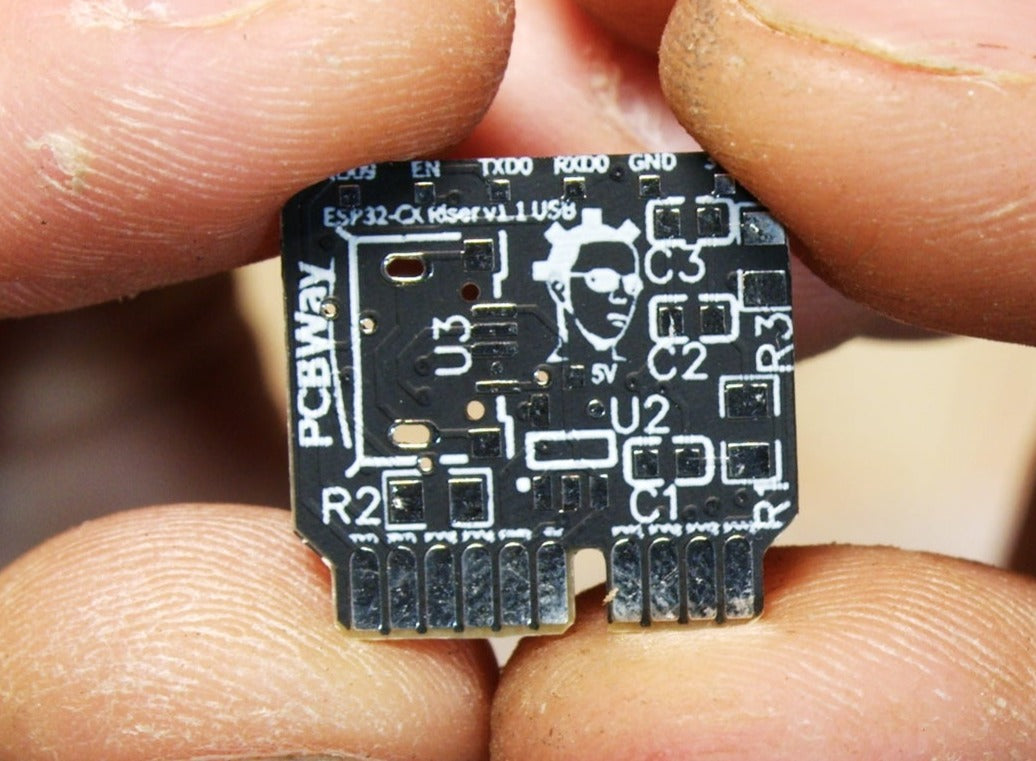

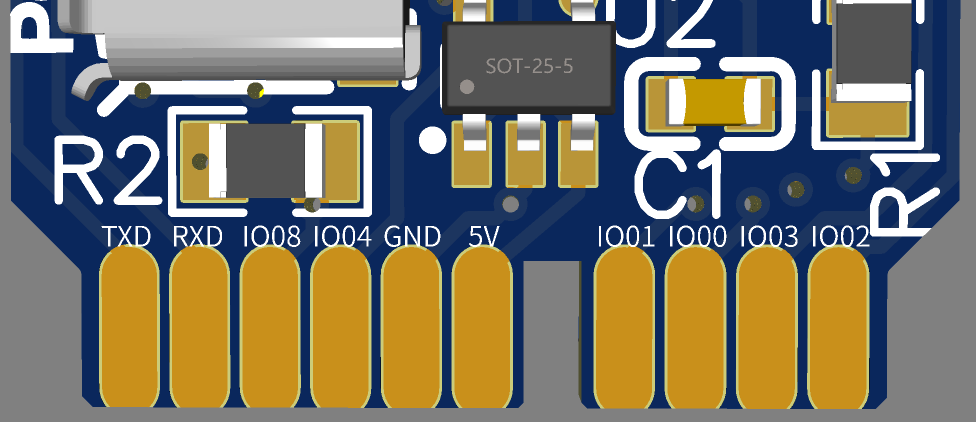

    • Component Side: TXD, RXD, IO08, IO04, GND, 5V, IO01, IO00, IO03, IO02
