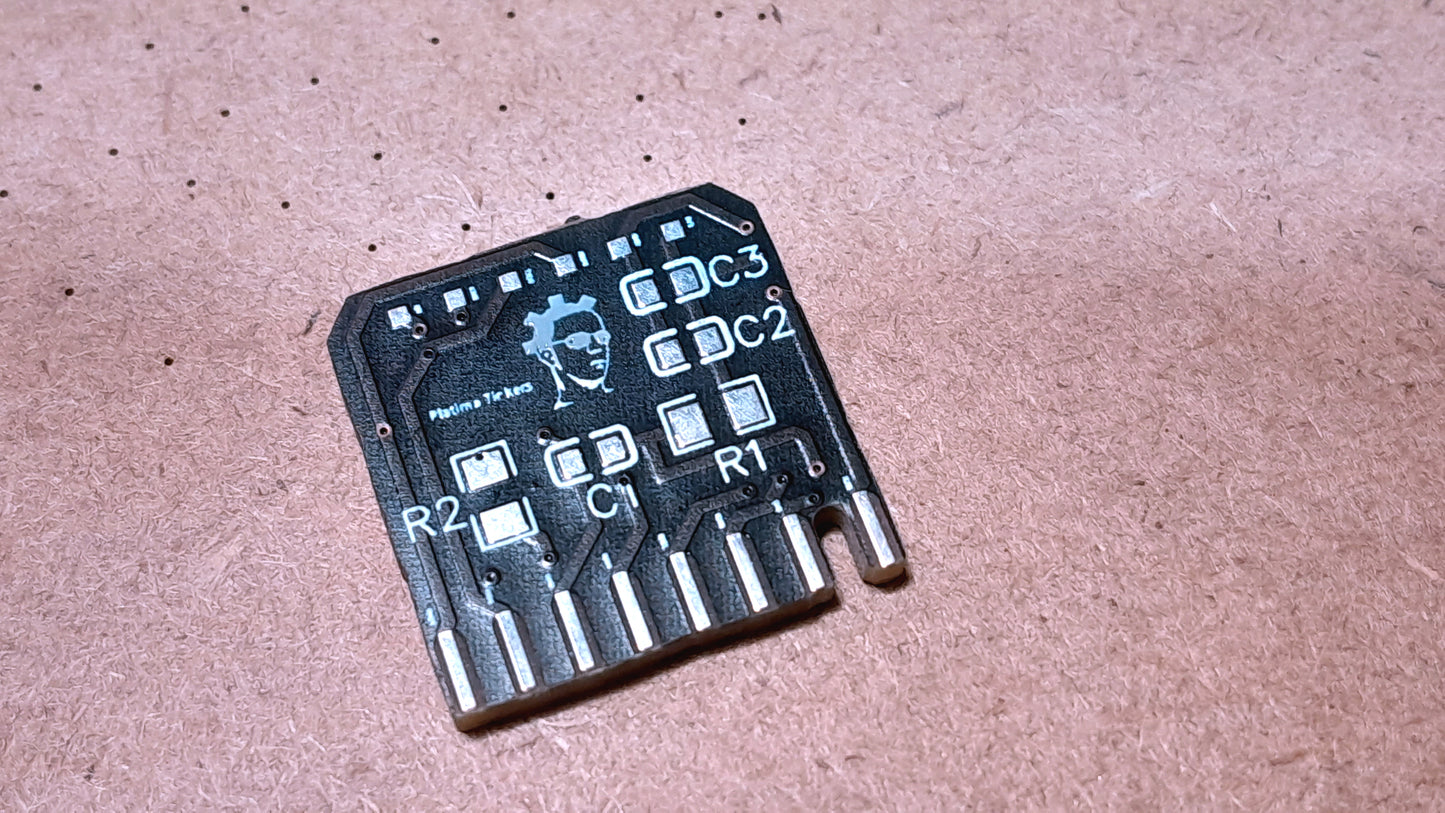

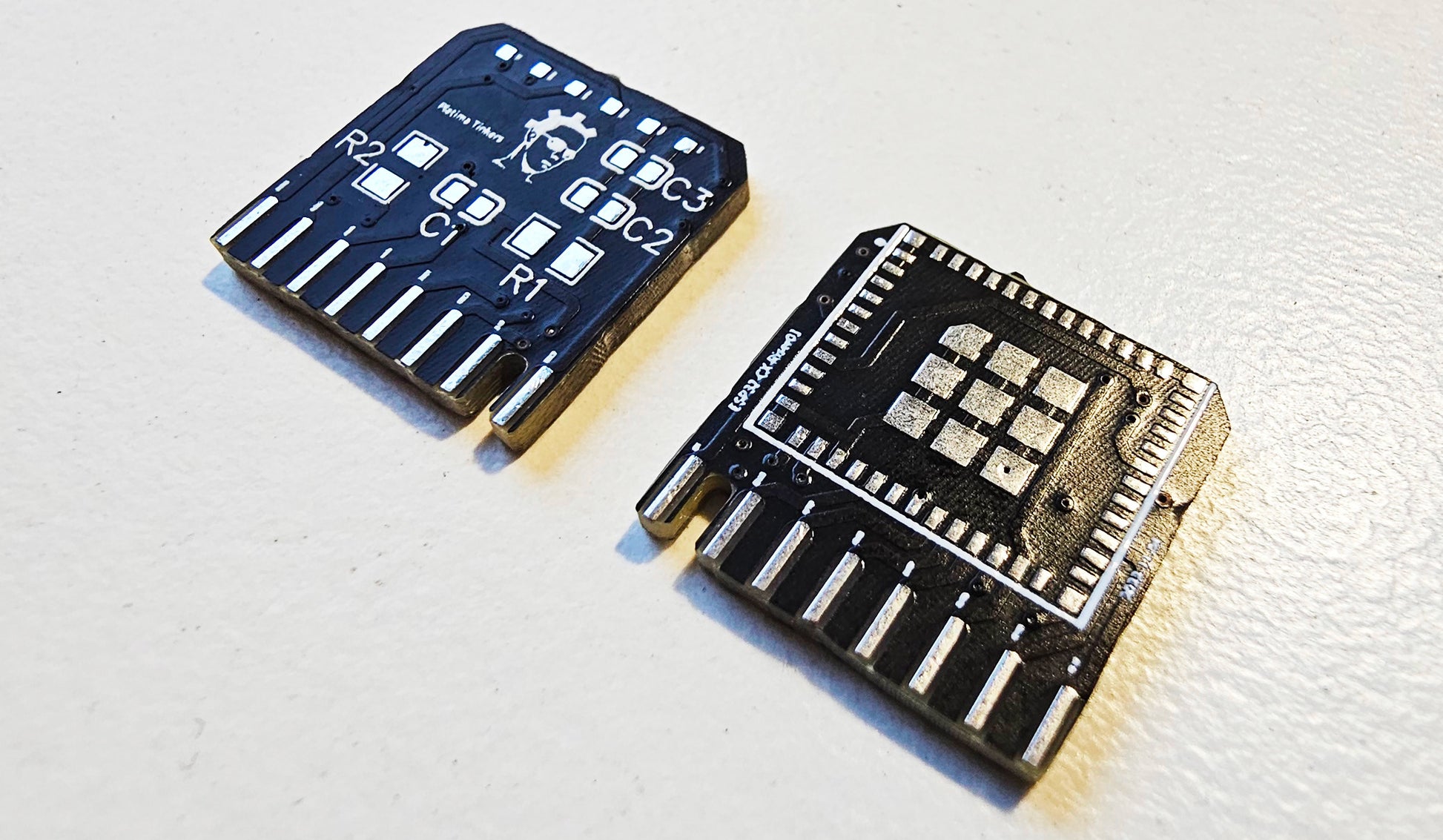

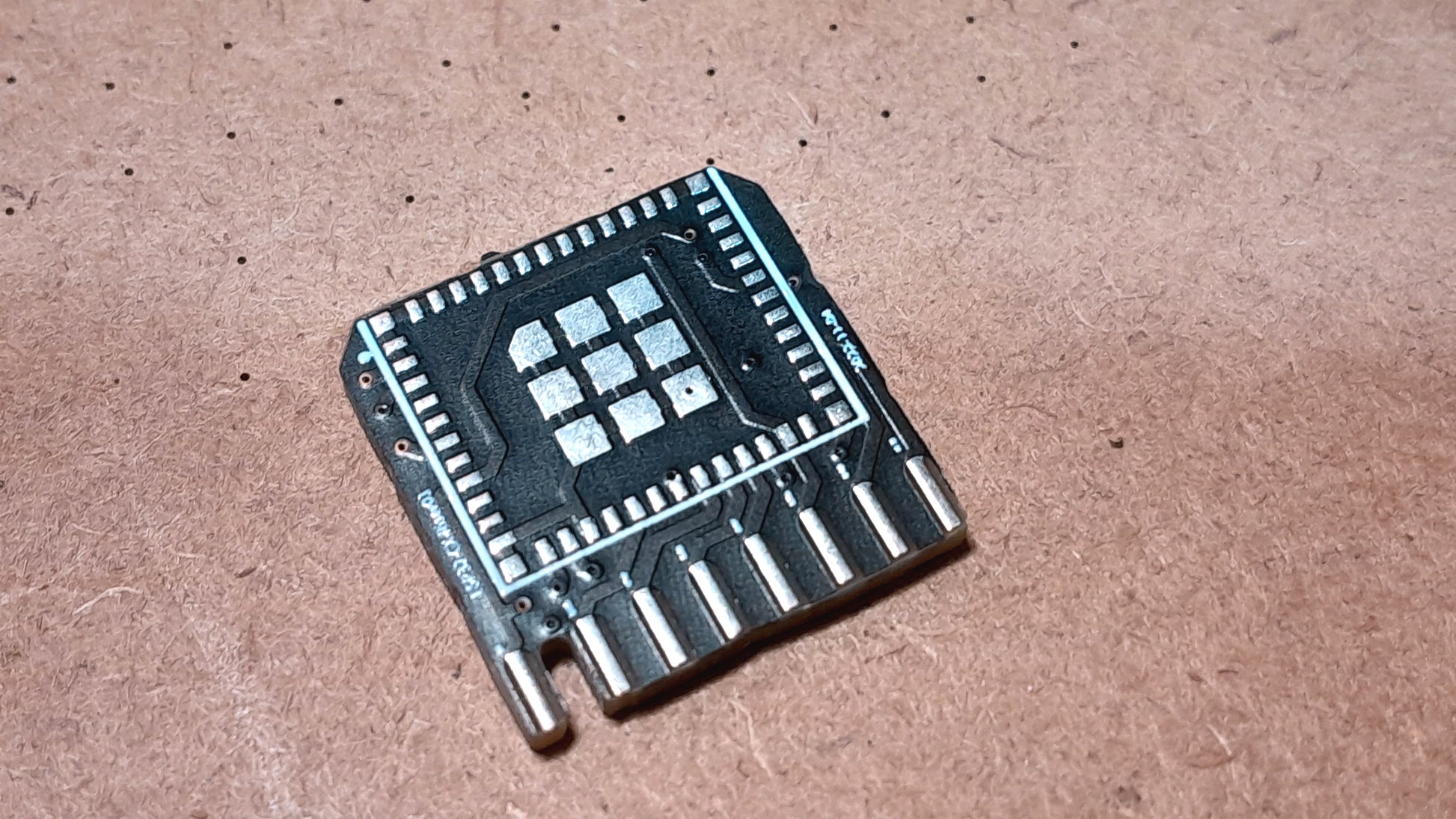

ESP32-CX Riser v1.0 - Blank

ESP32-CX Riser v1.0 - Blank

Low stock: 1 left

Regular price $3.00 AUD
Regular price Sale price $3.00 AUD
Sale Sold out
Shipping calculated at checkout.

Overview

A blank version of the version 1.0 board which you can see here; https://www.hackster.io/platimatinkers/esp32-cx-riser-board-c0f530 or https://github.com/platima/ESP32-CX-Riser.

YouTube video about it: https://www.youtube.com/watch?v=cpVlW9d6p8c.

Specifications

  • Size: 16x16mm
  • Thickness: 1.6mm
  • Material: FR4
  • Weight: Nearly nothing
  • Colour: Black
  • Finish: HASL (w lead)
  • Copper: 0.5oz inner, 1oz outer
  • Pins:
    • ESP Side: EN, Key, IO10, IO05, IO06, IO07, IO09, IO18, IO19
    • Component Side: RXD0, TXD0, GND, IO04, IO01, IO00, 3V3, Key, IO03
